Rear Seat

REAR SEAT ASSEMBLY

REMOVAL AND INSTALLATION

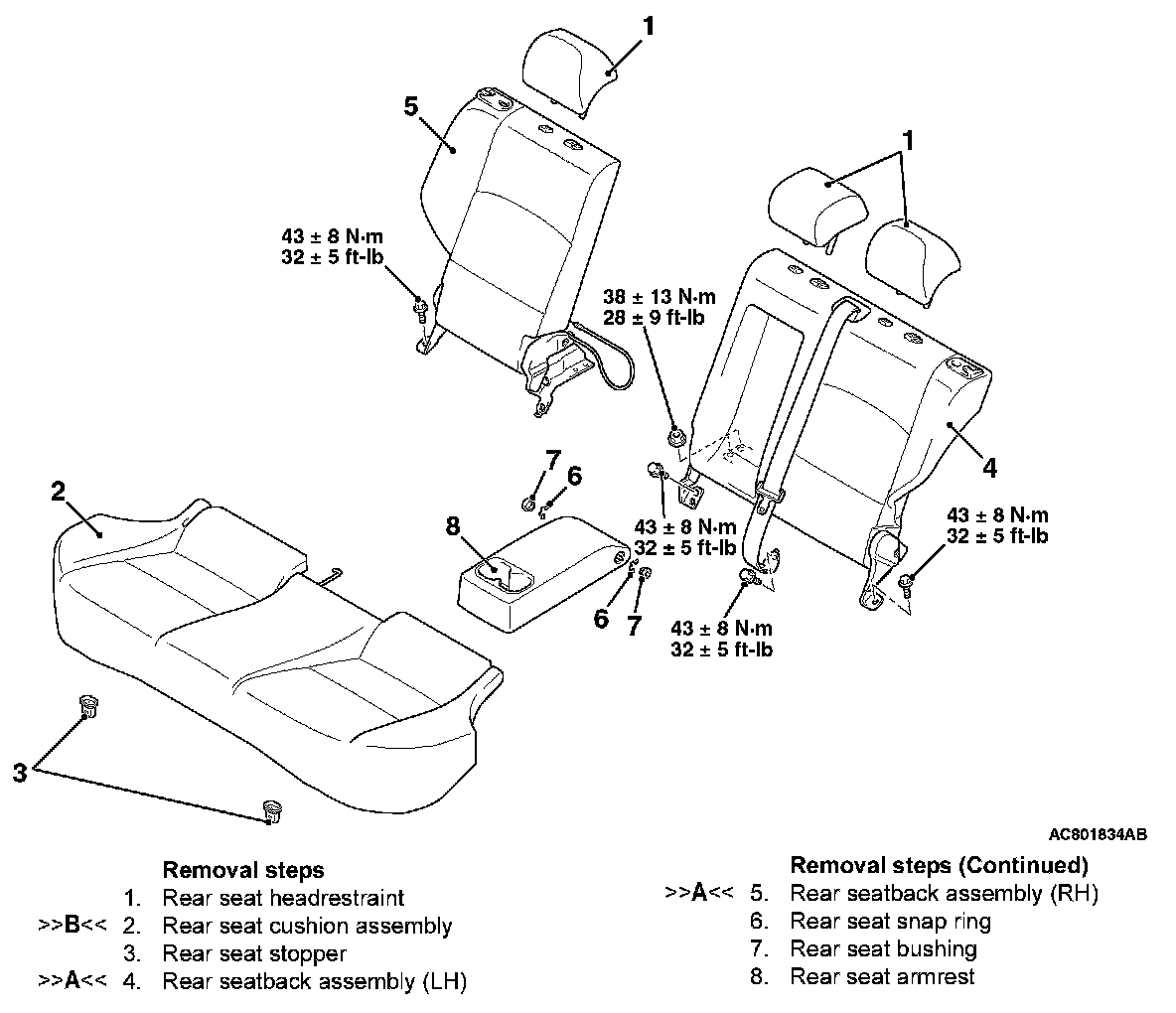

Removal Steps 1-8:

INSTALLATION SERVICE POINTS

]]A[[REAR SEATBACK ASSEMBLY (LH)/REAR SEATBACK ASSEMBLY (RH) INSTALLATION

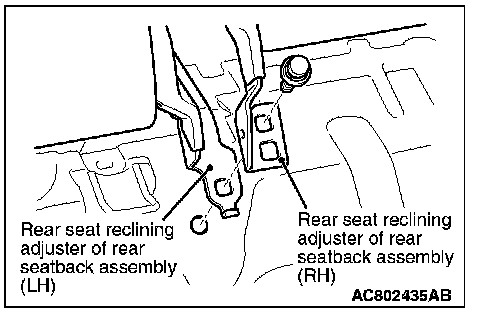

1. Place the rear seat reclining adjuster of the rear seatback assembly (LH) on top of the rear seat reclining adjuster of the rear seatback assembly (RH) for installation.

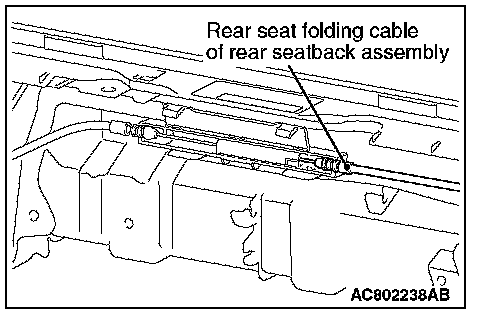

2. Among the three fixed positions, securely fit the rear seat folding cable in the center position.

]]B[[REAR SEAT CUSHION ASSEMBLY INSTALLATION

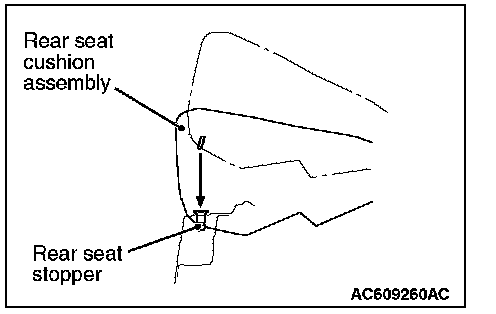

Fit the rear seat cushion into the rear seat hook securely.
