Rear Seat

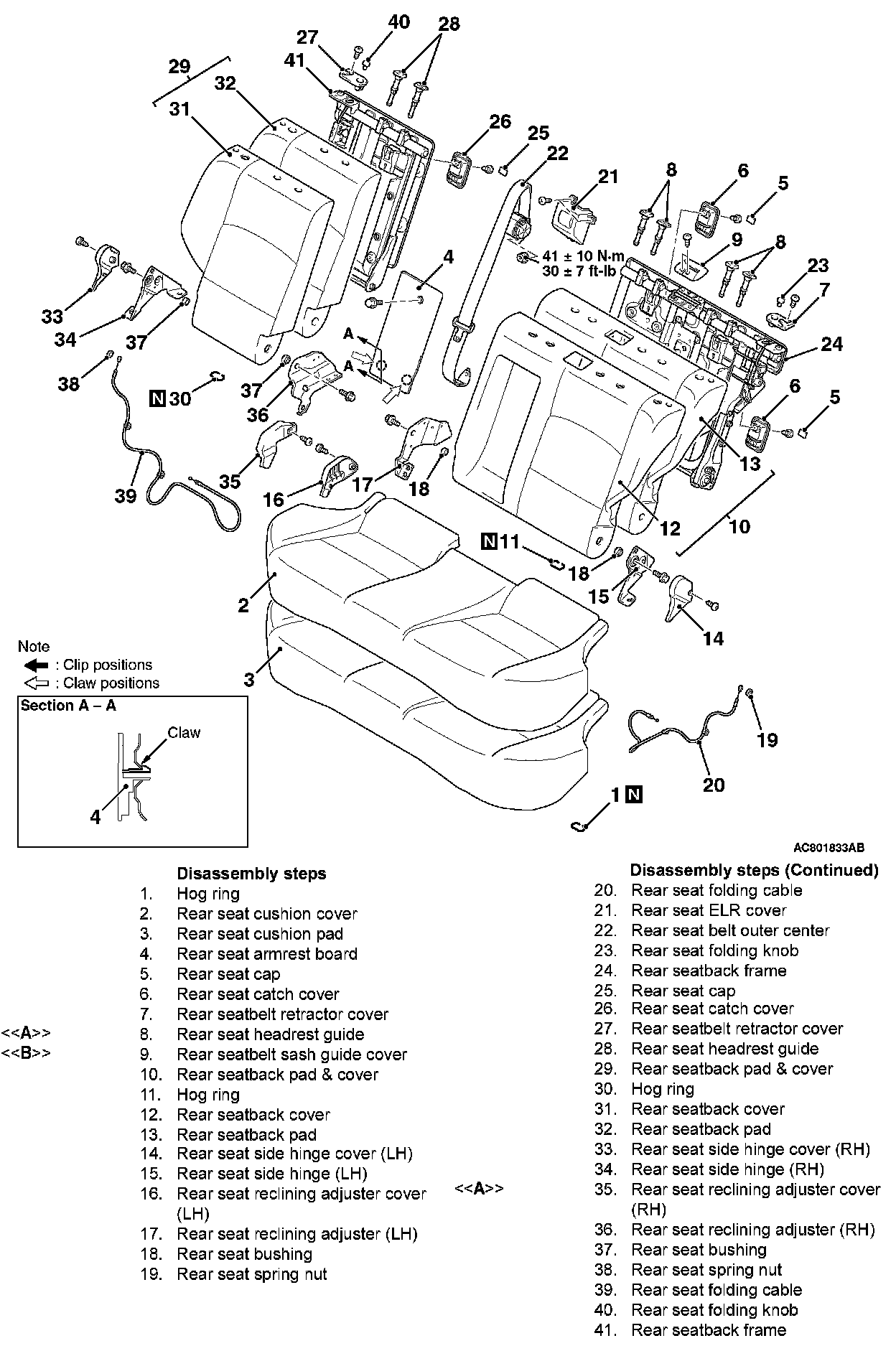

DISASSEMBLY AND REASSEMBLY

Disassembly And Reassembly Steps 1-41:

DISASSEMBLY SERVICE POINTS

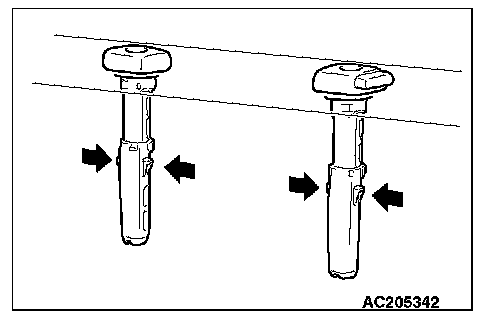

[[A]] REAR SEAT HEAD RESTRAINT GUIDE REMOVAL







Peel off the rear seatback cover and pad to access the head-restraint guides. Pull off the guides upwards while pushing the tabs (arrows) as shown.

[[B]] REAR SEATBELT SASH GUIDE COVER REMOVAL







Remove the rear seat belt sash guide cover by pulling it toward the rear side of the rear seatback.
