Inside Rear View Mirror
Inside Rear View Mirror
INTERIOR MIRROR
REMOVAL SERVICE POINT

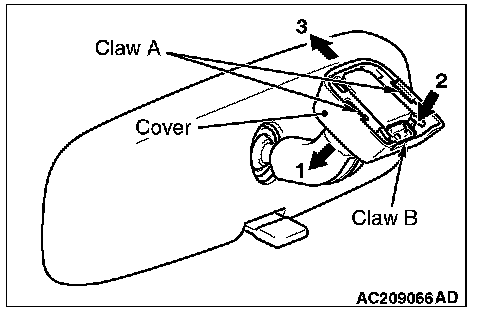

1.
Disengage the claw A and lower the cover toward arrow 1 direction.
2.
Push the claw B toward arrow 2 direction to unlock, and pull out the mirror toward arrow 3 direction.
