Interior Moulding / Trim: Service and Repair

TRIMS

INTERIOR TRIM

REMOVAL AND INSTALLATION

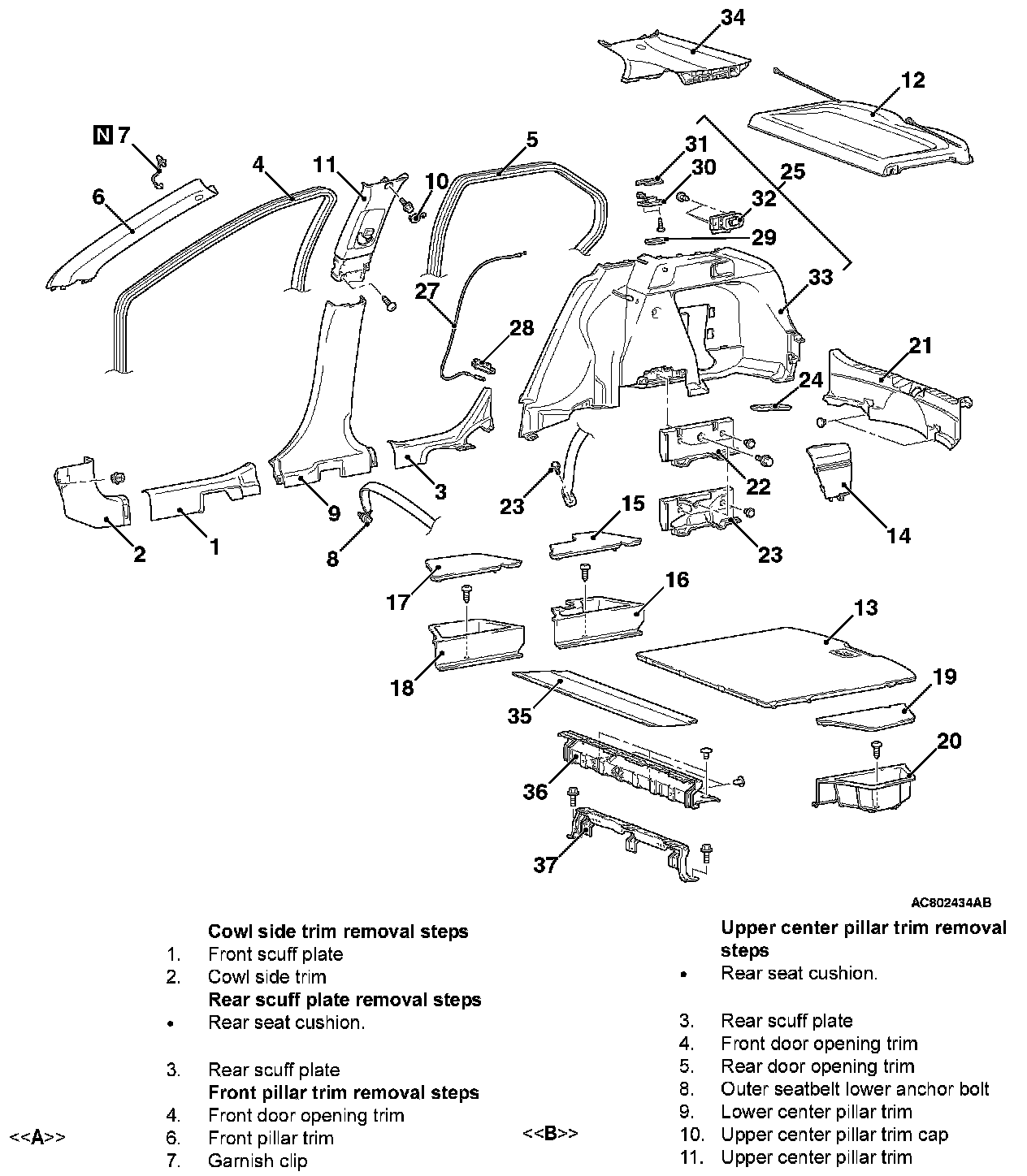

Removal Steps 1-37 (Part 1):

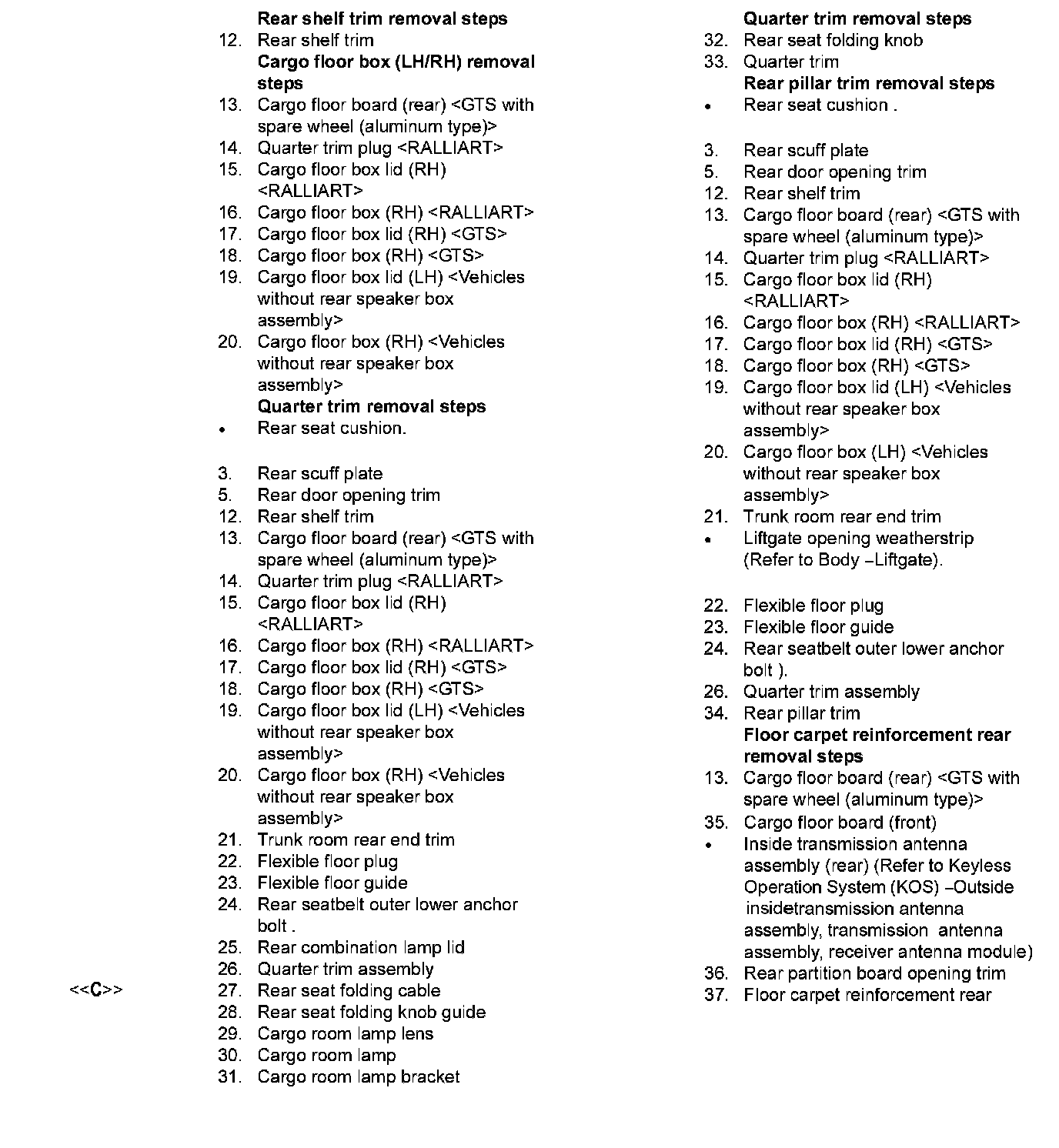

Removal Steps 1-37 (Part 2):

Required Special Tool:
- MB990784: Ornament Remover

CLIP AND CLAW POSITIONS

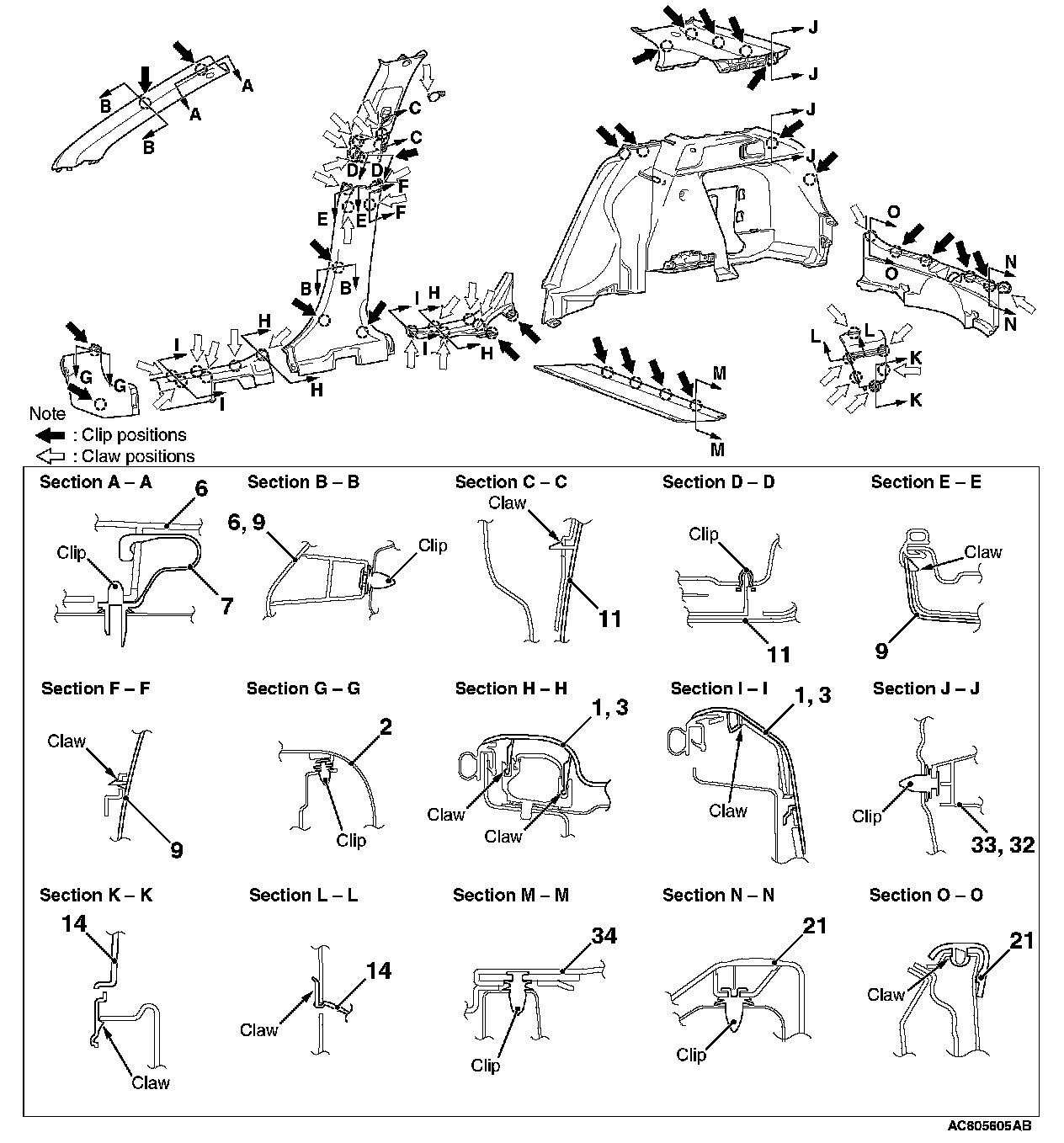

Clip And Claw Positions:

NOTE: Each number in the illustration indicates a part number.

REMOVAL SERVICE POINTS

[[A]]FRONT PILLAR TRIM REMOVAL







1. Pull down the front or rear pillar trim as shown in the figure.

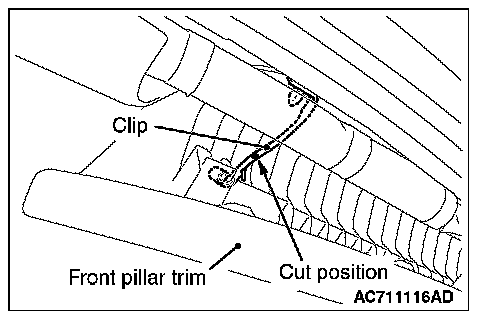

2. Cut the clip at the cutting position shown in the figure, taking care not to damage the other components.
3. Remove the clip remaining on the front or rear pillar trim, taking care not to scratch the trim.
4. Remove the clip remaining on the vehicle side by breaking it to prevent damage to the flange of the clip mounting hole.

[[B]] UPPER CENTER PILLAR TRIM CAP REMOVAL

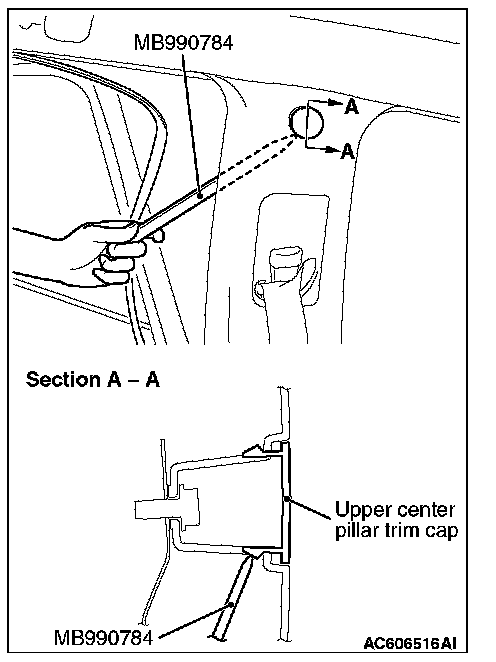

Remove the opening trim. Remove the trim cap by inserting the special tool ornament remover (MB990784) between the trim and body as shown in the illustration.

[[C]] REAR SEAT FOLDING CABLE REMOVAL

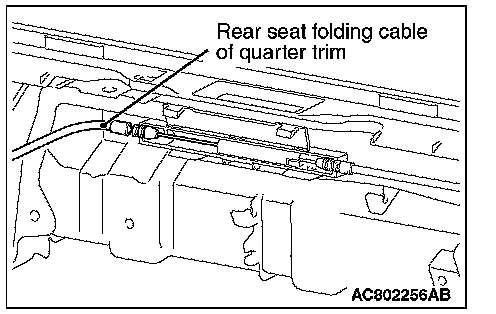

Among the three fixed positions, securely fit the rear seat folding cable in the center position.
