Trunk / Liftgate Handle: Service and Repair

LIFTGATE HANDLE AND LATCH

REMOVAL AND INSTALLATION

Post-installation Operation:

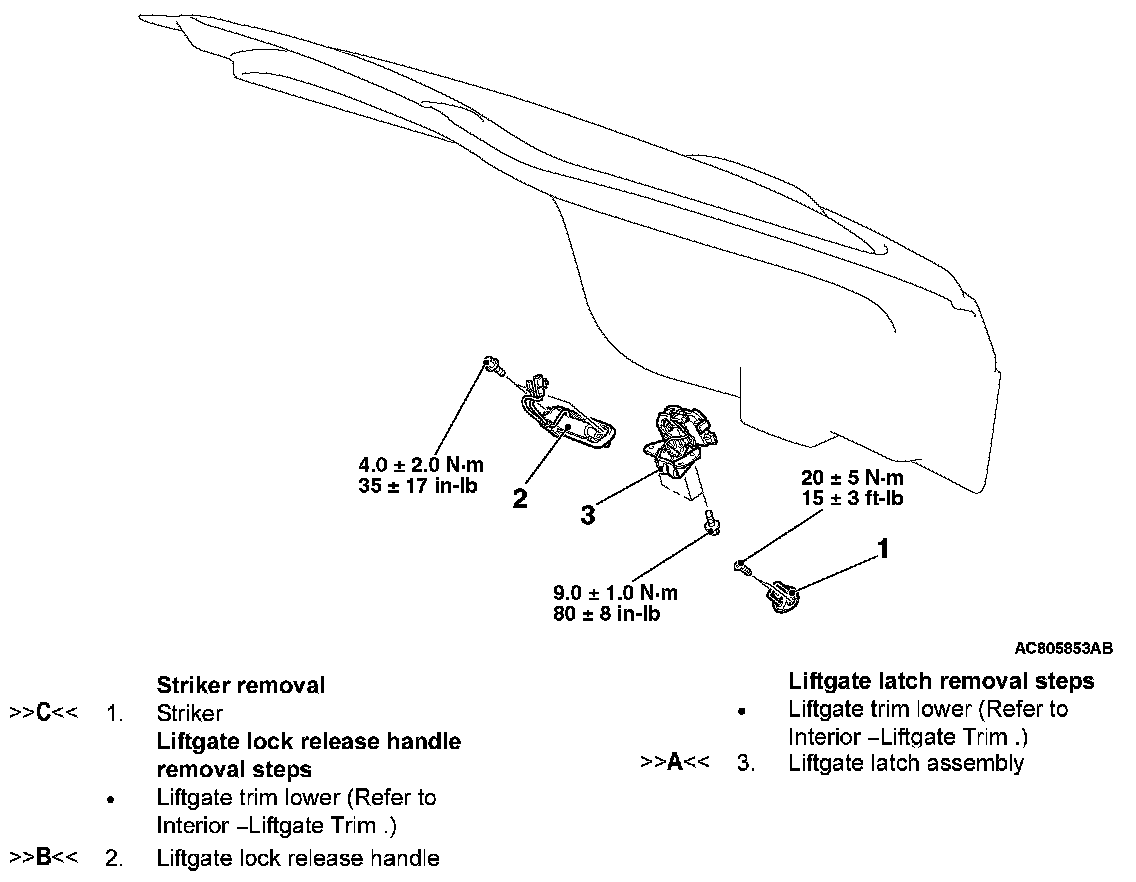

Removal Steps 1-3:

INSTALLATION SERVICE POINTS

]]A[[ LIFTGATE LATCH ASSEMBLY INSTALLATION

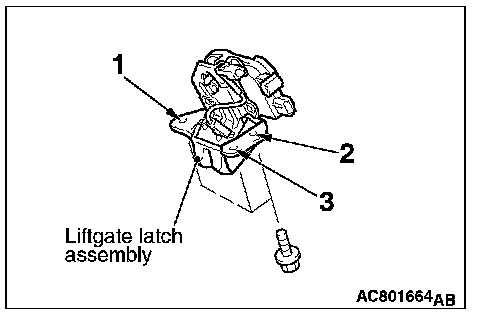

Install the mounting bolts of liftgate latch assembly in the order shown in the illustration.

]]B[[ LIFTGATE LOCK RELEASE HANDLE INSTALLATION

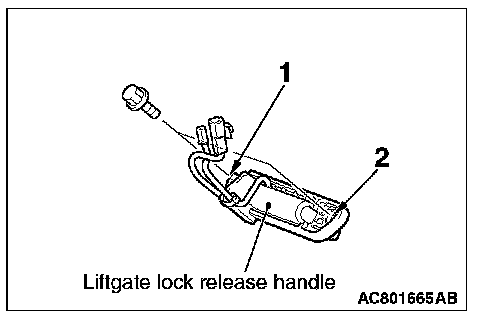

Install the mounting bolts of liftgate lock release handle in the order shown in the illustration.

]]C[[ STRIKER INSTALLATION

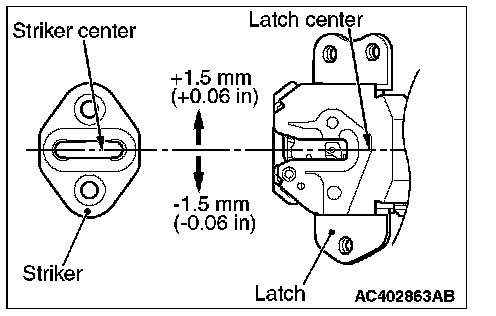

Install the striker so that the striker center does not deviate more than ±1.5 mm (0.06 inch) from the latch center.
