Removal and Replacement

HOOD

HOOD REMOVAL AND INSTALLATION [GTS]

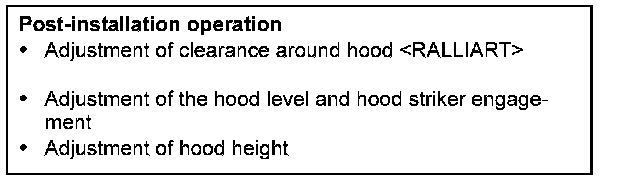

Post-installation Operation:

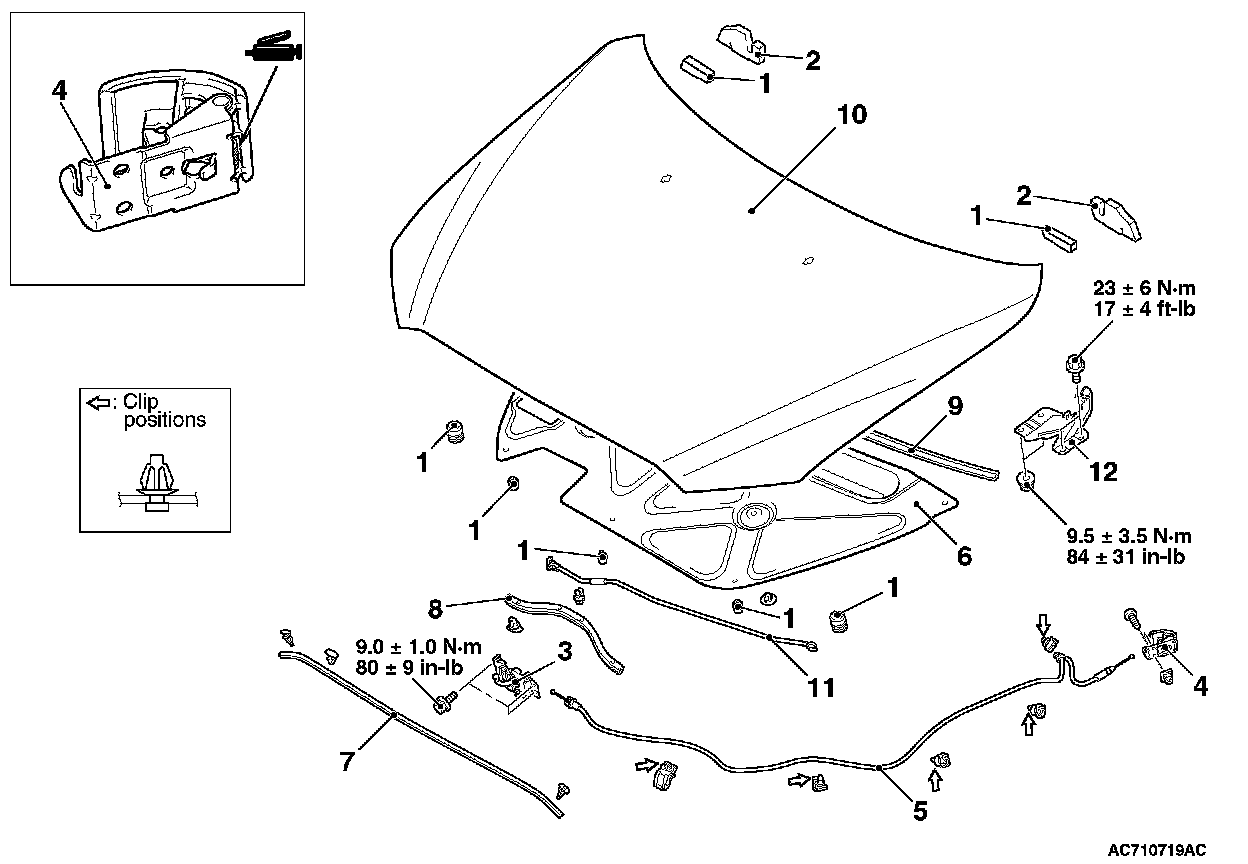

Removal Steps 1-12 (Part 1):

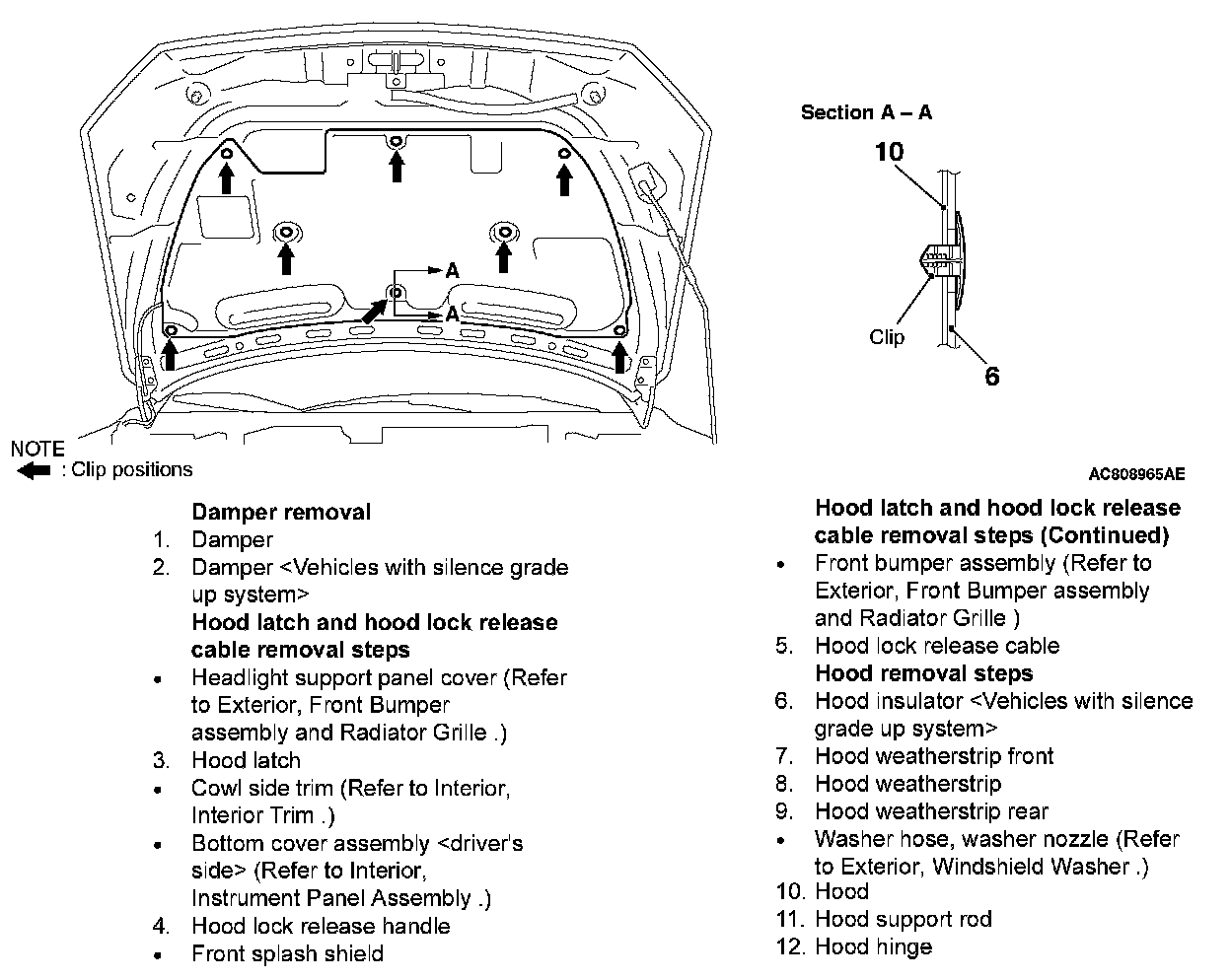

Removal Steps 1-12 (Part 2):

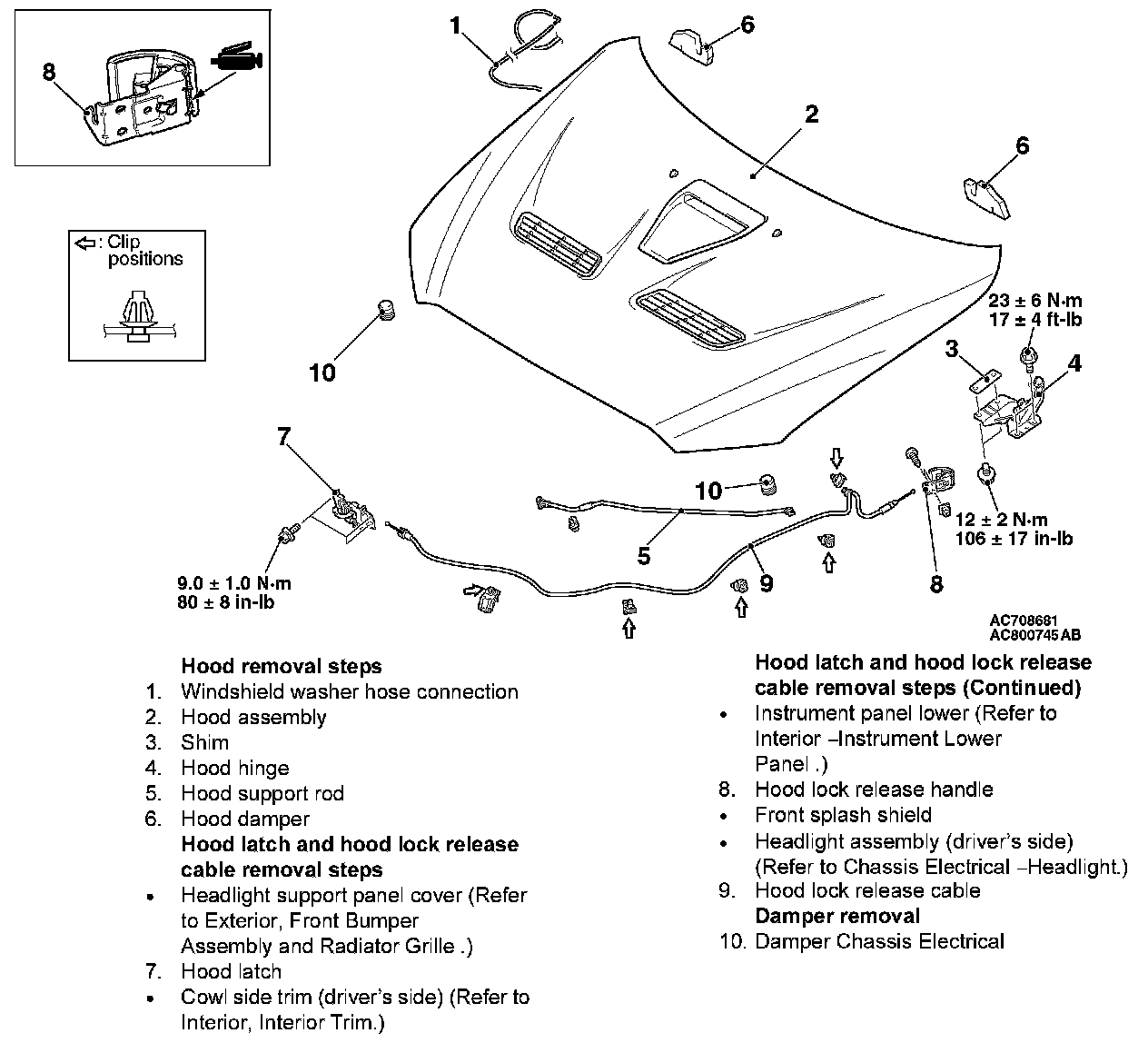

REMOVAL AND INSTALLATION [RALLIART]

Post-installation Operation:

REMOVAL SERVICE POINTS

[[A]] HOOD AIR OUTLET GARNISH REMOVAL







Using 6 mm (0.2 in) socket wrench, push out the hood air outlet garnish assembling clips.

[[B]] HOOD AIR INLET GARNISH REMOVAL







Using 6 mm (0.2 in) socket wrench, push out the hood air inlet garnish assembling clips.
