Data List Reference Table

DATA LIST REFERENCE TABLE

NOTE: Some items are not displayed on scan tool MB991958 according to the information in the ECU.

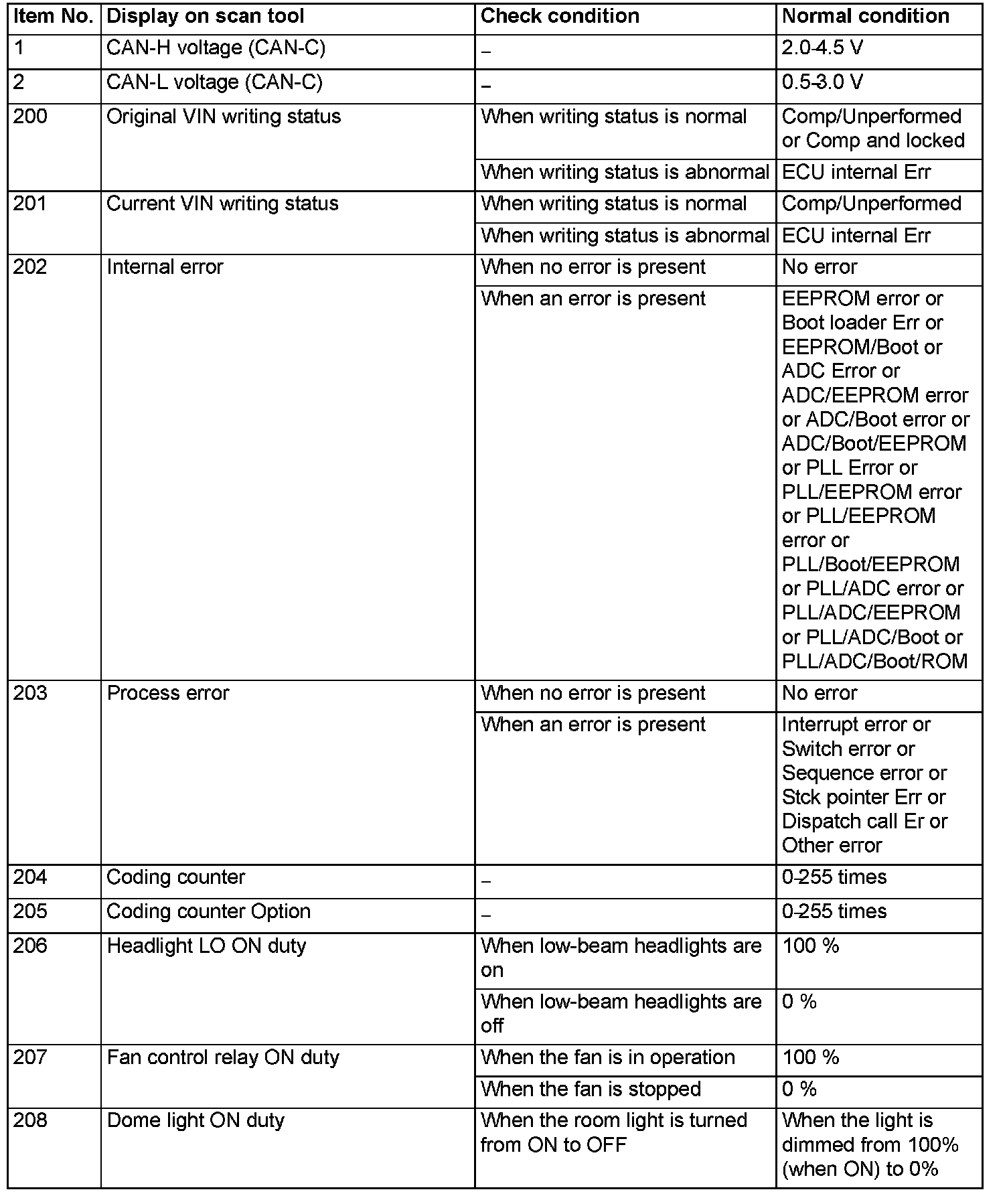

Part 1:

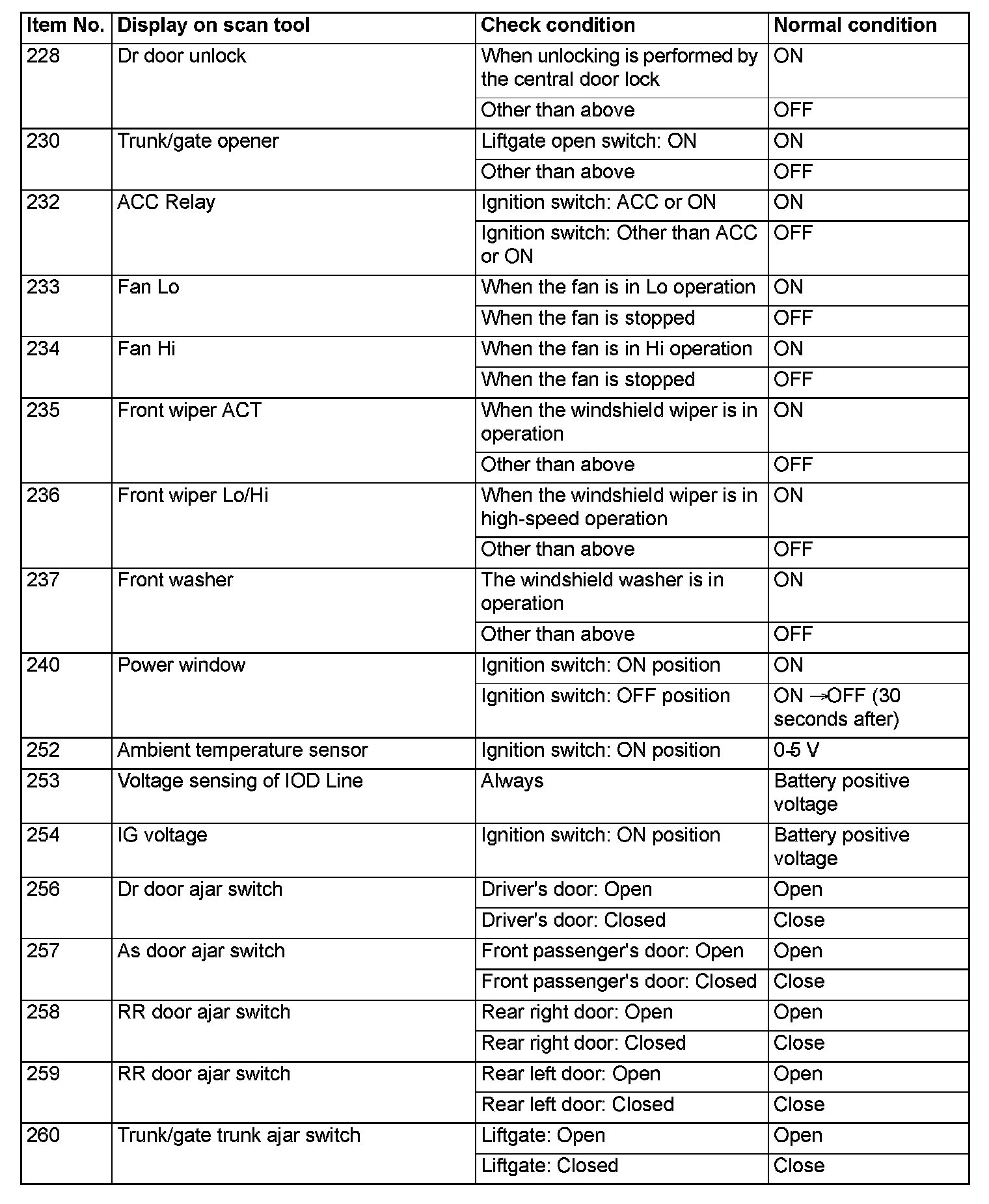

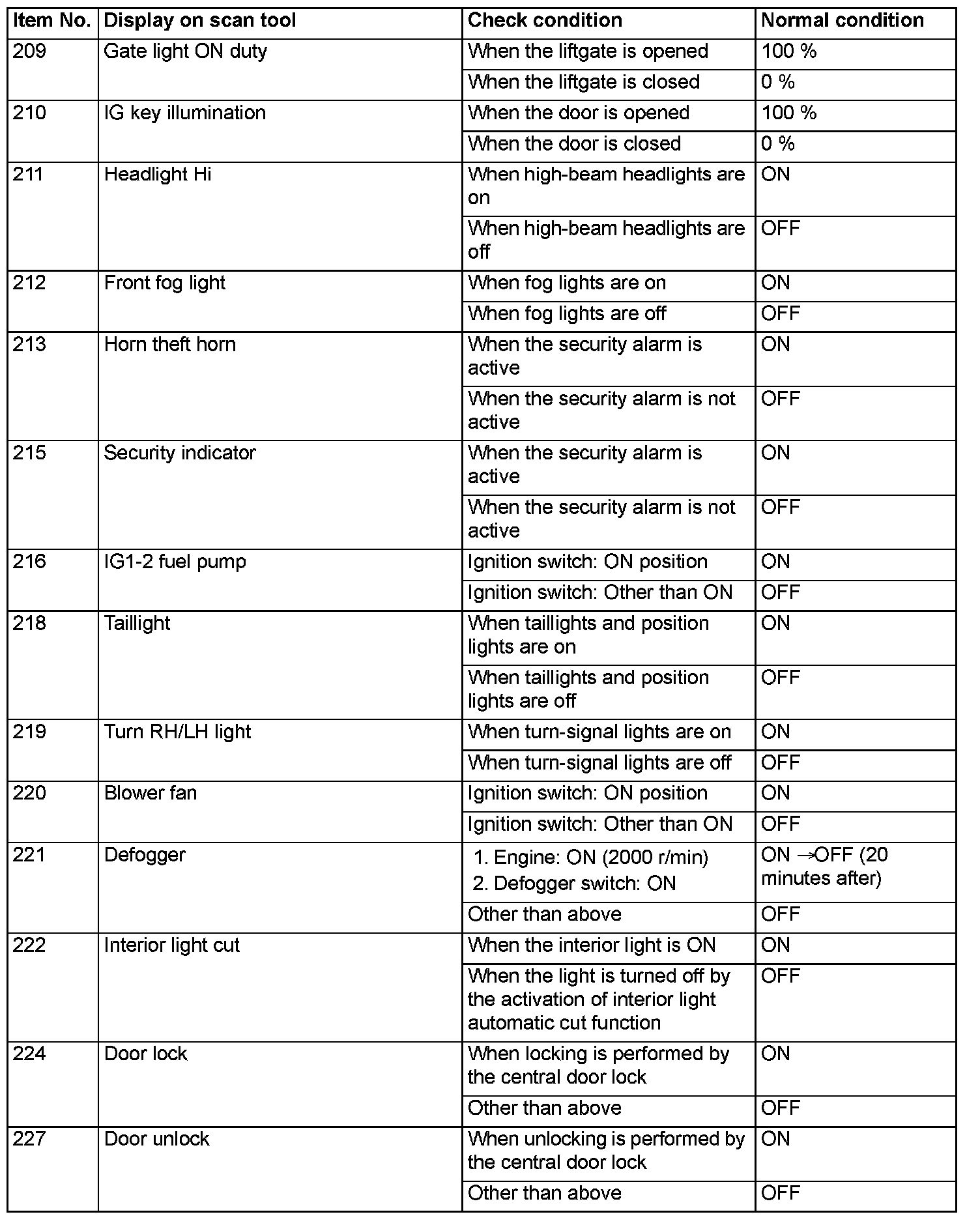

Part 2:

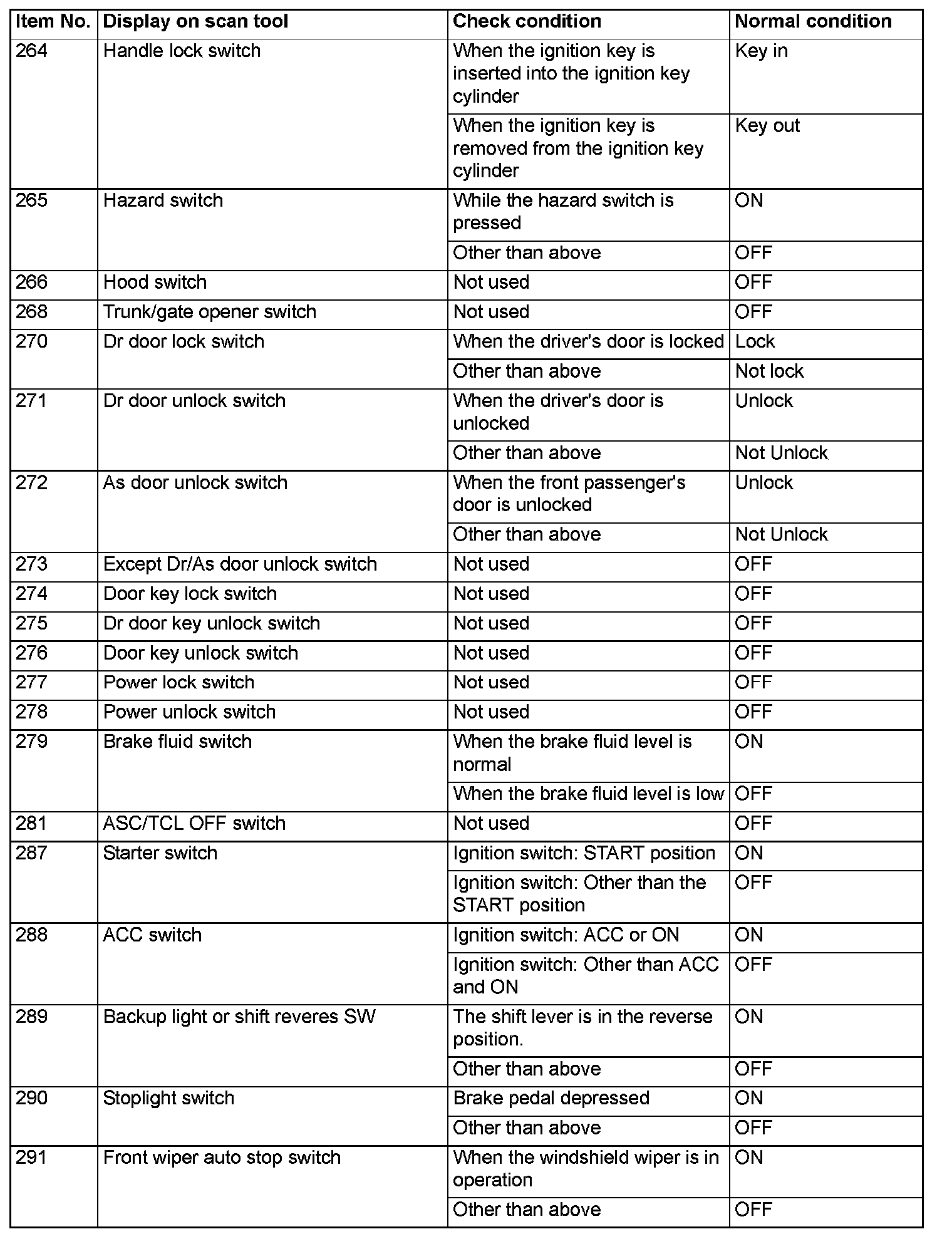

Part 3:




Part 4:




Part 5:

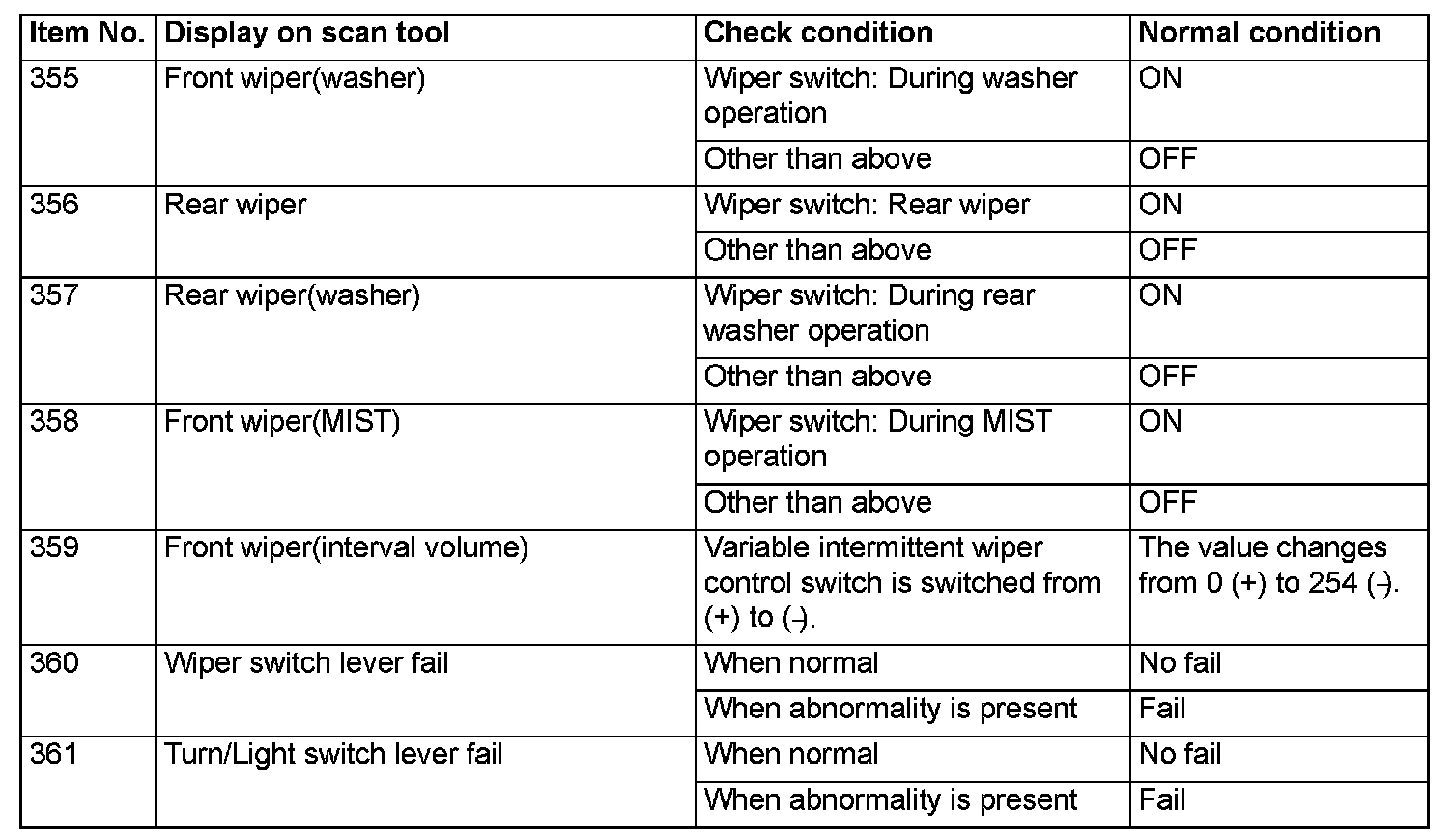

Part 6:
