Accessories and Optional Equipment: Service and Repair

REMOVAL AND INSTALLATION

Multivision display

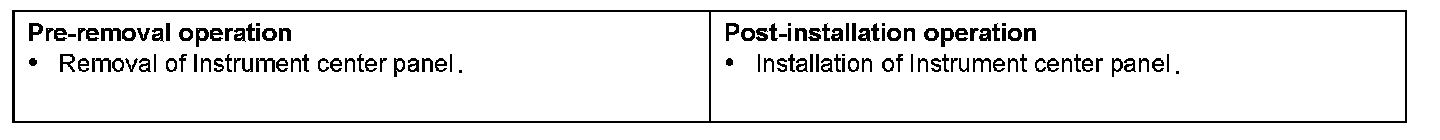

Pre-removal & Post-installation Operation:

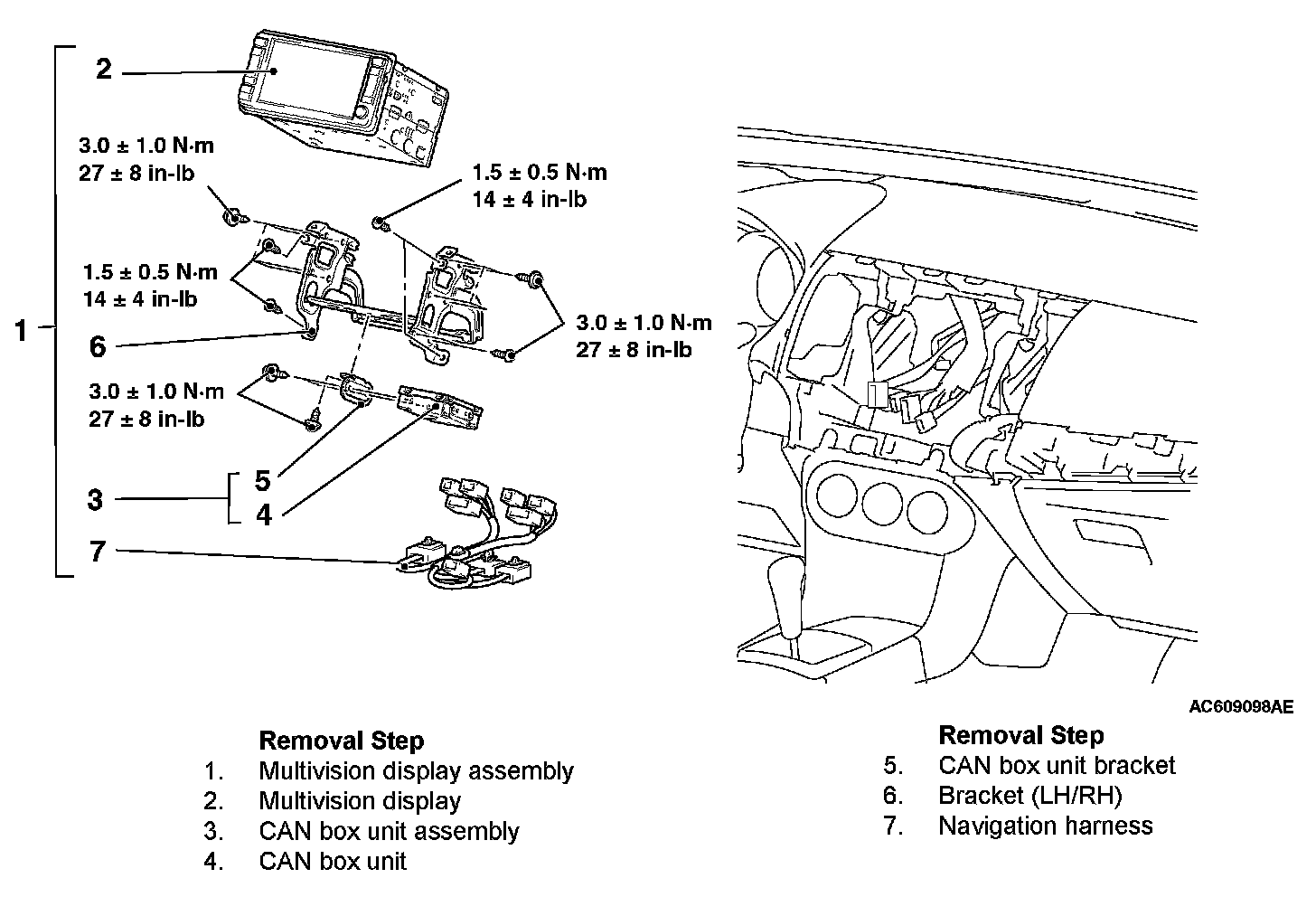

Removal Step 1-7:

INSTALLATION SERVICE POINT

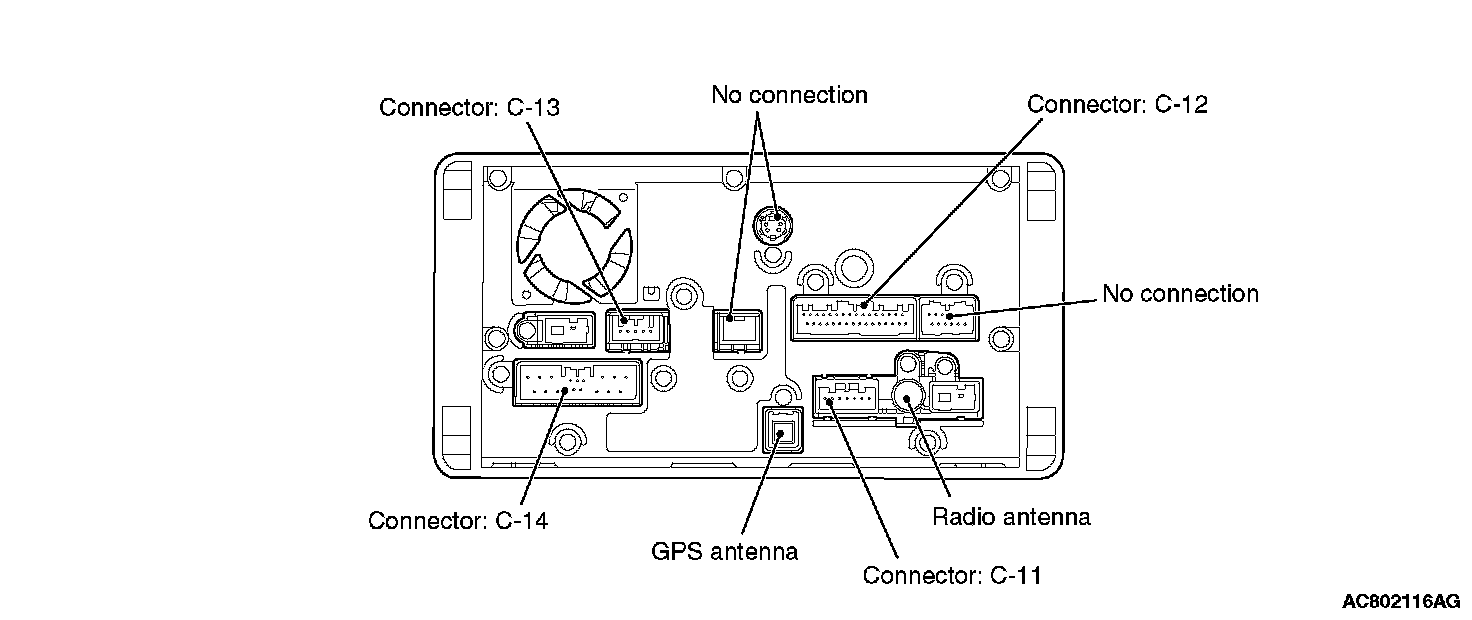

]]A[[ MULTIVISION DISPLAY







The connectors, antenna and cables connected to the multivision display are shown in the figure.
