Speaker: Service and Repair

REMOVAL AND INSTALLATION

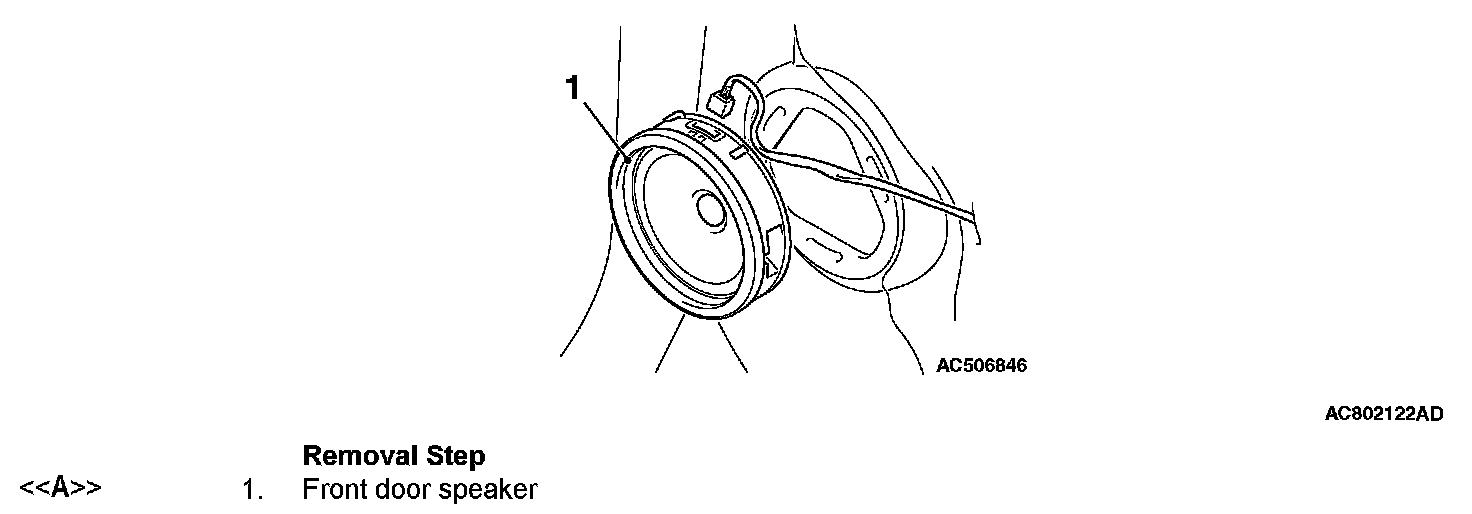

FRONT DOOR SPEAKER

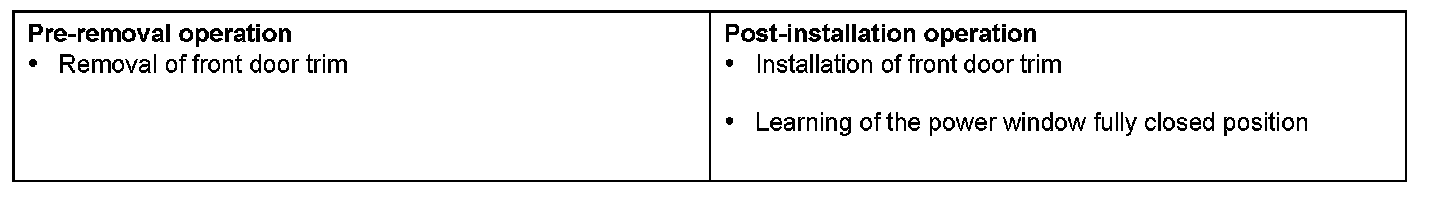

Pre-removal & Post-installation Operation:

Removal Step 1:

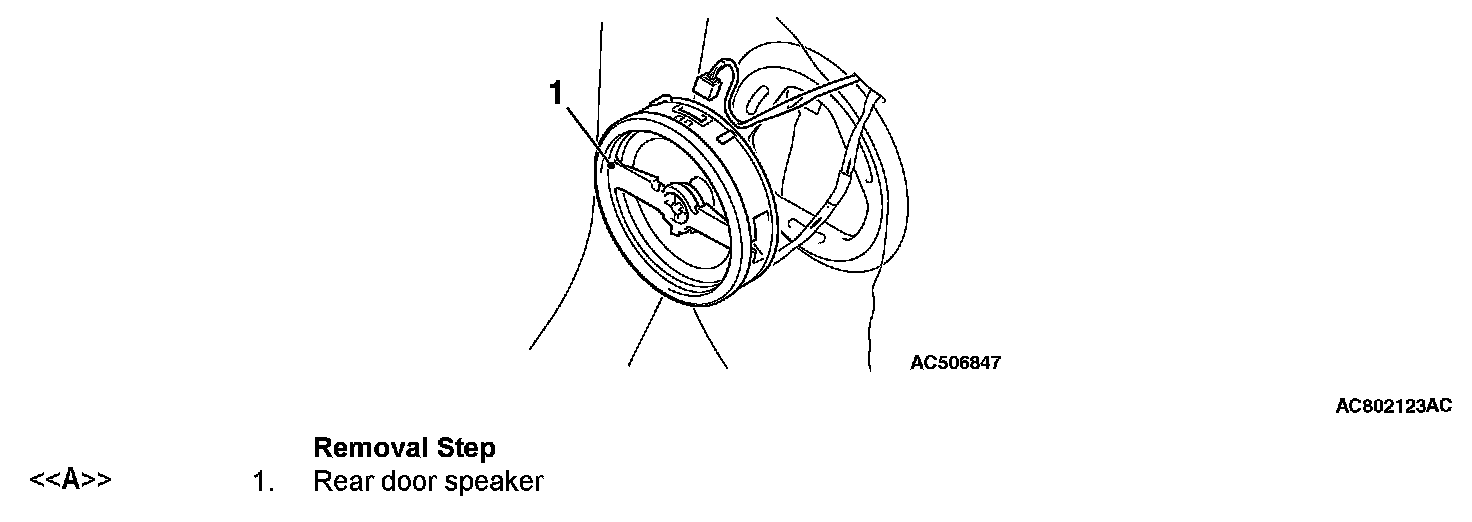

REAR DOOR SPEAKER

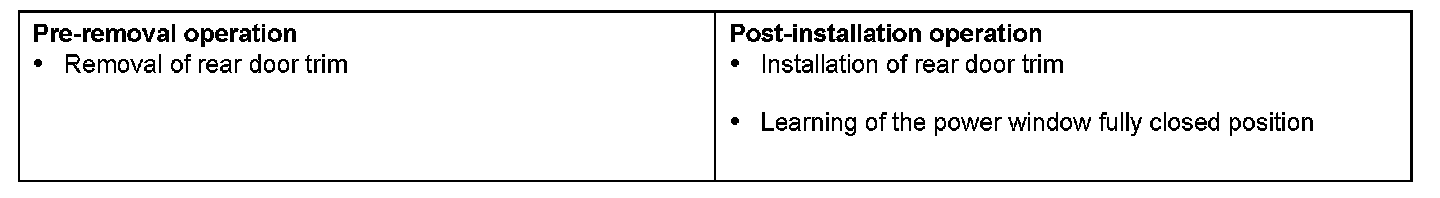

Pre-removal & Post-installation Operation:

Removal Step 1:

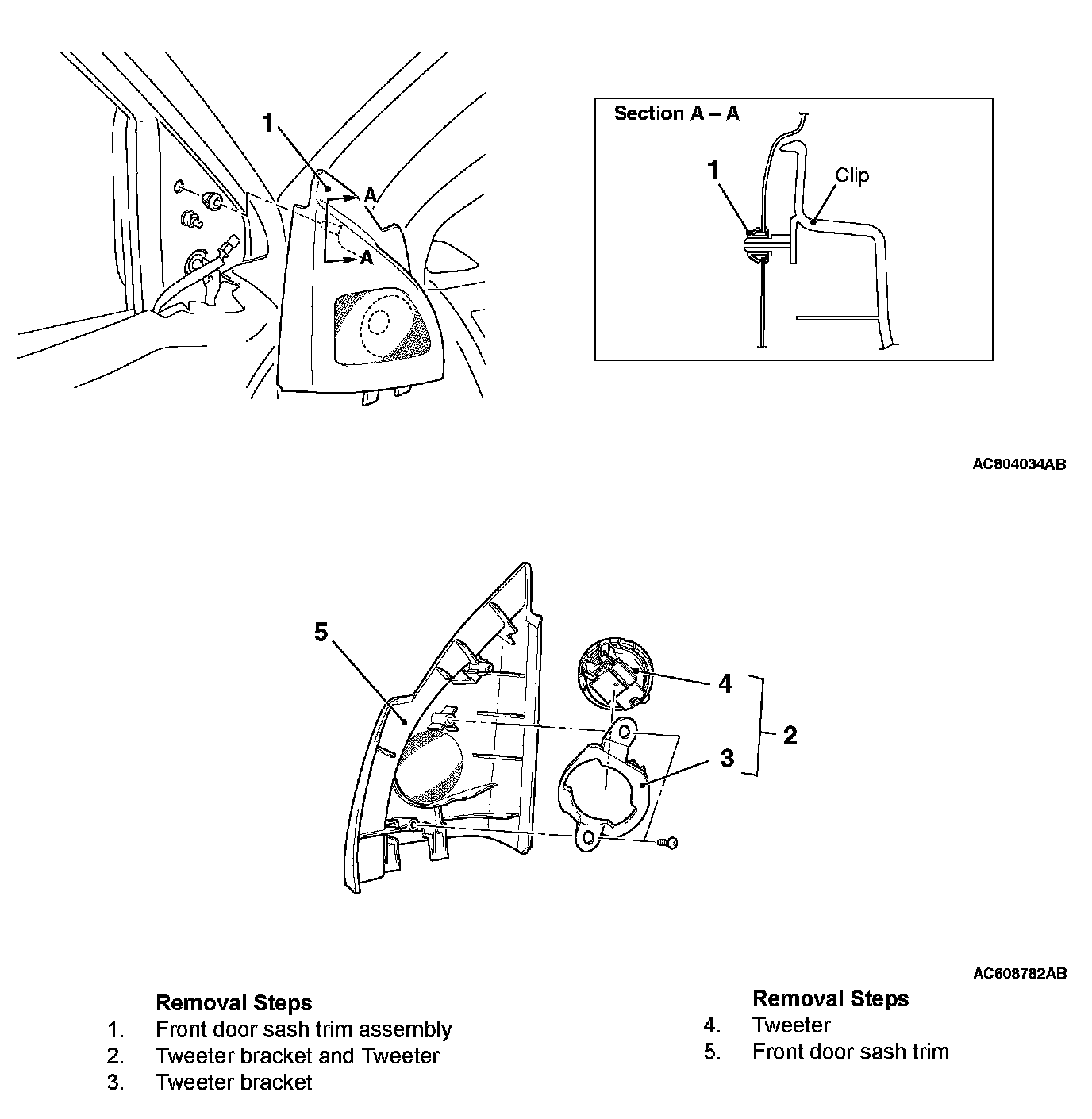

TWEETER

Removal Steps 1-5:

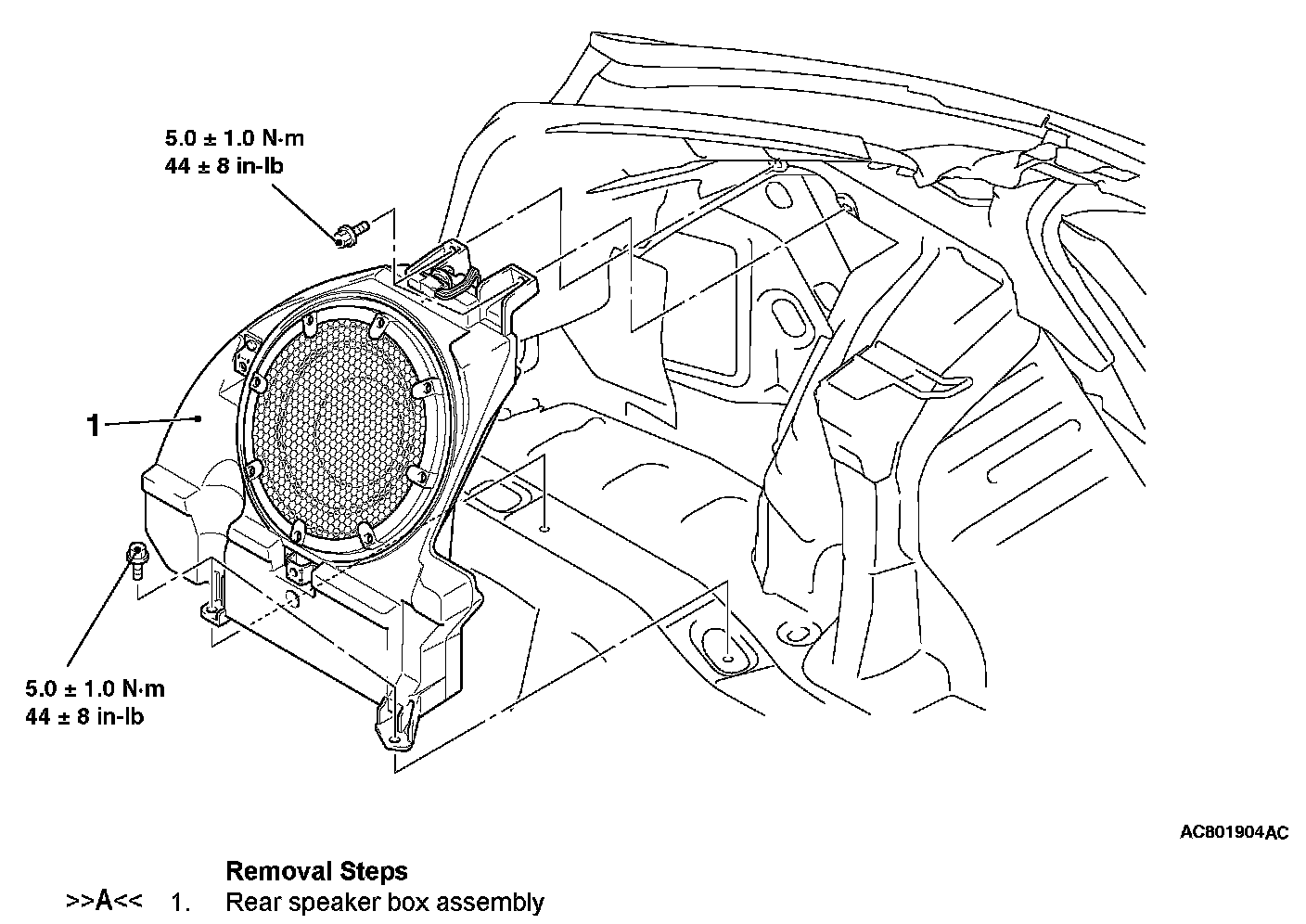

SUBWOOFER

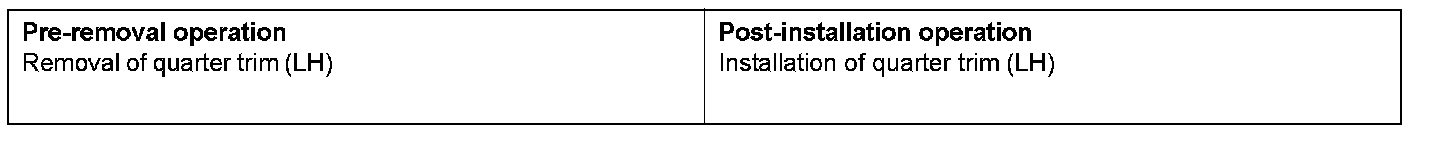

Pre-removal & Post-installation Operation:

Removal Steps 1:

REMOVAL SERVICE POINT

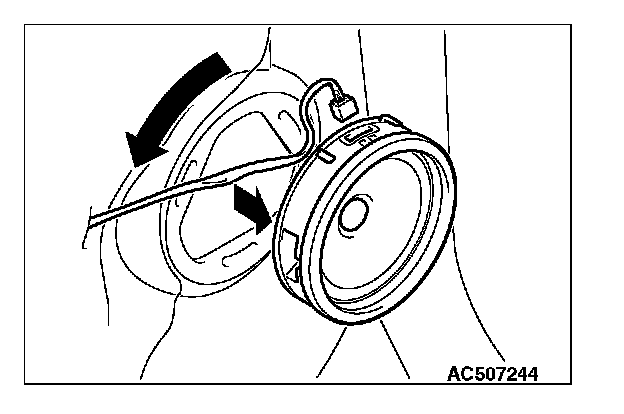

]]A[[ REMOVAL OF FRONT DOOR SPEAKER AND REAR DOOR SPEAKER







Disconnect the connector, and remove by twisting as shown in the figure.


INSTALLATION SERVICE POINT

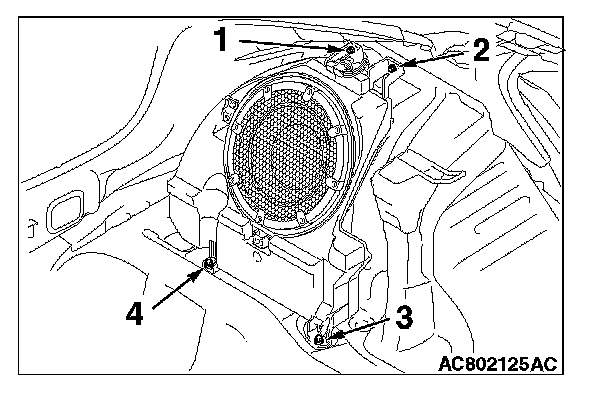

]]A[[ REAR SPEAKER BOX ASSEMBLY INSTALLATION







Tighten the bolts in the order of 1, 2, 3, 4 shown in the figure.
