Amplifier: Service and Repair

REMOVAL AND INSTALLATION

CAUTION: To remove the front seat assembly of vehicle with side air bag, refer to Service Precautions and Air Bag Module(S) And Clock Spring [GTS] or [RALLIART].

Pre-removal & Post-installation Operation:

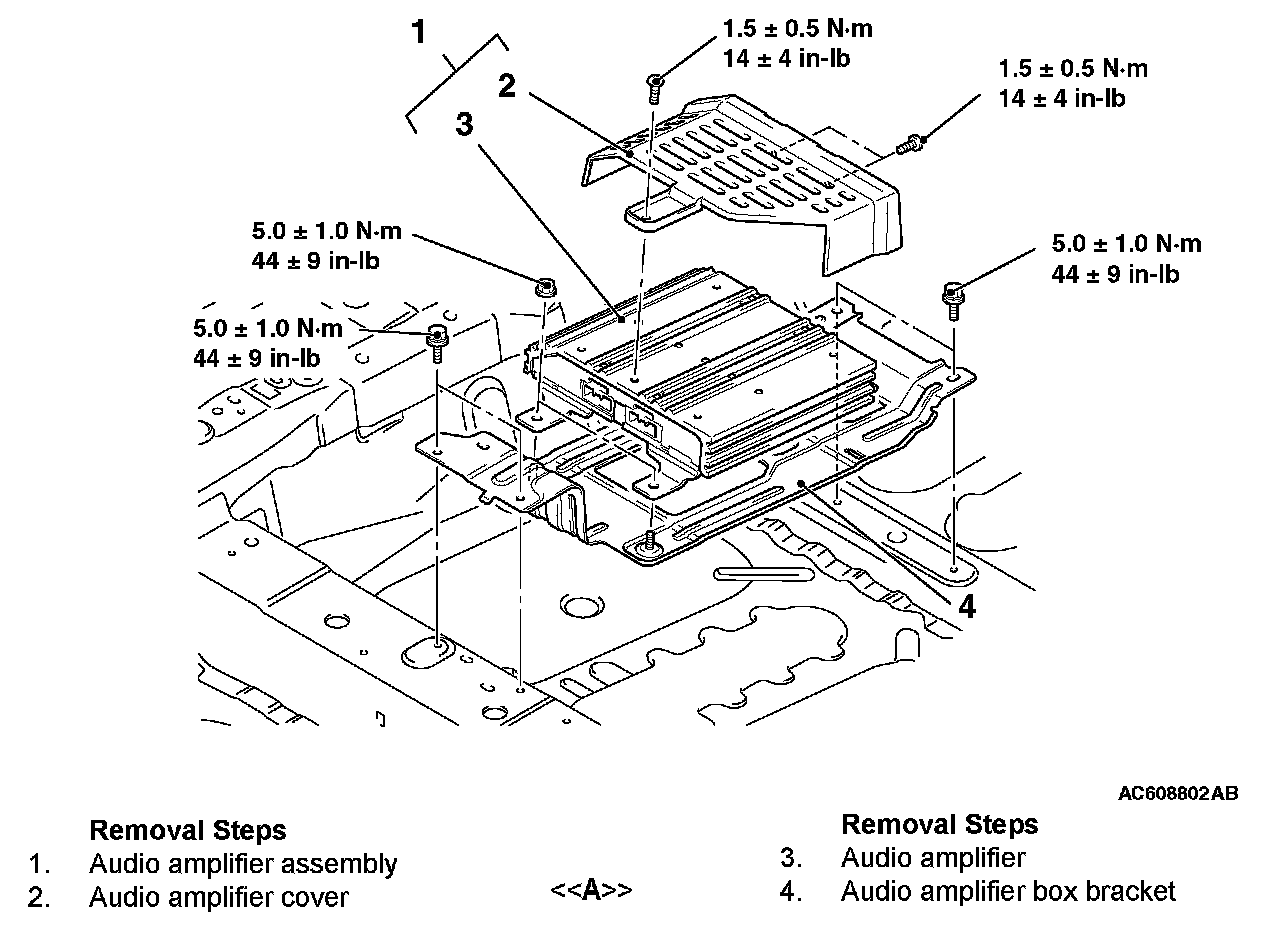

Removal Steps 1-4:

REMOVAL SERVICE POINT

]]A[[ REMOVAL OF AUDIO AMPLIFIER BOX BRACKET

Turn up and remove the carpet.
