Outside Transmission Antenna Assembly, Inside Transmission Antenna Assembly, Receiver Antenna Module

OUTSIDE TRANSMISSION ANTENNA ASSEMBLY, INSIDE TRANSMISSION ANTENNA ASSEMBLY, RECEIVER ANTENNA MODULE

REMOVAL AND INSTALLATION

[OUTSIDE TRANSMISSION ANTENNA ASSEMBLY, INSIDE TRANSMISSION ANTENNA ASSEMBLY, TONE ALARM ASSEMBLY]

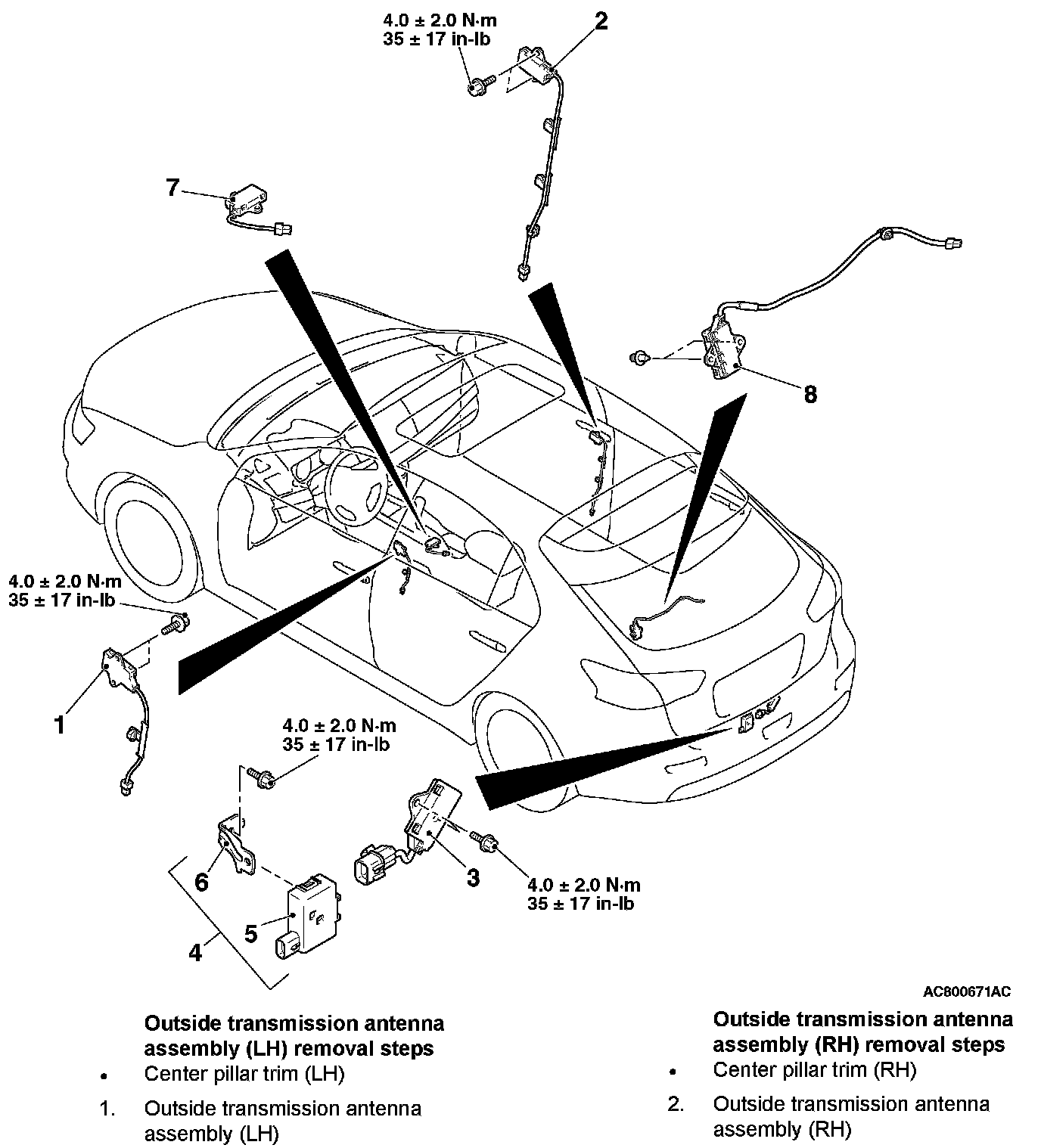

Removal Steps 1-8 (Part 1):

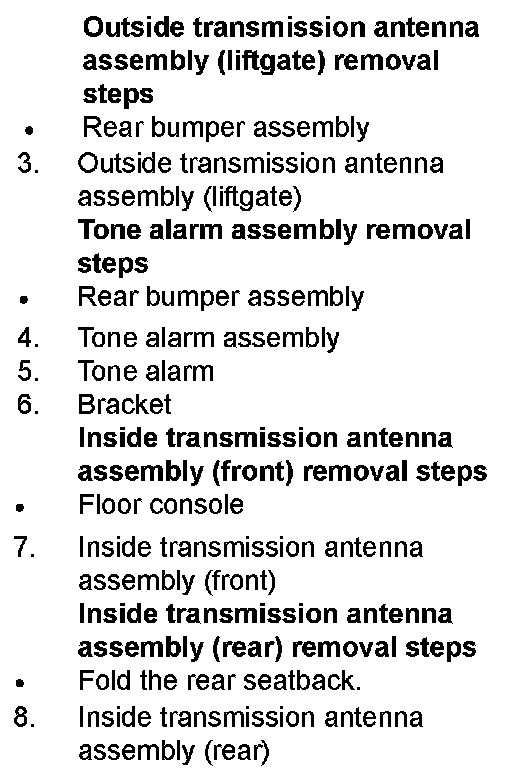

Removal Steps 1-8 (Part 2):

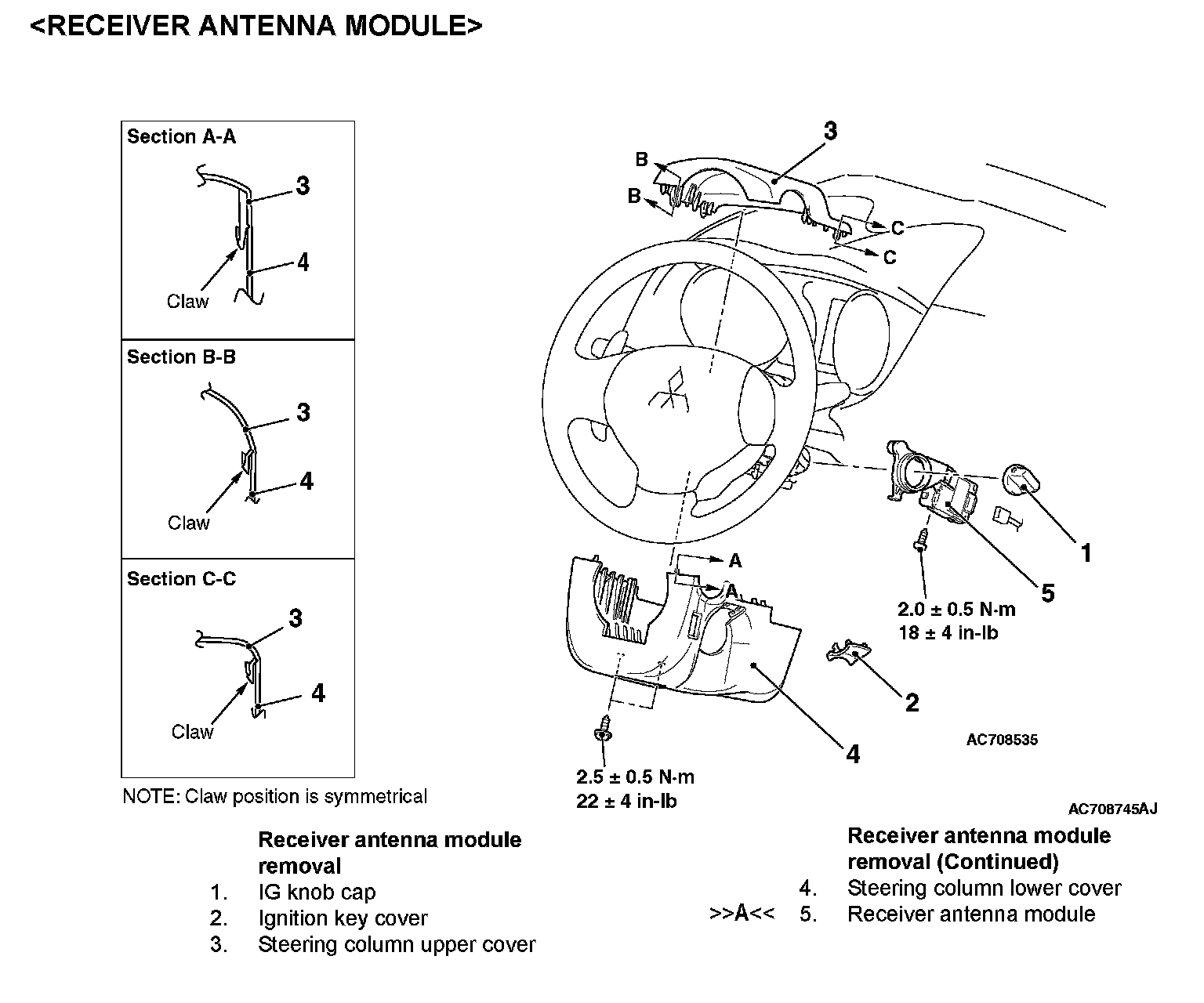

[RECEIVER ANTENNA MODULE]

Removal Steps 1-5:

INSTALLATION SERVICE POINT

]]A[[ RECEIVER ANTENNA MODULE INSTALLATION

Check that the top claw of receiver antenna module is fixed securely to the boss of steering lock and the antenna is not floated on the key cylinder.
