Transmission Oil Level Check

TRANSMISSION OIL LEVEL CHECK

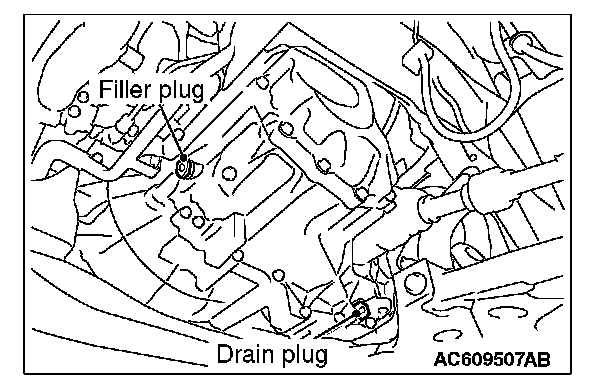

1. Remove the oil filler plug and gasket.

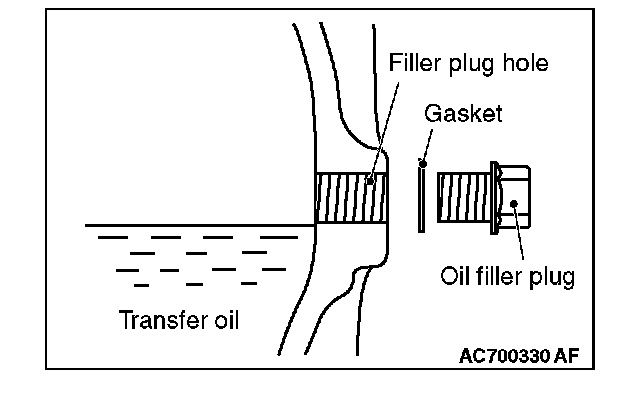

2. Check that the oil level is up to the lower edge of the filler plug hole.
3. Check that the oil is not noticeably dirty.
4. Tighten the filler plug and new gasket to the specified torque.

Tightening torque: 49 ± 19 Nm (37 ± 14 ft-lb)
