Continuously Variable Transmission/Transaxle: Locations

CVT CONTROL COMPONENT LAYOUT




Overall View:




View A:




View B:




View C:




View E:

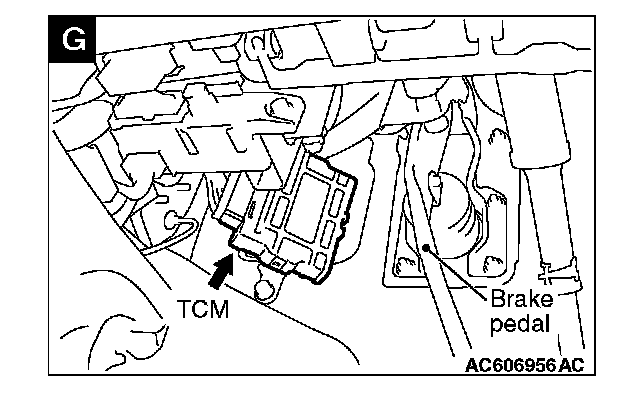

View G:

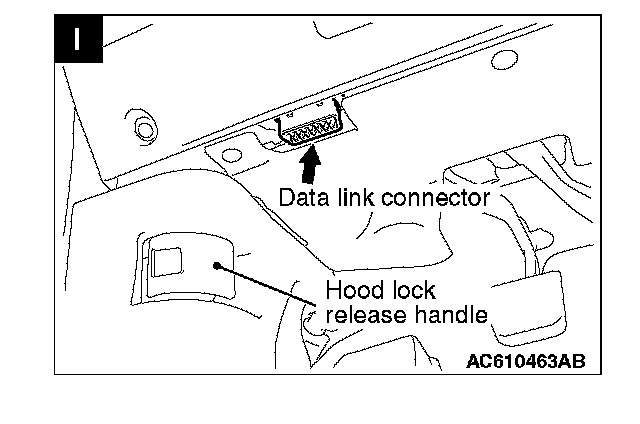

View I:

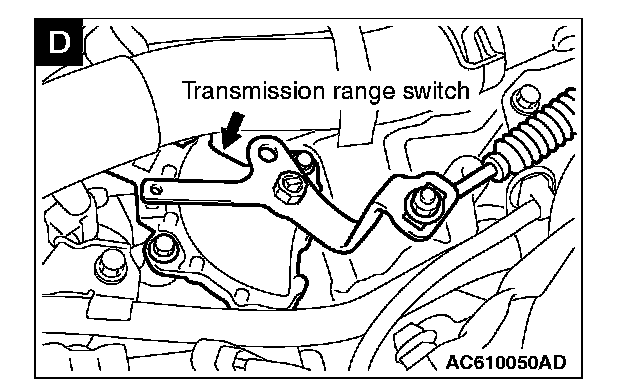

View D:

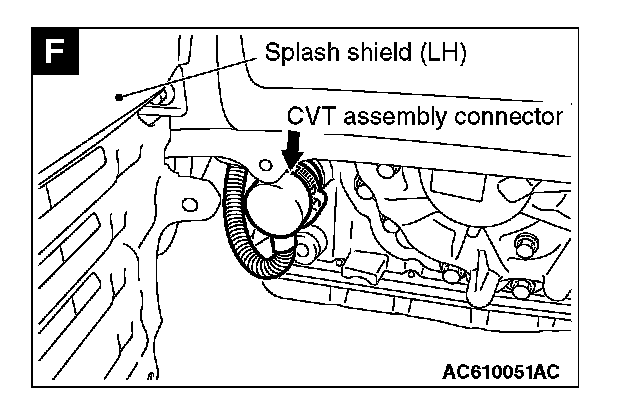

View F:

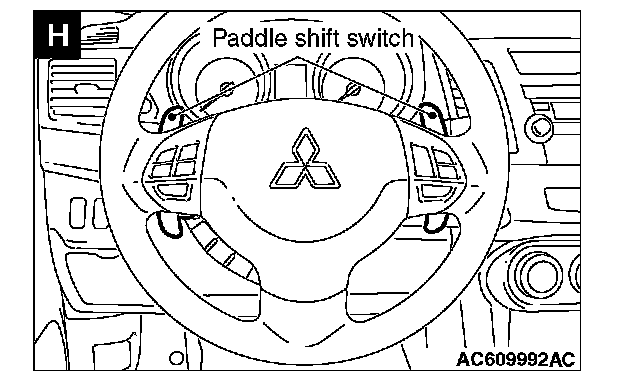

View H:

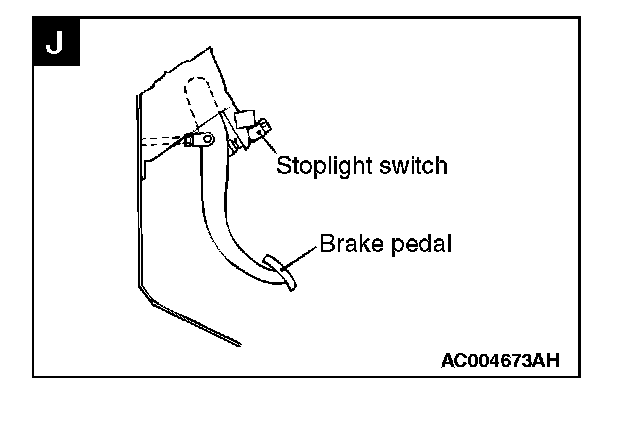

View J:

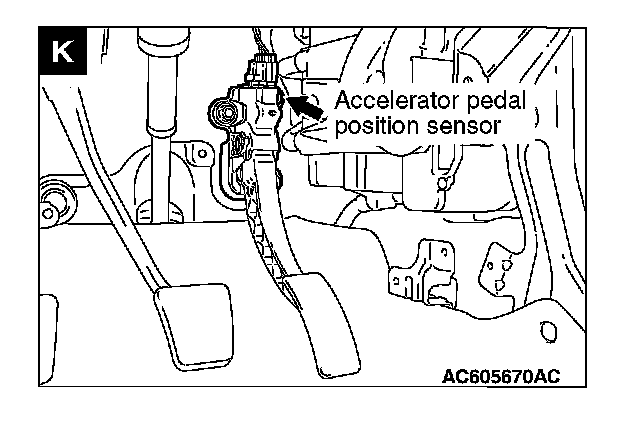

View K:




View L:
