Removal and Replacement

STARTER MOTOR ASSEMBLY

REMOVAL AND INSTALLATION

[2.4L ENGINE]

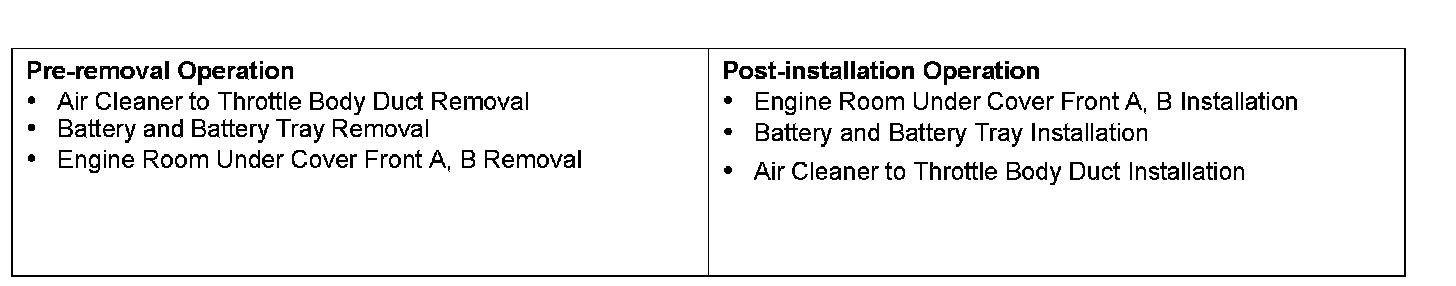

Pre-removal & Post-installation Operation:

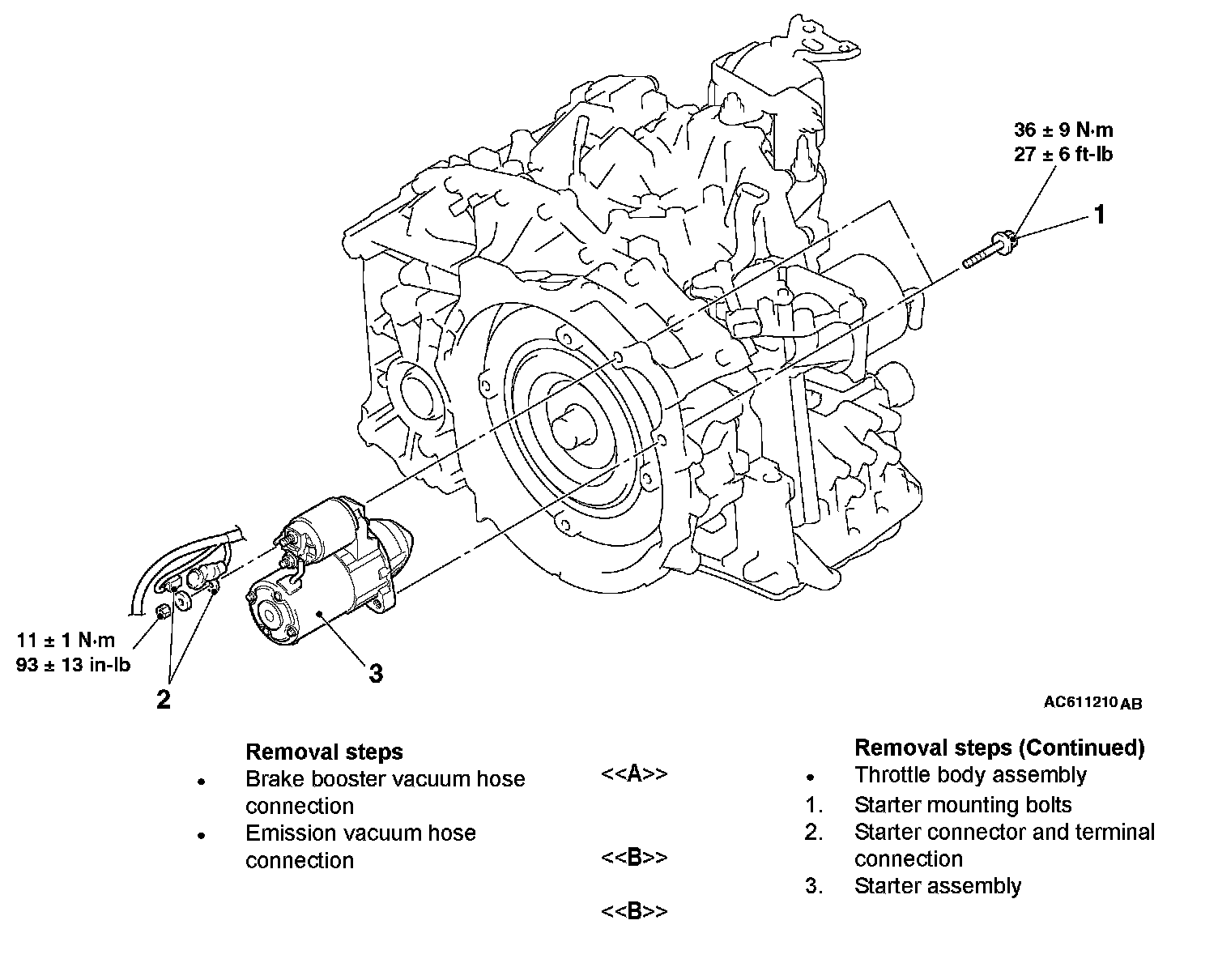

Removal Steps 1-3:

REMOVAL SERVICE POINTS

]]A[[ THROTTLE BODY ASSEMBLY REMOVAL
After removing the throttle body assembly connecting bolts, move the throttle body assembly with the hose installed to a place where it will not interfere with the removal of the starter assembly.

]]B[[ STARTER CONNECTOR AND TERMINAL/STARTER ASSEMBLY REMOVAL
1. Slide the starter assembly, and remove the starter connector and terminal.
2. Remove the starter assembly from the lower front of the engine.
