Torque Specifications

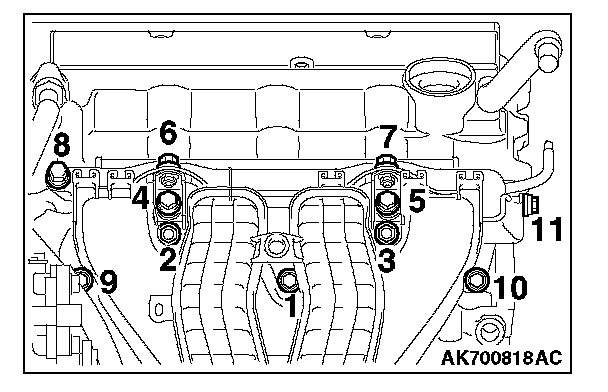

Intake manifold
Temporarily torque 3.5 ± 1.5 Nm (31 ± 13 in. lb.)
Tightening torque 20 ± 2 Nm (15 ± 1 ft. lb.)

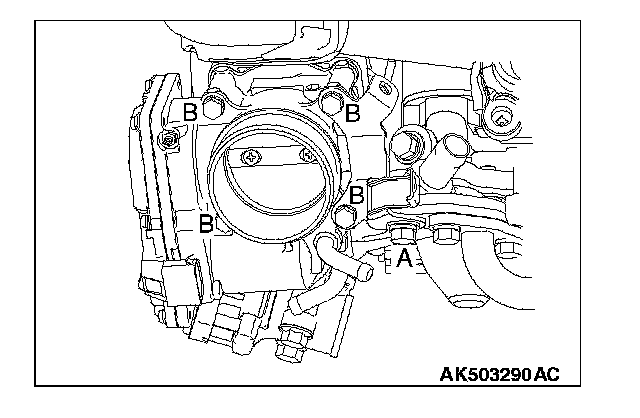

Throttle body
Tightening torque: A 20 ± 2 Nm (15 ± 1 ft. lb.)
Tightening torque: B 9.5 ± 2.5 Nm (84 ± 22 in. lb.)
Temporarily torque 3.5 ± 1.5 Nm (31 ± 13 in. lb.)
Tightening torque 20 ± 2 Nm (15 ± 1 ft. lb.)
Throttle body
Tightening torque: A 20 ± 2 Nm (15 ± 1 ft. lb.)
Tightening torque: B 9.5 ± 2.5 Nm (84 ± 22 in. lb.)
