Removal and Replacement

KNOCK SENSOR

REMOVAL AND INSTALLATION

[2.4L ENGINE]

CAUTION:
- When the knock sensor replacement is performed, use scan tool MB991958 to initialize the learning value.
- Do not drop or hit the knock sensor against other components. Internal damage may result, and the knock sensor will need to be replaced.

Pre-removal & Post-installation Operation:

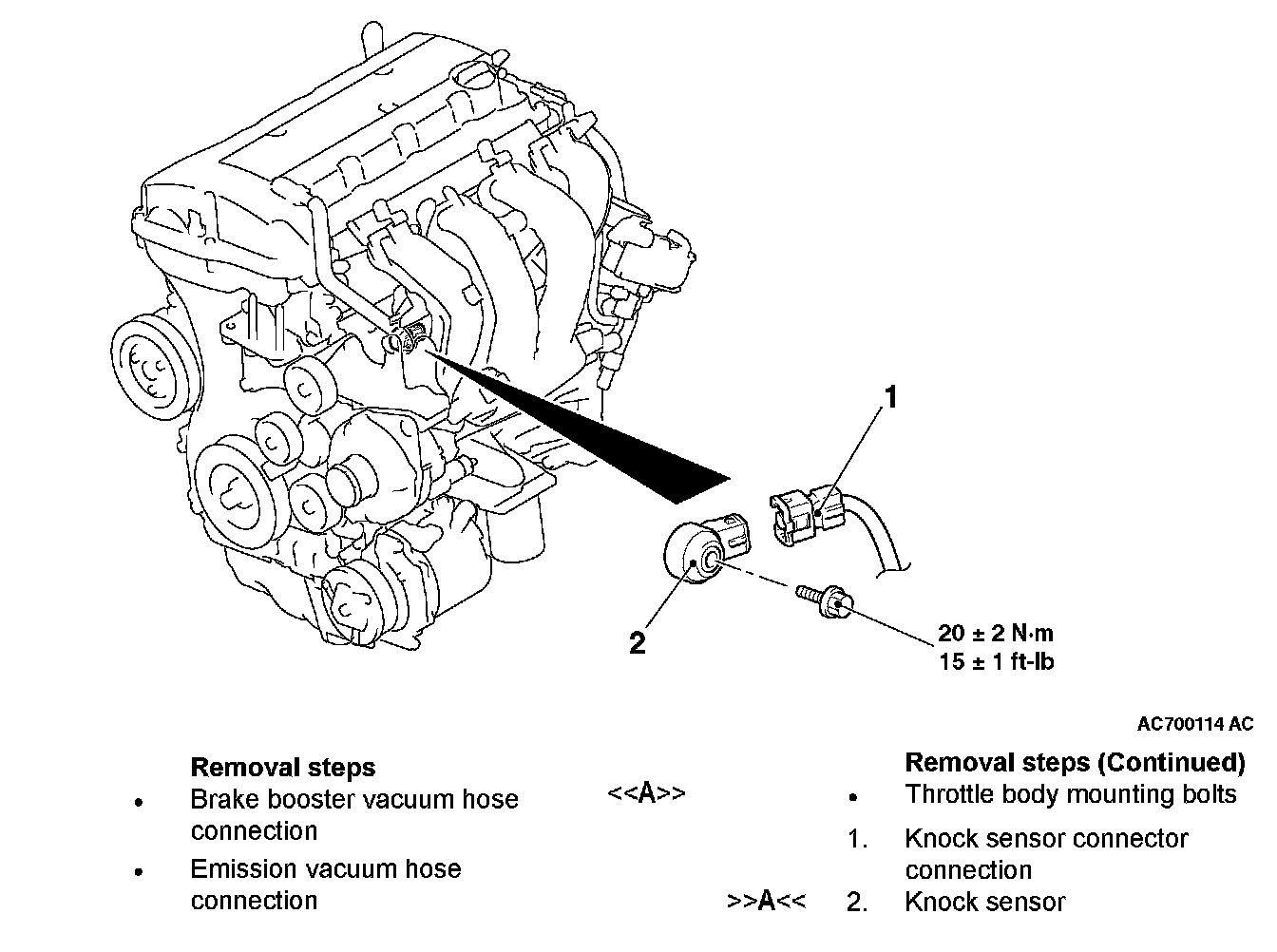

Removal Steps 1-2:

REMOVAL SERVICE POINT

]]A[[ THROTTLE BODY MOUNTING BOLTS REMOVAL
Remove the throttle body mounting bolts and put the throttle body aside so as not to interfere the knock sensor connector disconnection.

INSTALLATION SERVICE POINT

]]A[[ KNOCK SENSOR INSTALLATION

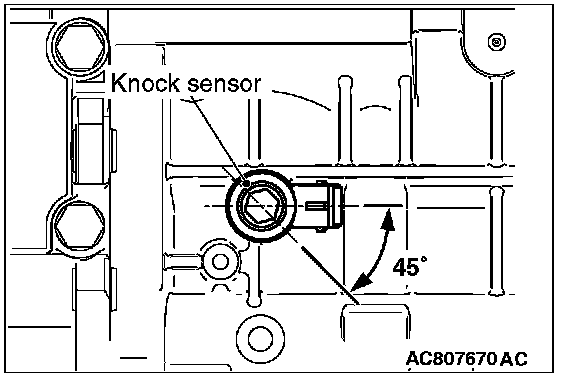

Set the connector of the knock sensor to the area shown in the figure, and tighten the knock sensor to the specified torque.

Tightening torque: 20 ± 2 N.m (15 ± 1 ft-lb)
