Exhaust Manifold: Service and Repair
EXHAUST MANIFOLD
[2.4L ENGINE]
REMOVAL AND INSTALLATION

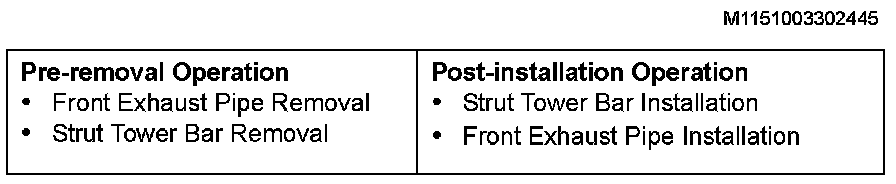

Pre-removal And Post-installation Operation:

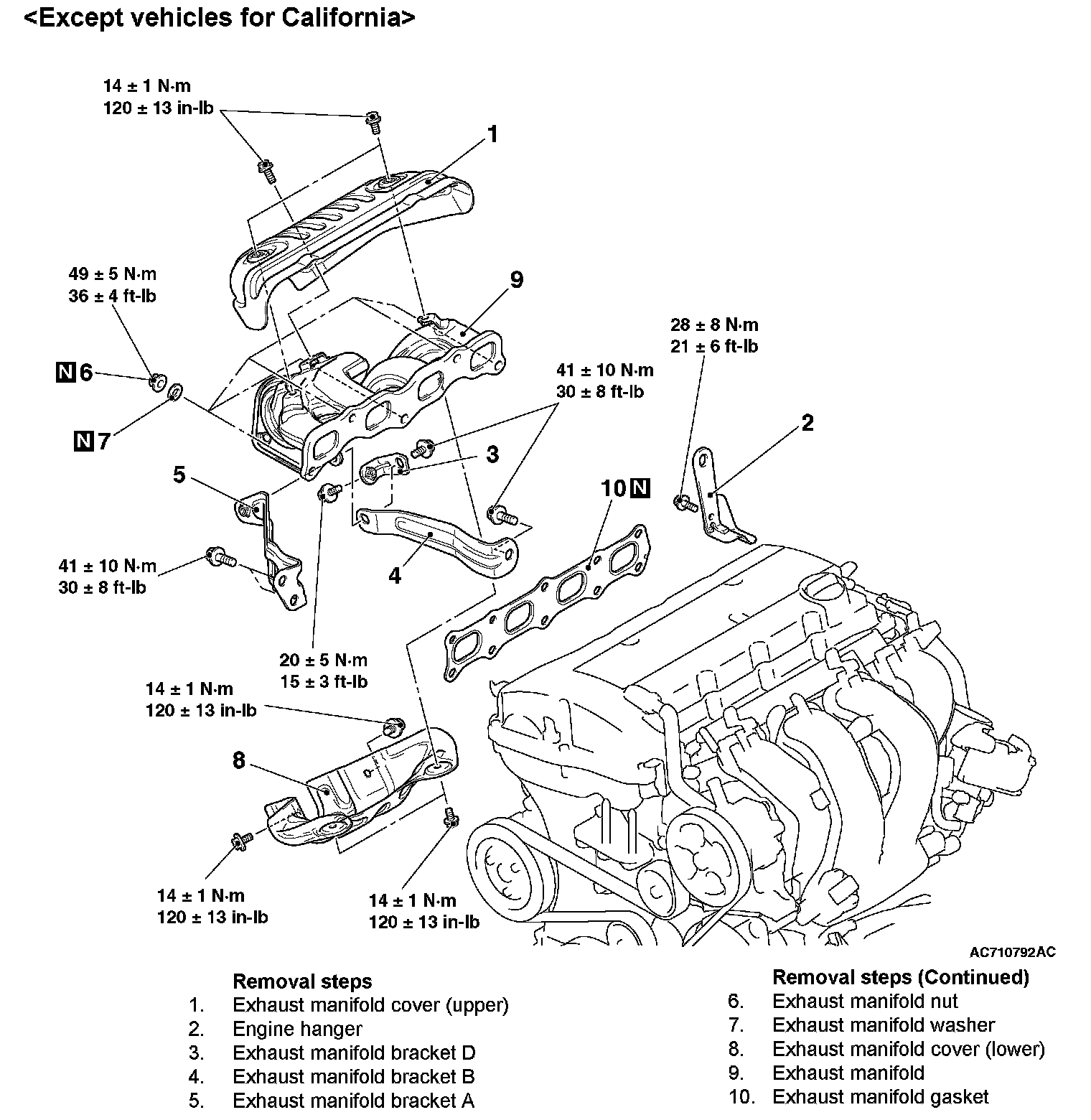

Removal Steps 1-10:
Removal Steps 1-10:
