Exhaust Manifold
EXHAUST MANIFOLDREMOVAL AND INSTALLATION

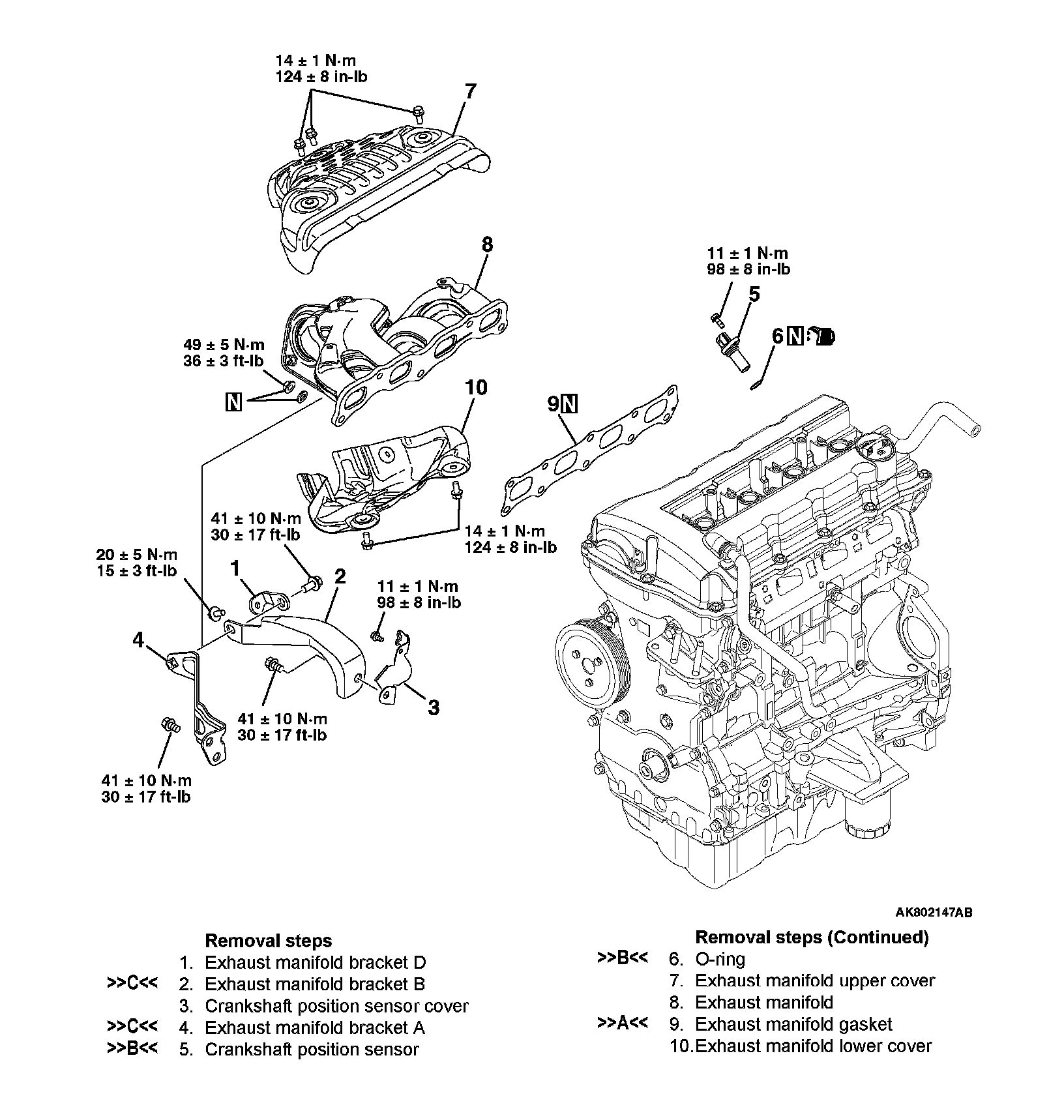

[Except vehicles for California]
Removal Steps 1-10:

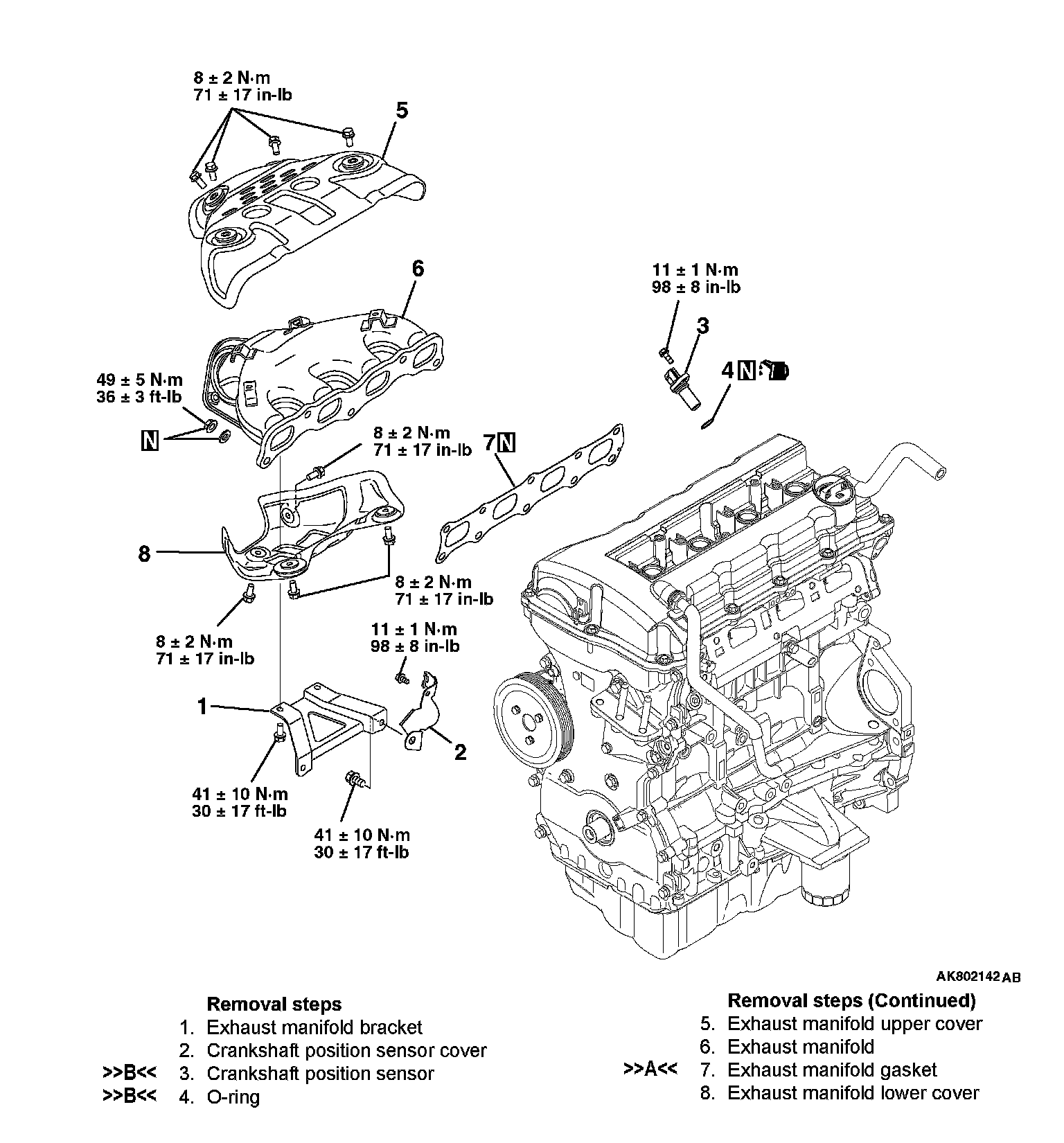

[Vehicles for California]
Removal Steps 1-8:
INSTALLATION SERVICE POINTS
[A] EXHAUST MANIFOLD GASKET INSTALLATION
CAUTION
The exhaust manifold gasket, washers and nuts must not be reused.
[B] CRANKSHAFT POSITION SENSOR O-RING INSTALLATION
CAUTION
^ Do not apply a force such as torsion or twist to the O-ring during assembly of the sensor.
^ Assemble the sensor, taking care not to give a shock to it.
^ Do not use a sensor that has fallen down.
Tighten the crank angle sensor to the specified torque.
Tightening torque: 11 ± 1 Nm (98 ± 8 in. lb.)

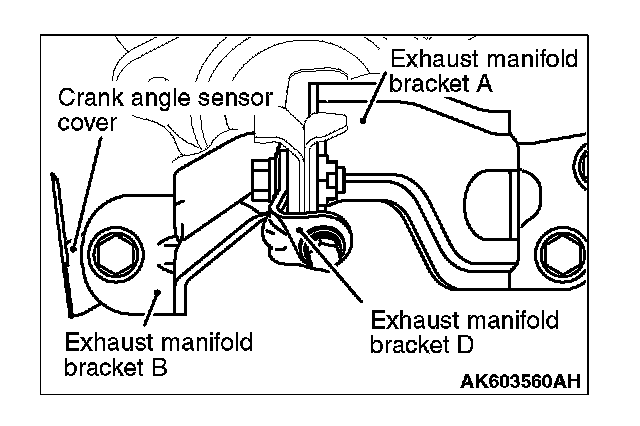

[C] EXHAUST MANIFOLD BRACKET INSTALLATION
Make sure that exhaust manifold bracket A is in intimate contact with the exhaust manifold and cylinder block, and then tighten it to the specified tightening torque.
Tightening torque:
M10: 41 ± 10 Nm (30 ±7 ft. lb.)
M8: 20 ±5 Nm (15 ±3 ft. lb.)
