Cruise Control: Service and Repair
CRUISE CONTROL SWITCH
REMOVAL AND INSTALLATION [2.4L ENGINE]
WARNING: Before removing the driver's air bag module assembly, always refer to Service Precautions and Driver's Air Bag Module and Clock Spring.

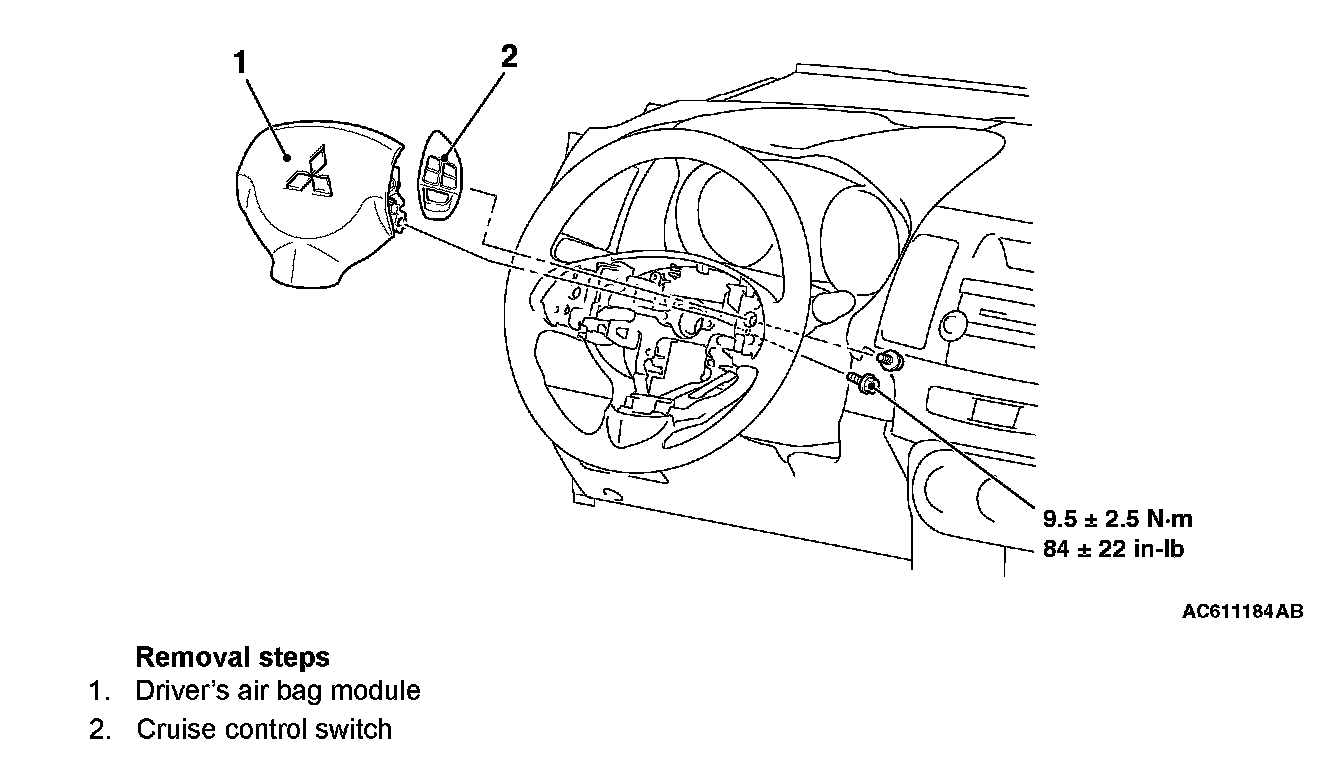

Removal Steps 1-2:
