Shift Lever Test

DIAGNOSIS [SHIFT LEVER]

DIAGNOSIS FUNCTION

WARNING INDICATOR

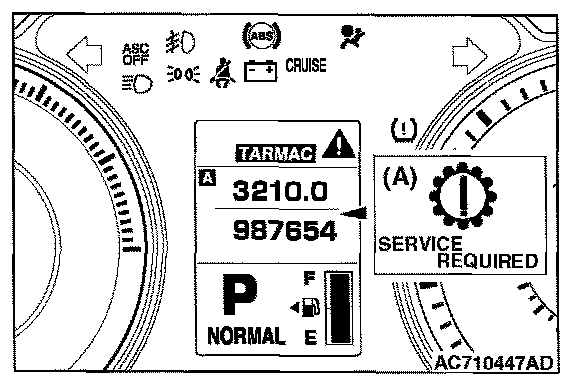

When a malfunction occurs to the shift lever, the figure (A) remains displayed on the information screen of multi information display.
If the figure (A) remains displayed on the information screen of multi information display, check whether or not a diagnostic trouble code is set.

FAIL-SAFE FUNCTION
If an abnormality occurs to the signal of sensors, switches, solenoids, or others, the shift lever-ECU performs a control for the driver safety and system protection. The control contents are as follows.
