16-Inch Front Disc Brake

DISASSEMBLY SERVICE POINT

[A] PISTON BOOT/PISTON REMOVAL

CAUTION
^ Blow air little by little to remove the pistons. The pistons will rush out if a force of air is applied suddenly.
^ If one piston has been removed completely, it will become impossible to remove the second piston.

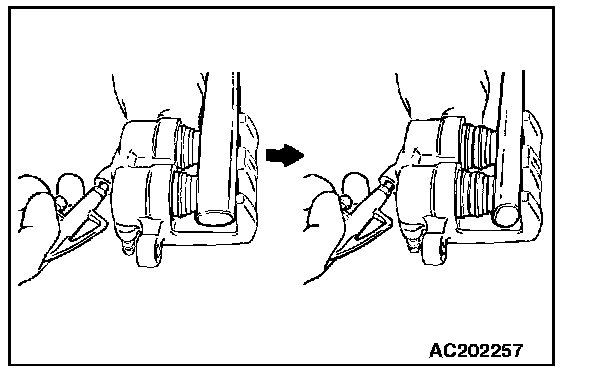

Remove the pistons and the piston boots by pumping in air from the brake hose connection. Be sure to use the handle of a plastic hammer and adjust the height of the two pistons so that the pistons protrude evenly.
