Horn: Service and Repair

HORN

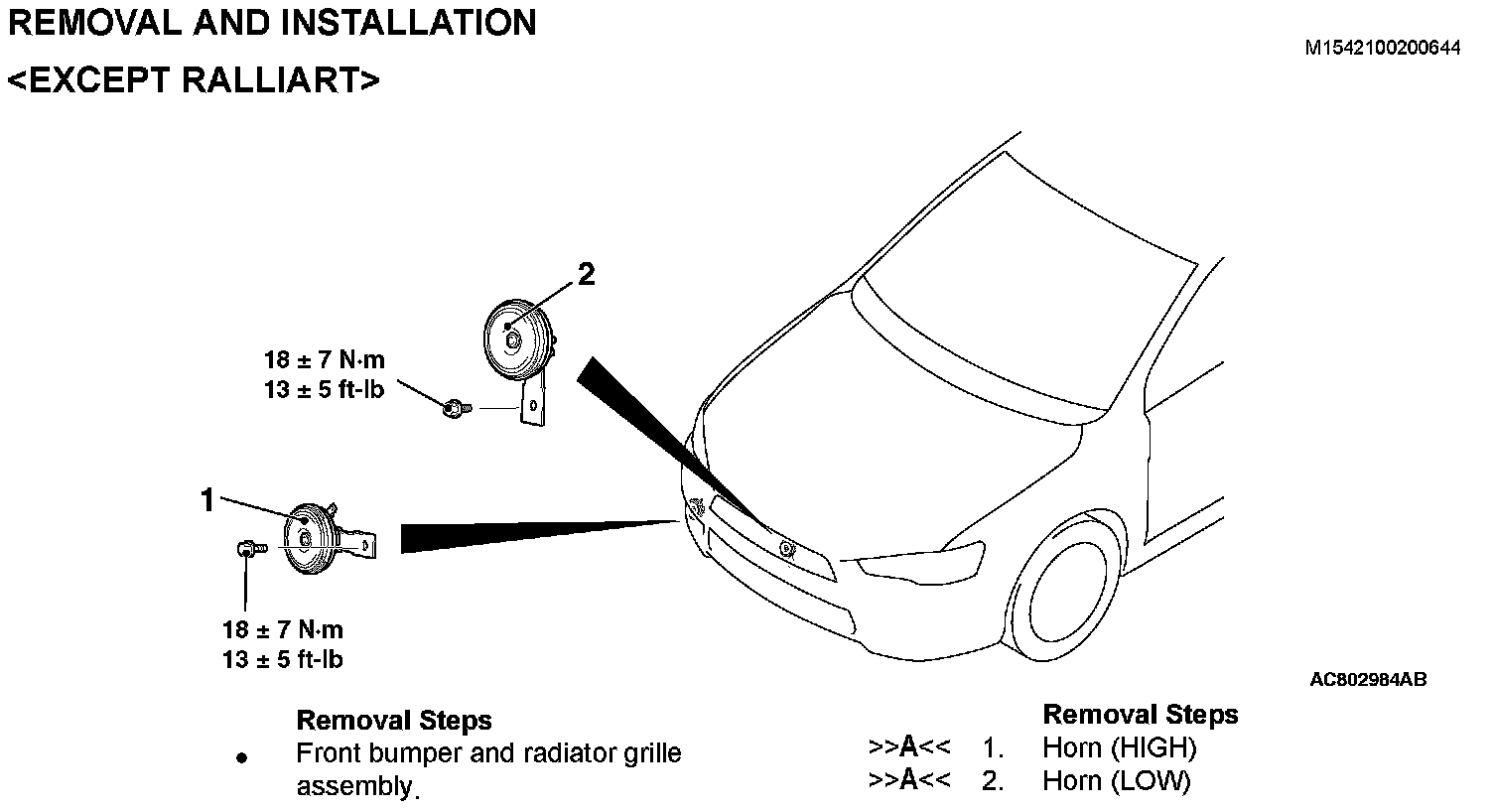

REMOVAL AND INSTALLATION

[EXCEPT RALLIART]

Removal Steps 1-2:

INSTALLATION SERVICE POINT

[[A]] HORN (LOW)/HORN (HIGH) INSTALLATION

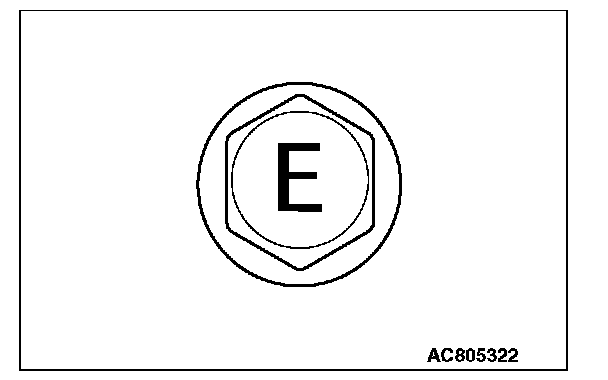

Use the ground bolts as the mounting bolts for horn (LOW) and horn (HIGH). The ground bolts have "E" mark on the bolt heads.
