Exhaust Manifold

EXHAUST MANIFOLD

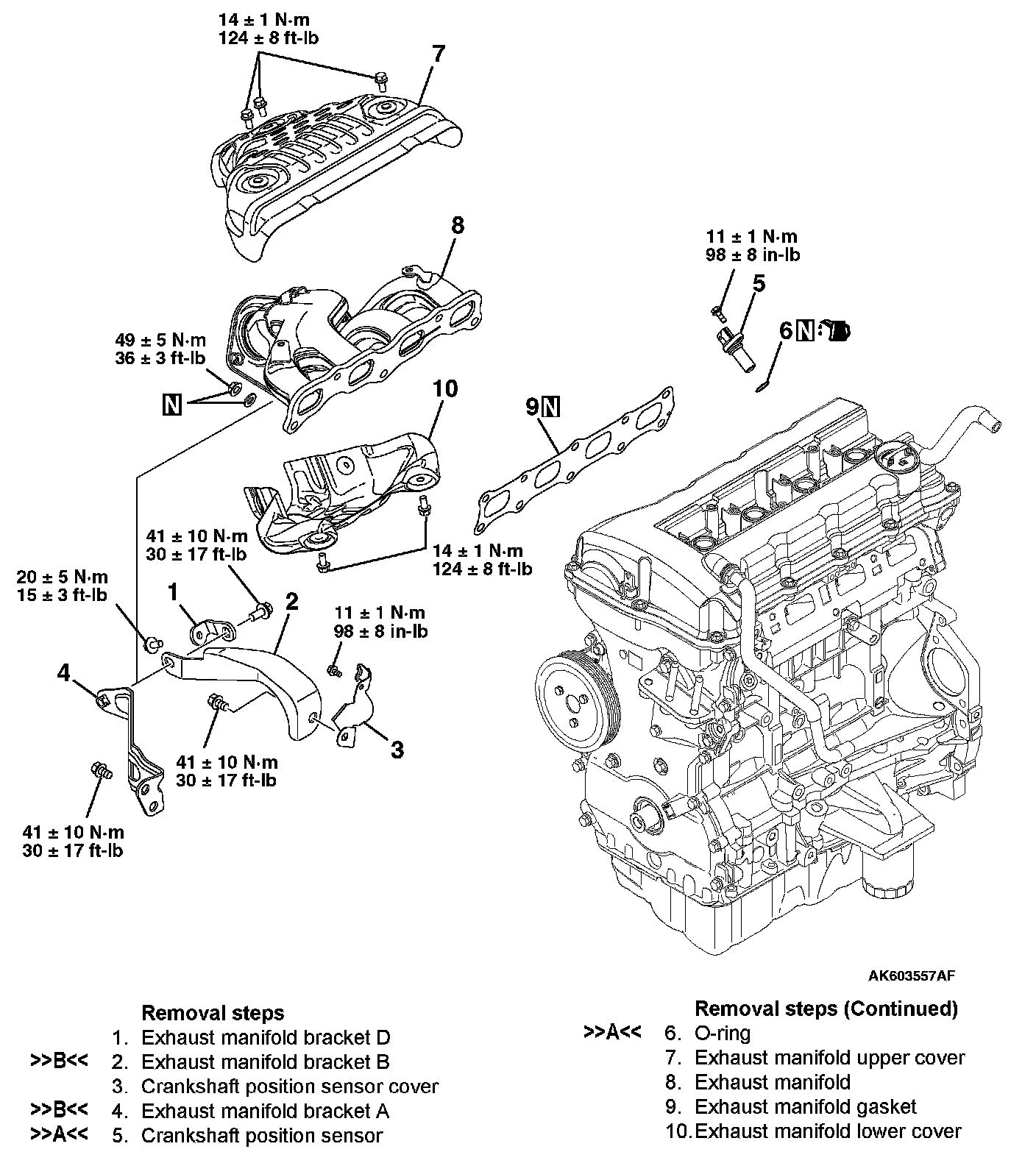

REMOVAL AND INSTALLATION

Removal Steps 1-10:

INSTALLATION SERVICE POINTS

[A] CRANKSHAFT POSITION SENSOR / O-RING INSTALLATION

CAUTION:
^ Do not apply a force such as torsion or twist to the O-ring during assembly of the sensor.
^ Assemble the sensor, taking care not to give a shock to it.
^ Do not use a sensor that has fallen down.

Tighten the crankshaft position sensor to the specified tightening torque of 11 ± 1 Nm (98 ± 8 in-lb).

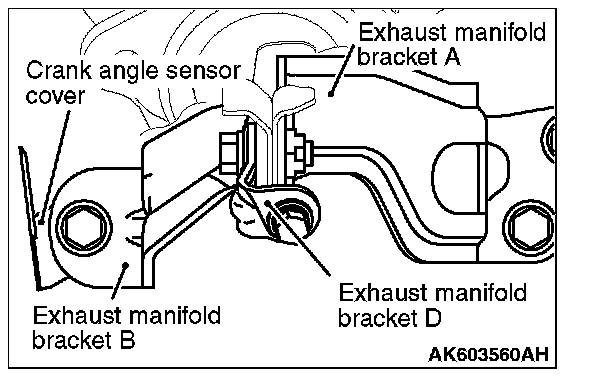

[B] EXHAUST MANIFOLD BRACKET INSTALLATION

CAUTION:
The exhaust manifold gasket, washers and nuts must not be reused.





Make sure that exhaust manifold bracket A is in intimate contact with the exhaust manifold and cylinder block, and then tighten it to the specified tightening torque.
Tightening torque:
M10 � 30: 41 ± 10 Nm (30 ± 7 ft-lb)
M8 � 20: 20 ± 5 Nm (15 ± 3 ft-lb)
