Power Window Main Switch
Power Window Main Switch

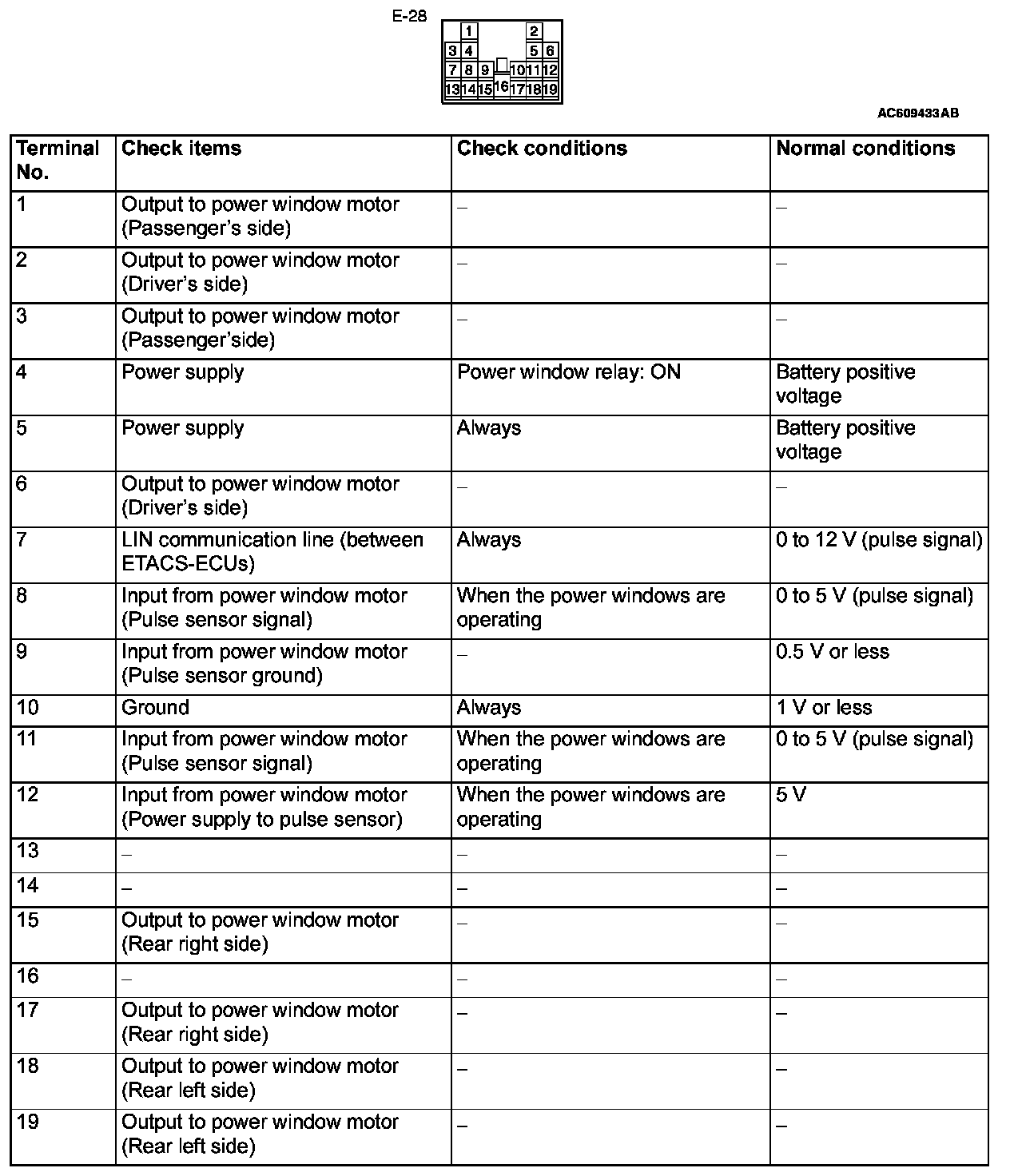

CHECK AT ECU TERMINAL
POWER WINDOW SWITCH
TERMINAL CHECK
POWER WINDOW MAIN SWITCH
Power Window Main Switch:
