Bellcrank

BELLCRANK

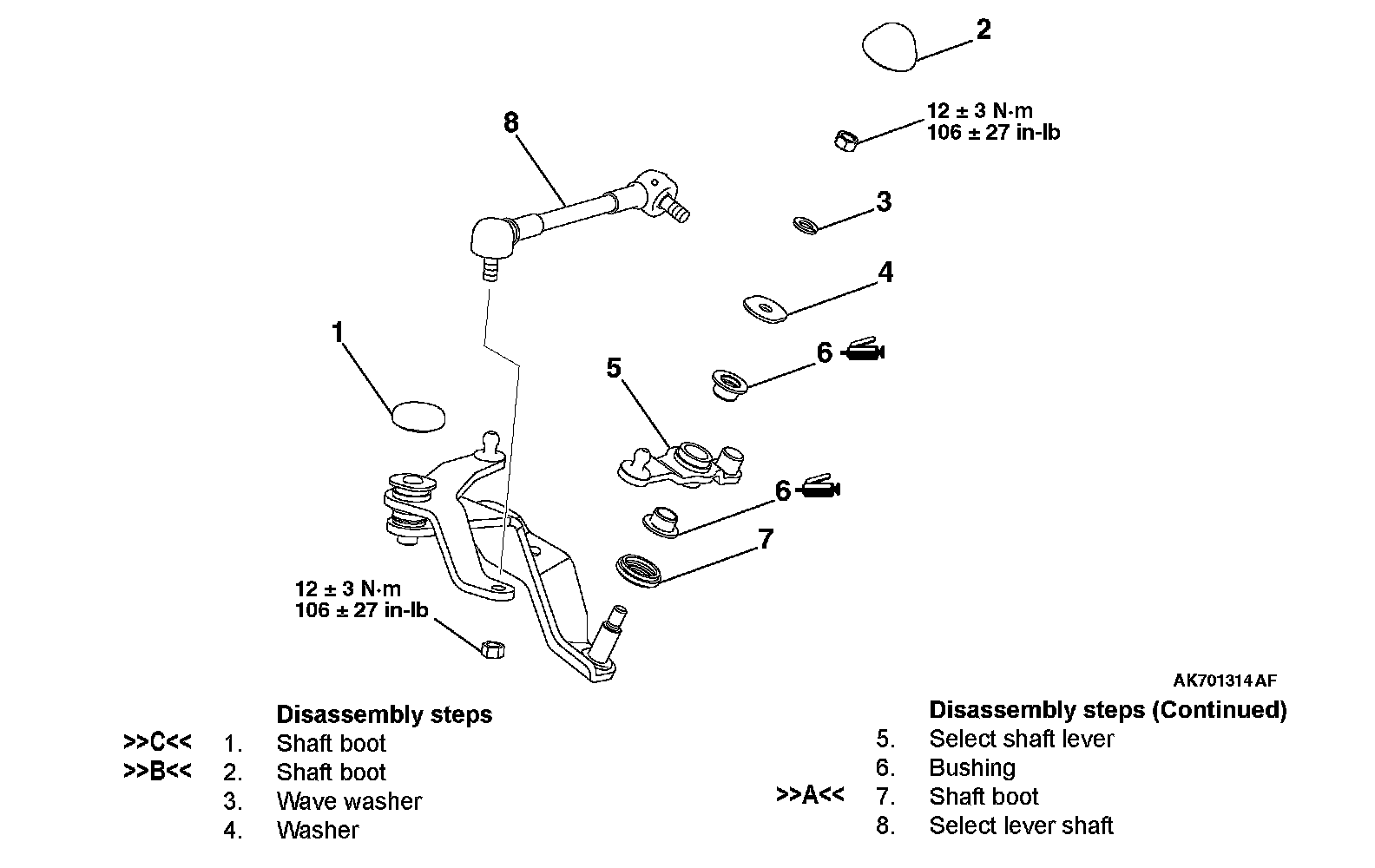

BELLCRANK DISASSEMBLY AND ASSEMBLY

Disassembly Steps 1-8:

ASSEMBLY SERVICE POINTS

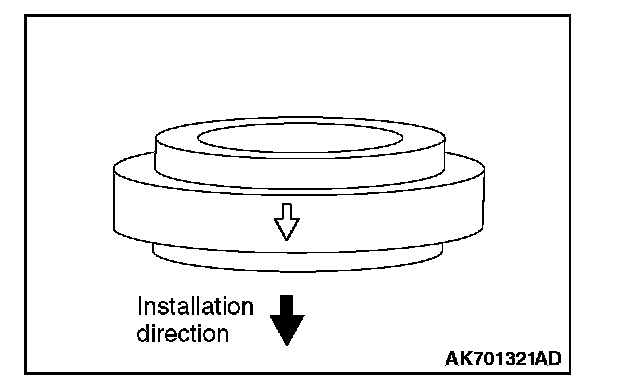

[A] SHAFT BOOT INSTALLATION





Install the shaft boot so that the stamp can be oriented as shown in the illustration.

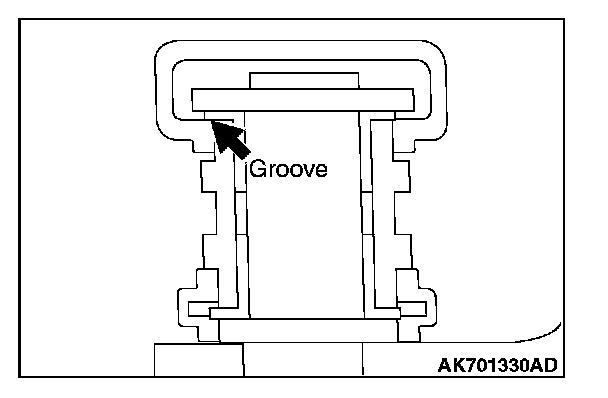

[B] SHAFT BOOT INSTALLATION





Fit the shaft boot into the groove.

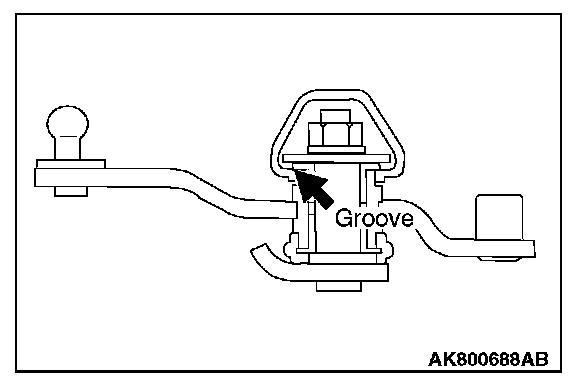

[C] SHAFT BOOT INSTALLATION





Fit the shaft boot into the groove.
