Home >> Mitsubishi >> 2010 >> Lancer L4-2.0L (4B11) >> Repair and Diagnosis >> Transmission and Drivetrain >> Continuously Variable Transmission/Transaxle >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Road Test

Road Test

ROAD TEST

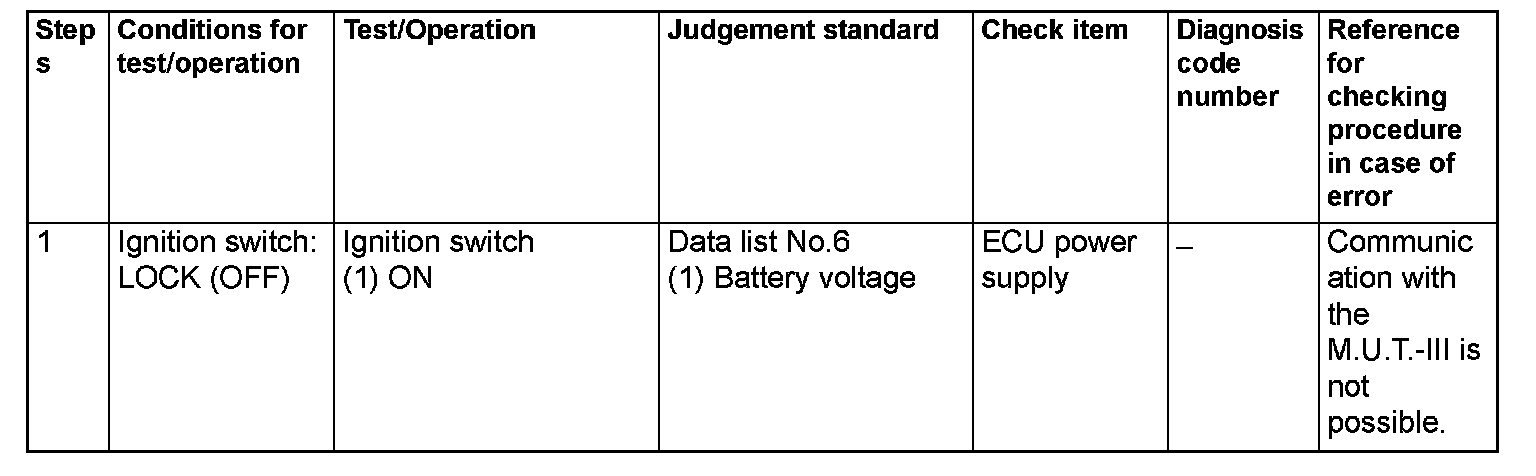

Steps 1 (Part 1):

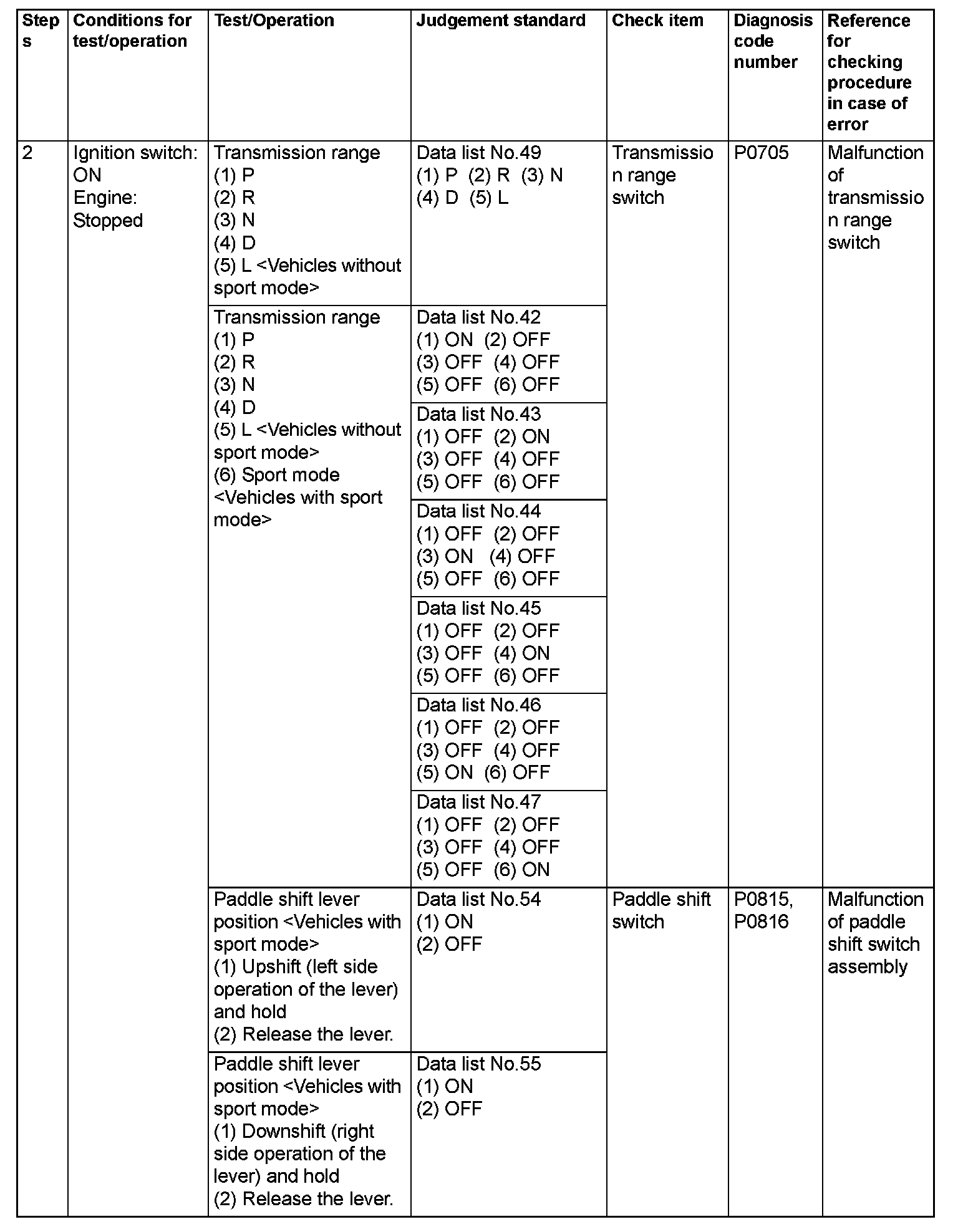

Steps 2 (Part 2):

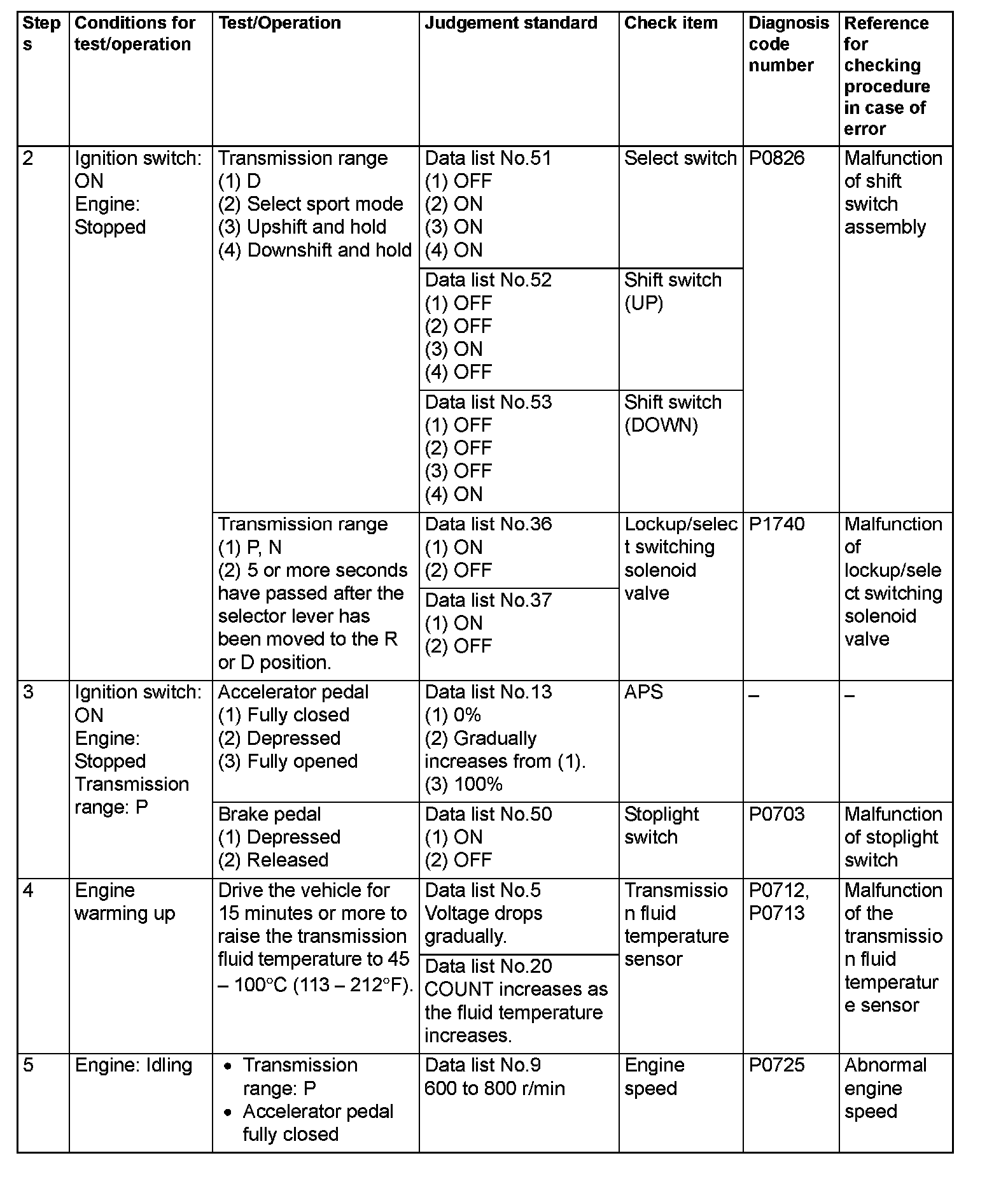

Steps 2-5 (Part 3):

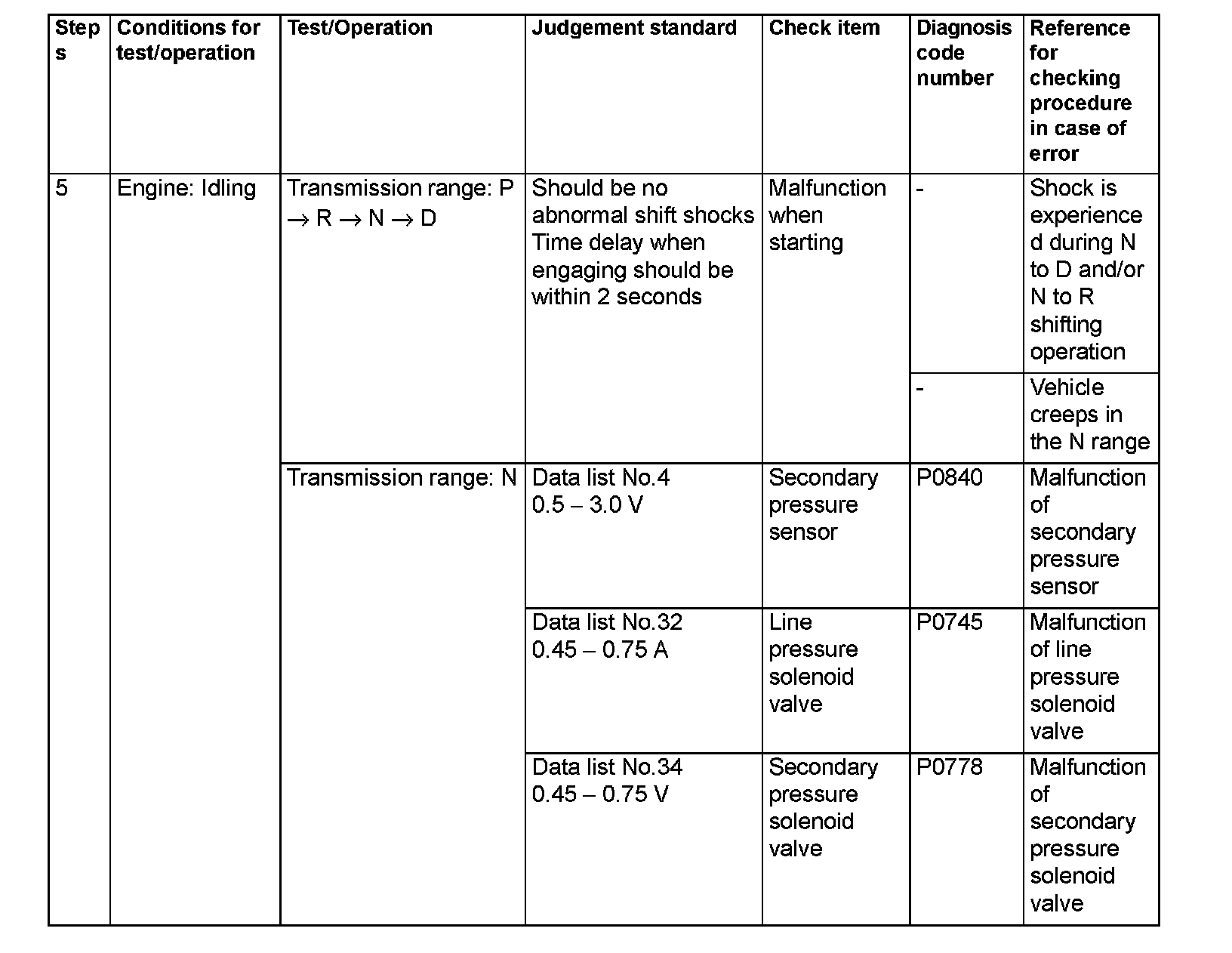

Steps 5 (Part 4):

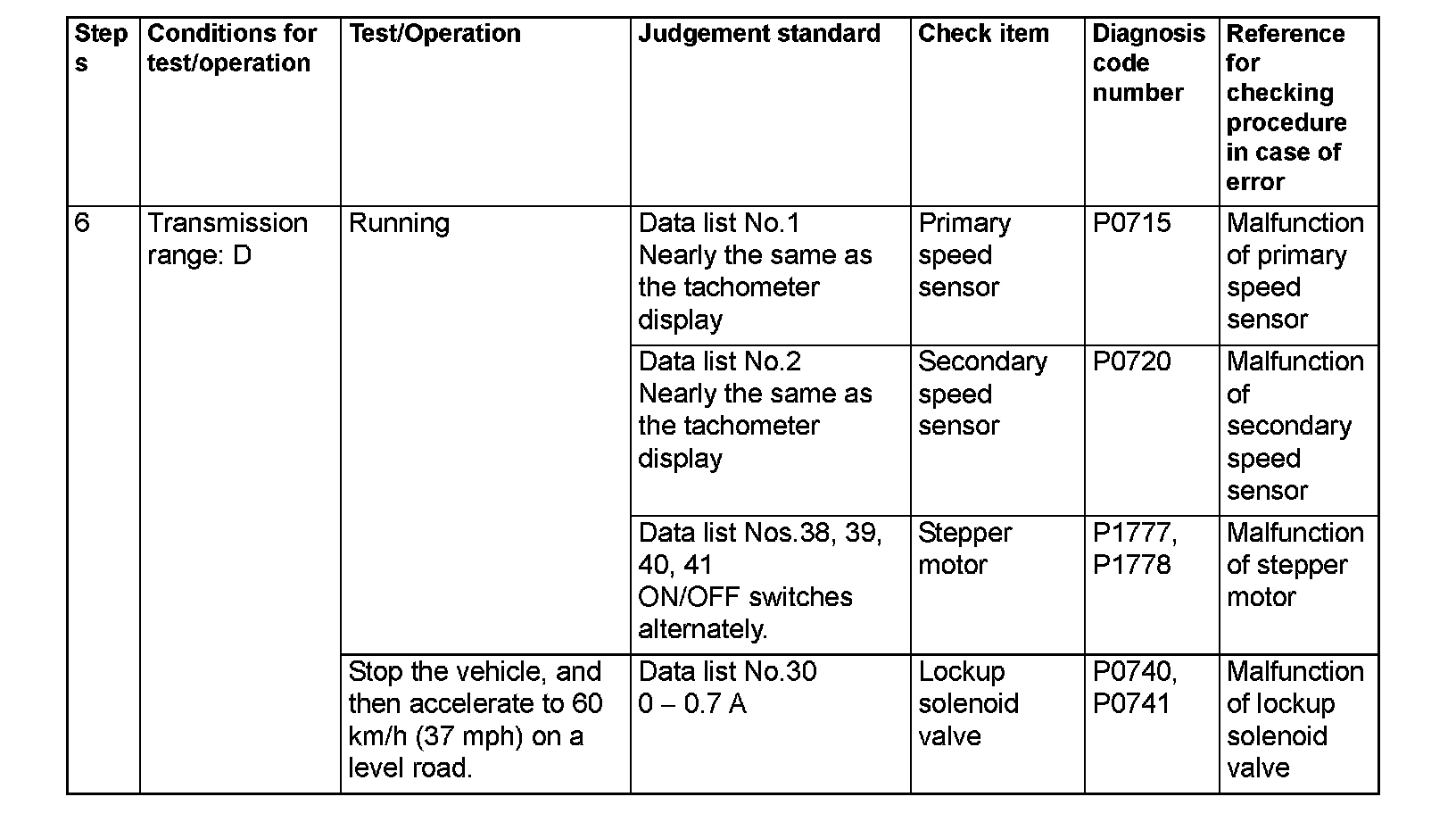

Steps 6 (Part 5):

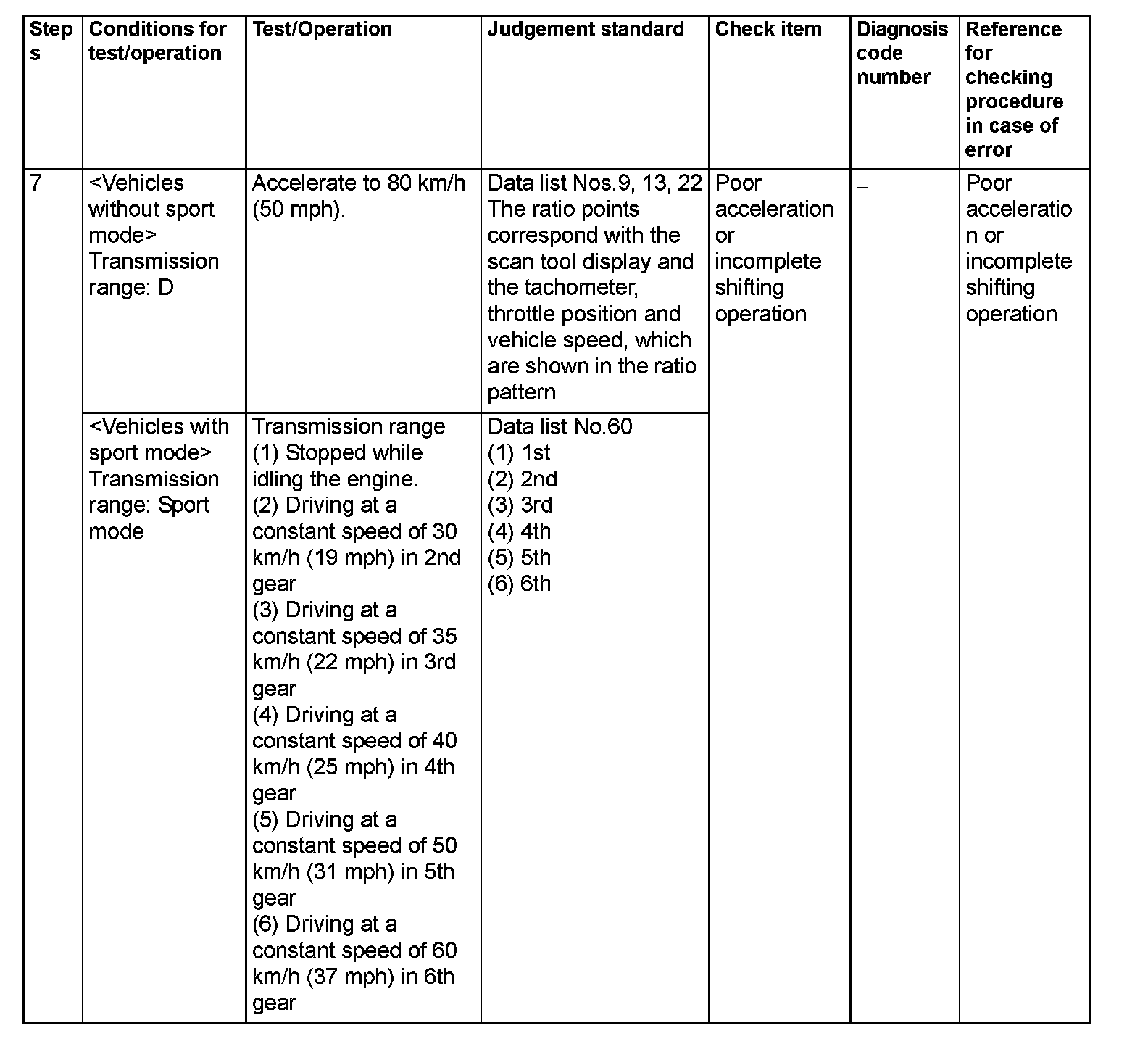

Steps 7 (Part 6):
