Reduction Gear Sub-Assembly
REDUCTION GEAR SUB-ASSEMBLYMeasure the inner race press-fit shaft diameter of reduction gear sub-assembly, and replace the assembly if the diameter does not meet the standard value.
Standard values
^ Converter housing side:
[diameter] 30.008 - 30.029 mm (1.1814 - 1.1822 in)
^ Transaxle case side:
[diameter] 30.008 - 30.029 mm (1.1814 - 1.1822 in)
REDUCTION GEAR SUB-ASSEMBLY
ASSEMBLY
CAUTION
The reduction gear sub-assembly can only be assembled, not disassembled.
Assembly Steps 1-2:
Required special tools:
^ MD998812: Installer Cap
^ MD998813: Installer-100
^ MD998819: Installer adapter (40)
ASSEMBLY SERVICE POINT
[A] REDUCTION PINION GEAR / IDLER GEAR INSTALLATION
CAUTION

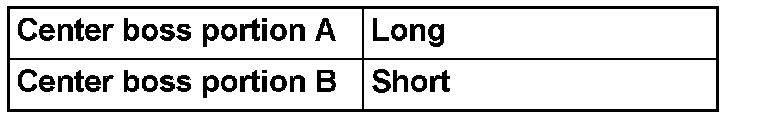

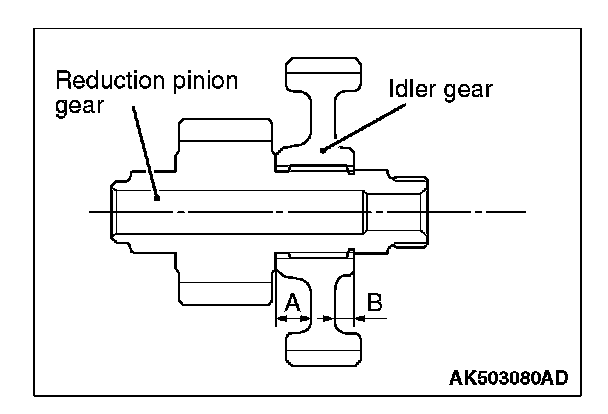

When attaching the idler gear to the reduction pinion gear, make sure the center boss portion A faces the reduction pinion gear.

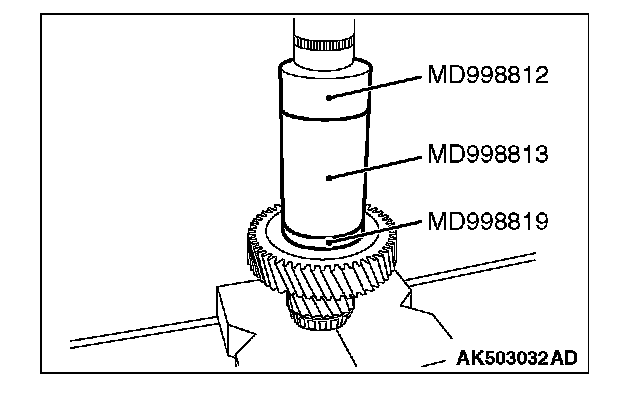

Using the special tools MD998812, MD998813 and MD998819, attach the idler gear to the reduction pinion gear.
