Differential Sub-Assembly
DIFFERENTIAL SUB-ASSEMBLYASSEMBLY
CAUTION
The differential sub-assembly can only be assembled, not disassembled.
Assembly Steps 1-2:
ASSEMBLY SERVICE POINT
[A] DIFFERENTIAL CASE / FINAL GEAR INSTALLATION
CAUTION

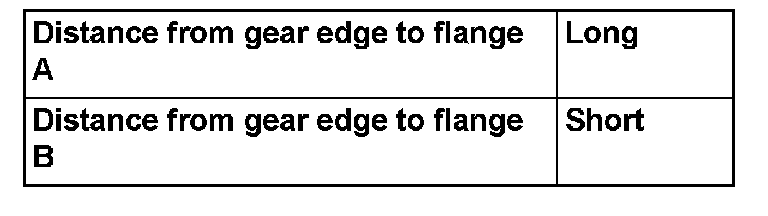

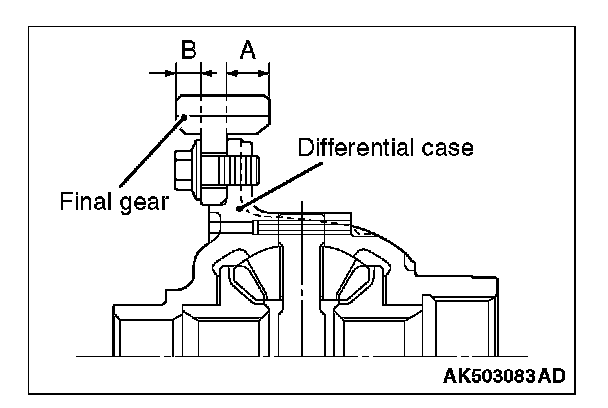

When attaching the final gear to the differential case, make sure the side with the bigger distance from the edge to the flange A face the differential case.
Install the final gear on the differential case, and tighten the fastening bolts to the specified torque.
Tightening torque: 130 Nm (96 ft-lb)
