Front Suspension

STABILIZER BAR

REMOVAL AND INSTALLATION

Post-installation Operation:

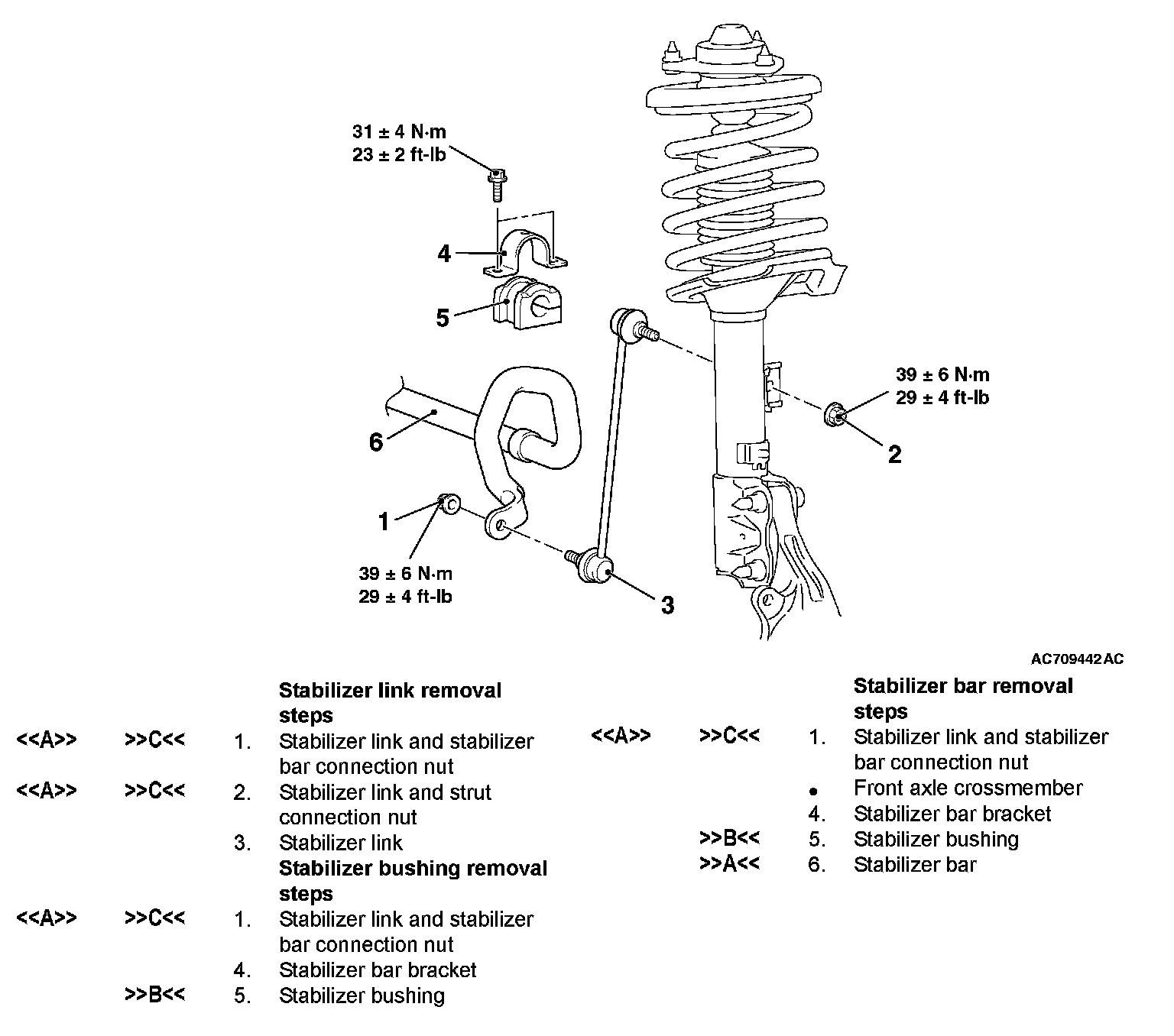

Removal Steps 1-6:

REMOVAL SERVICE POINT

[A] STABILIZER LINK AND STABILIZER BAR CONNECTION NUT/STABILIZER LINK AND STRUT CONNECTION NUT REMOVAL

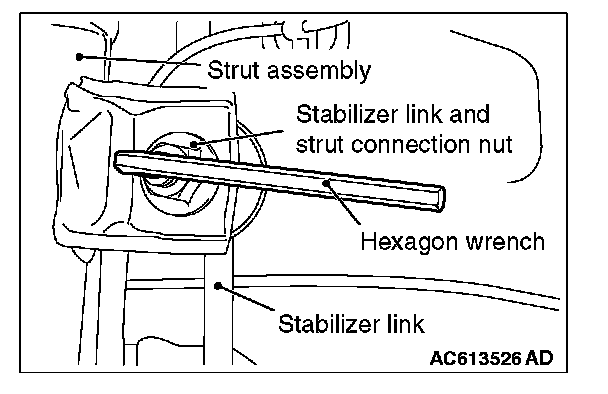

Use a hexagon wrench to remove the stabilizer link and strut connection nut as shown in the figure.

INSTALLATION SERVICE POINTS

[A] STABILIZER BAR INSTALLATION

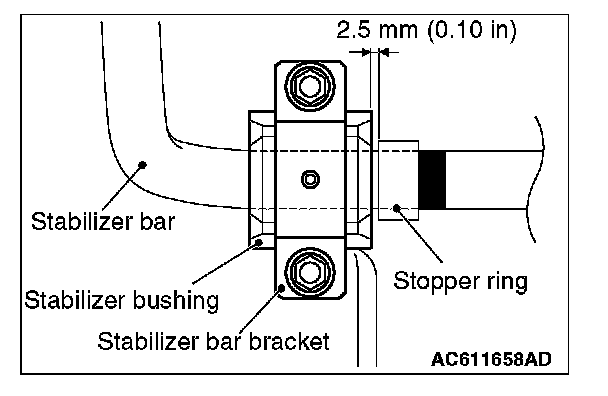

Install the stabilizer bar as shown in the figure.

[B] STABILIZER BUSHING INSTALLATION

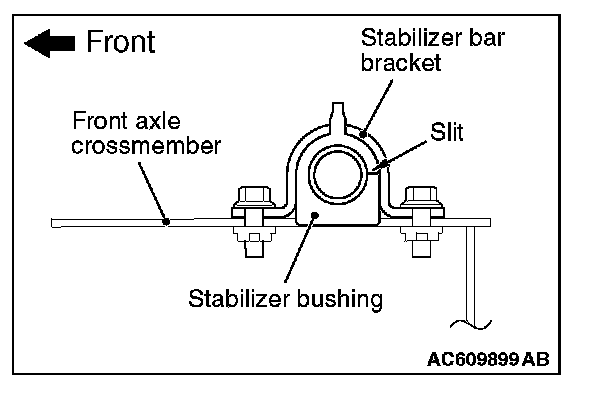

Install the stabilizer bushing as shown in the figure.

[C] STABILIZER LINK AND STRUT CONNECTION NUT/STABILIZER LINK AND STABILIZER BAR CONNECTION NUT INSTALLATION

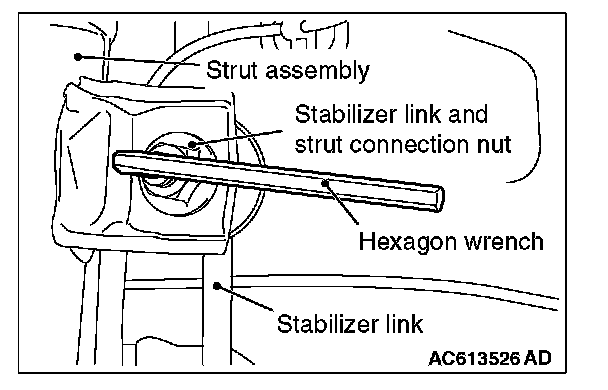

Use a hexagon wrench to install the stabilizer link and strut connection nut as shown in the figure.
