Removal and Replacement

REMOVAL AND INSTALLATION [2.0L ENGINE NON-TURBO, 2.4L ENGINE]

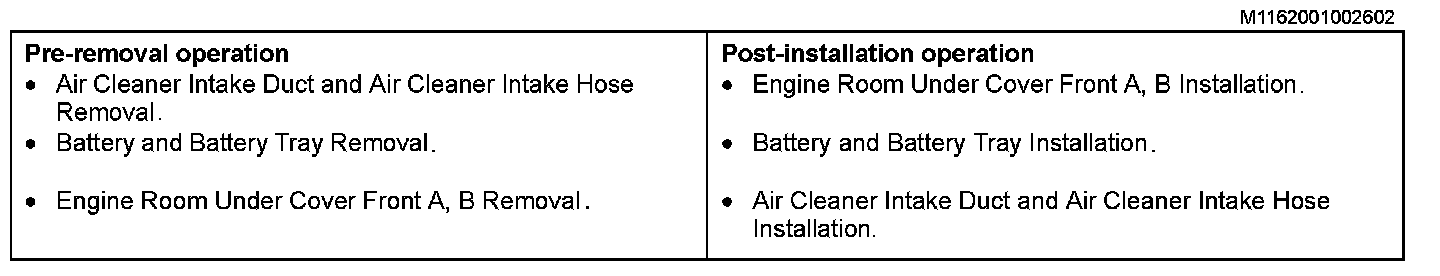

Pre-removal & Post-installation Operation:

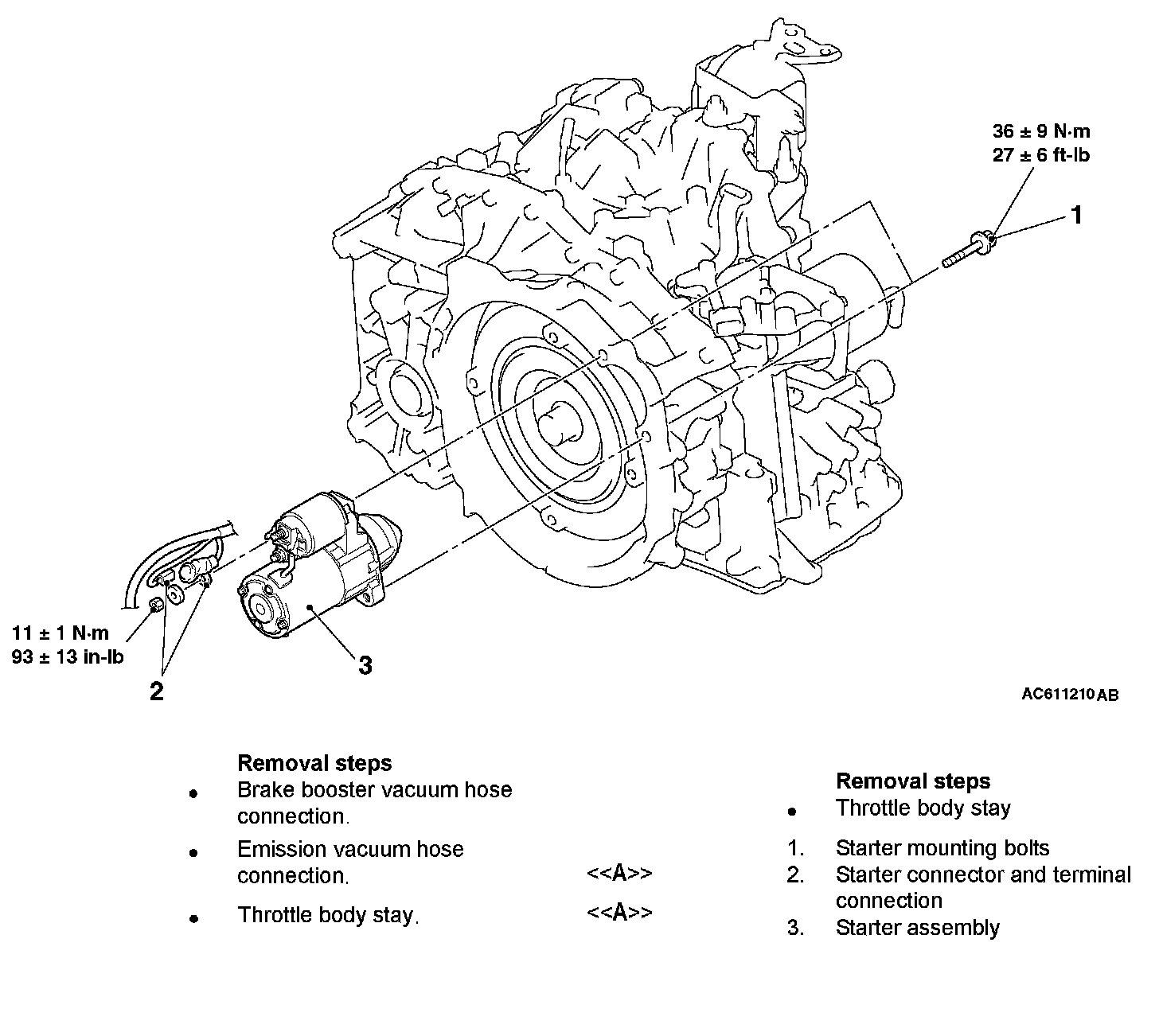

Removal Steps 1-3:

REMOVAL SERVICE POINT

[[A]] STARTER CONNECTOR AND TERMINAL/ STARTER ASSEMBLY REMOVAL
1. Slide the starter assembly, and remove the starter connector and terminal.
2. Remove the starter assembly from the lower front of the engine.
