Auxiliary Power Outlet: Tools and Equipment
ACCESSORY SOCKET AND CIGARETTE LIGHTER

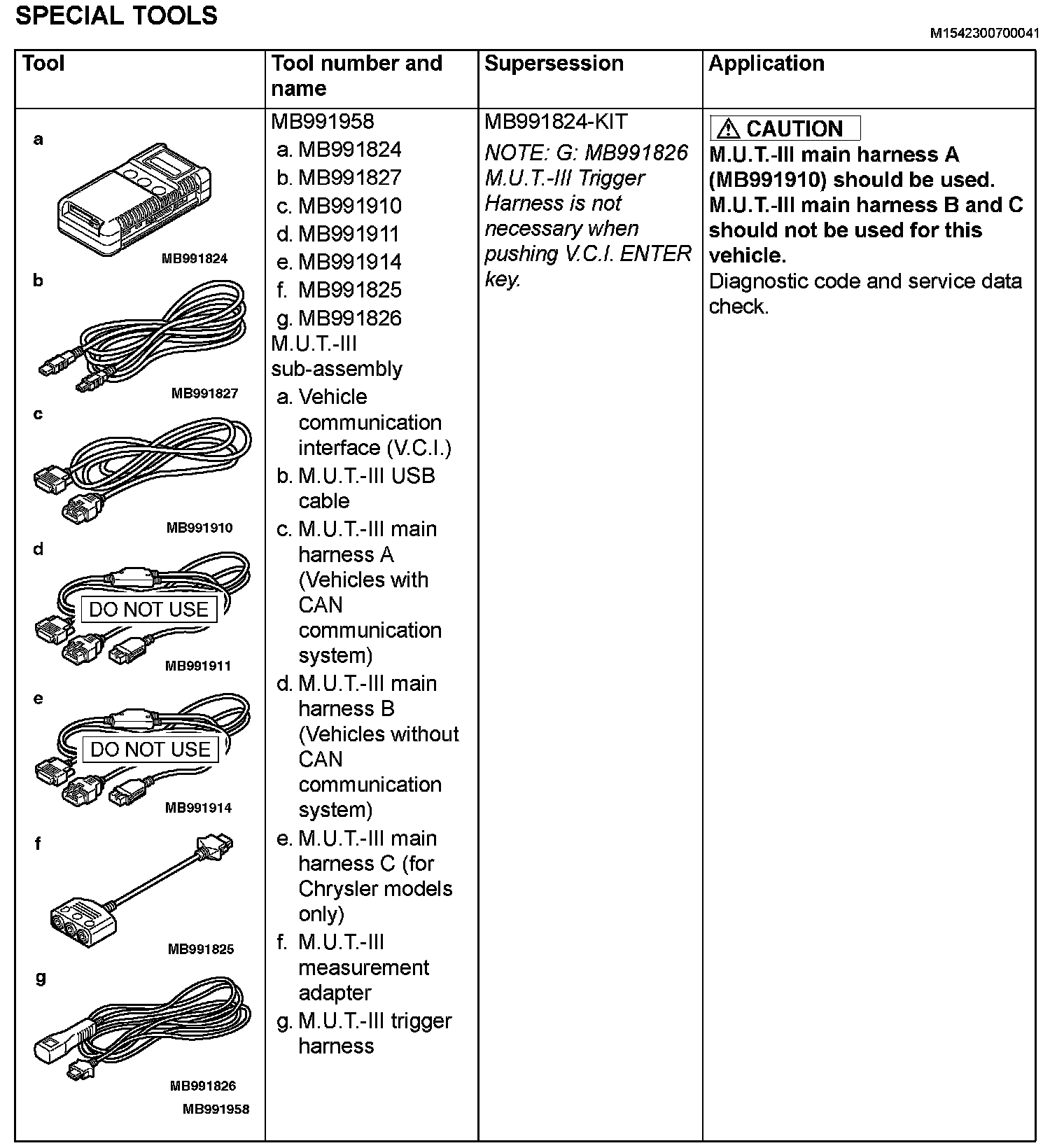

SPECIAL TOOLS

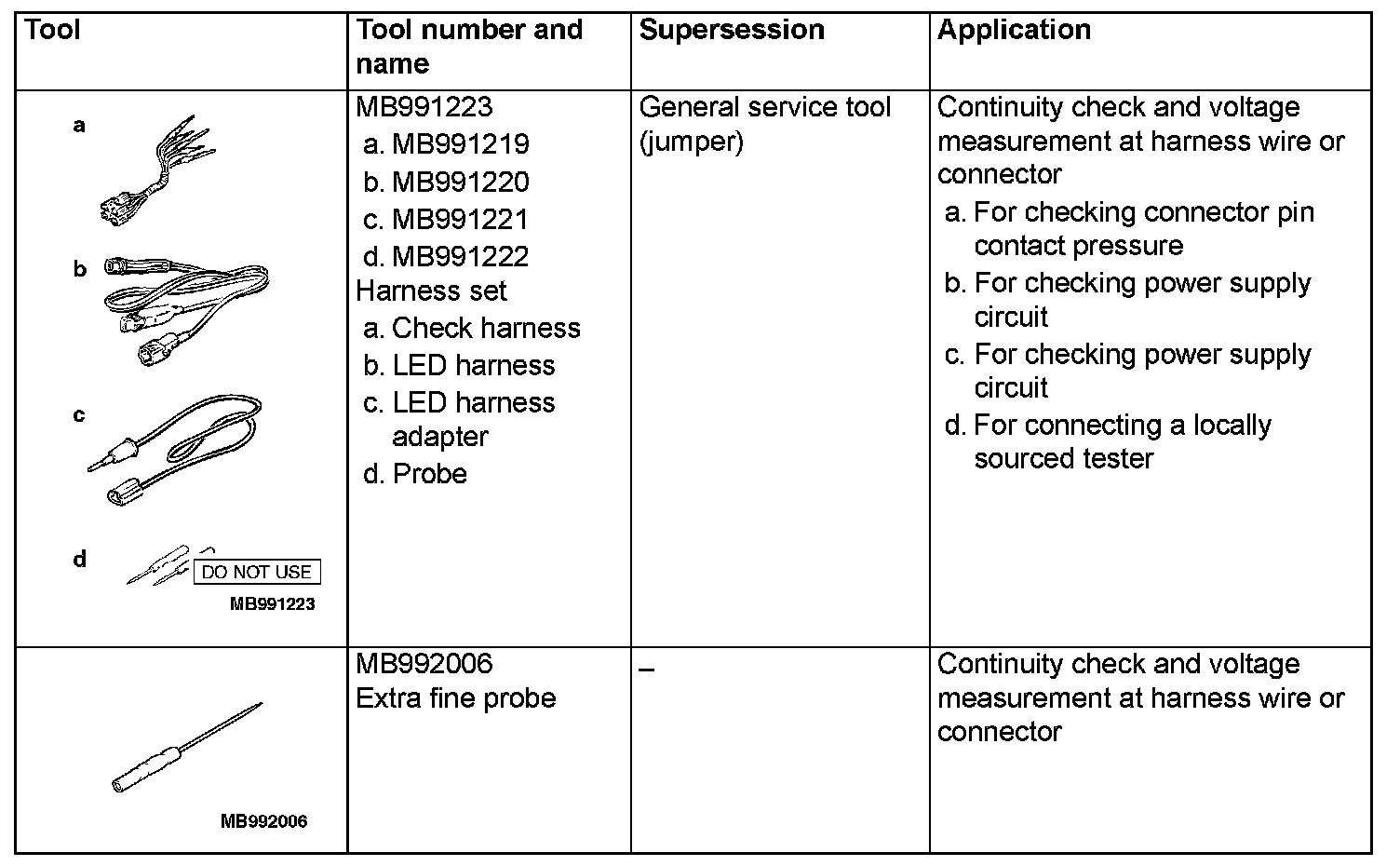

Special Tools (Part 1):
Special Tools (Part 2):
