Combination Switch
>>
Tools and Equipment
Combination Switch: Tools and Equipment
COLUMN SWITCH
SPECIAL TOOLS

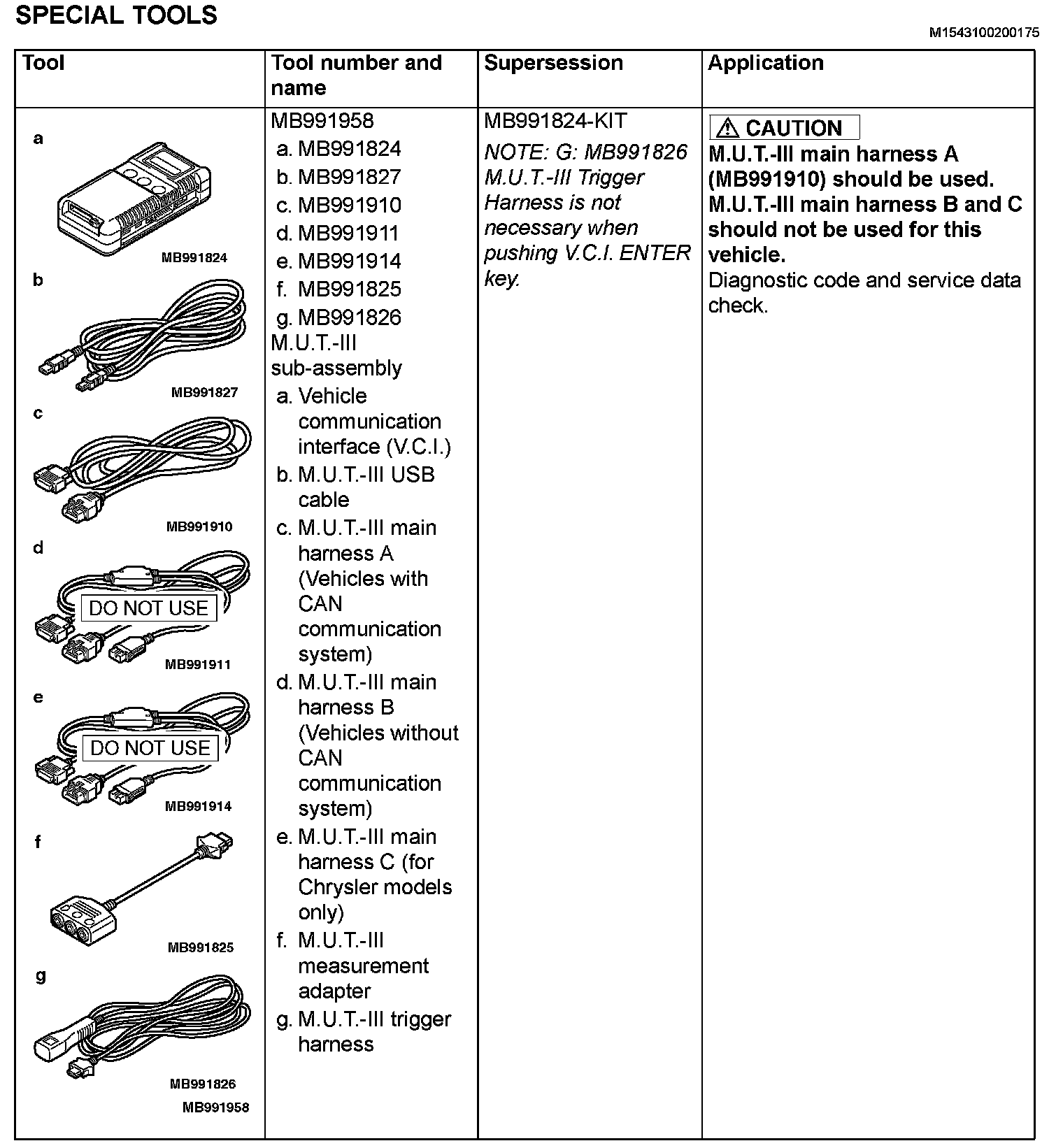

Special Tools (Part 1):

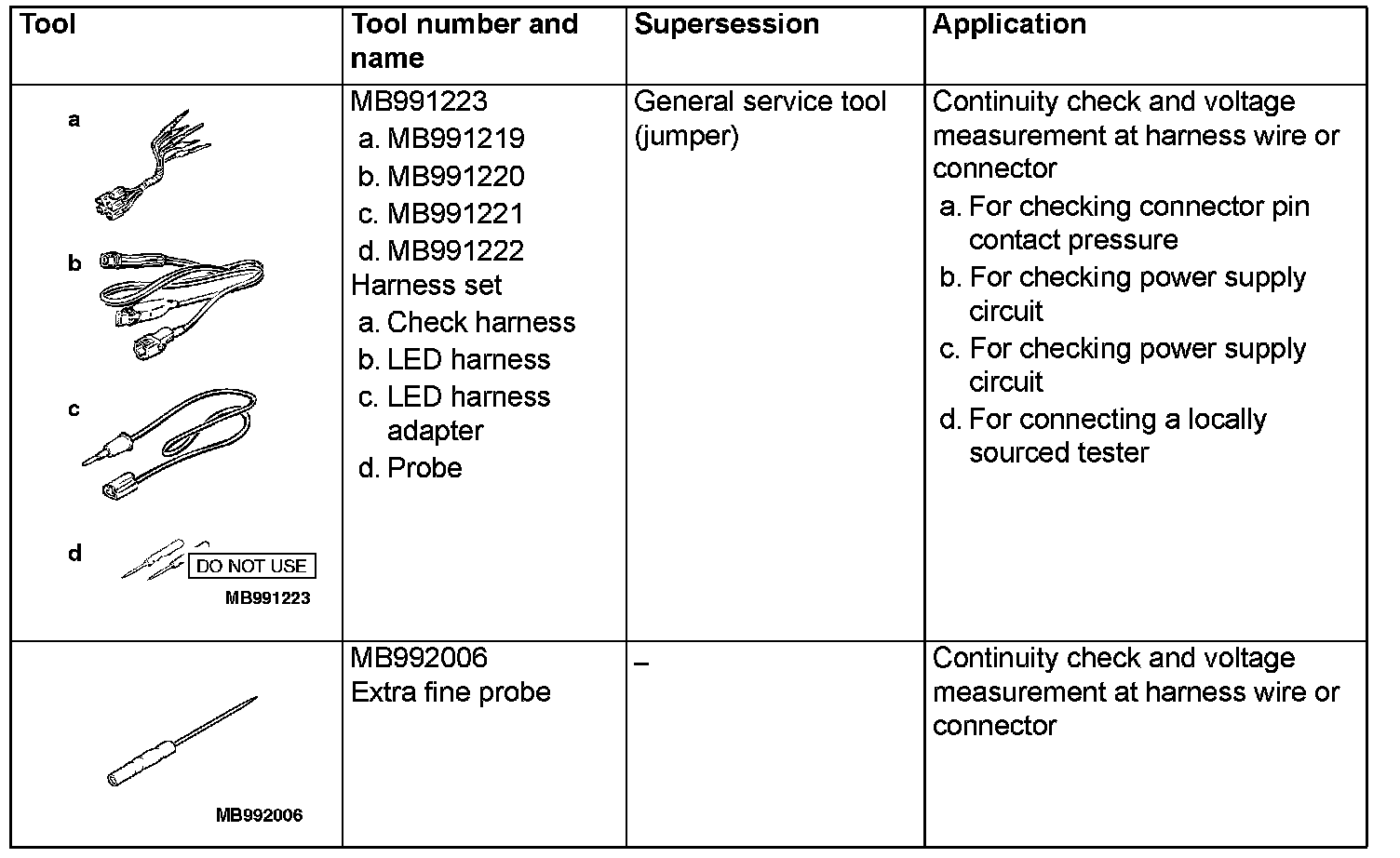

Special Tools (Part 2):
