Front Seat Belt

FRONT SEAT BELT

REMOVAL AND INSTALLATION

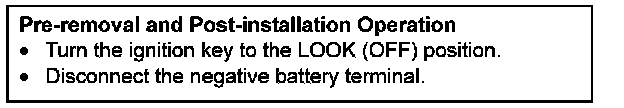

Pre-removal And Post-installation Operation:

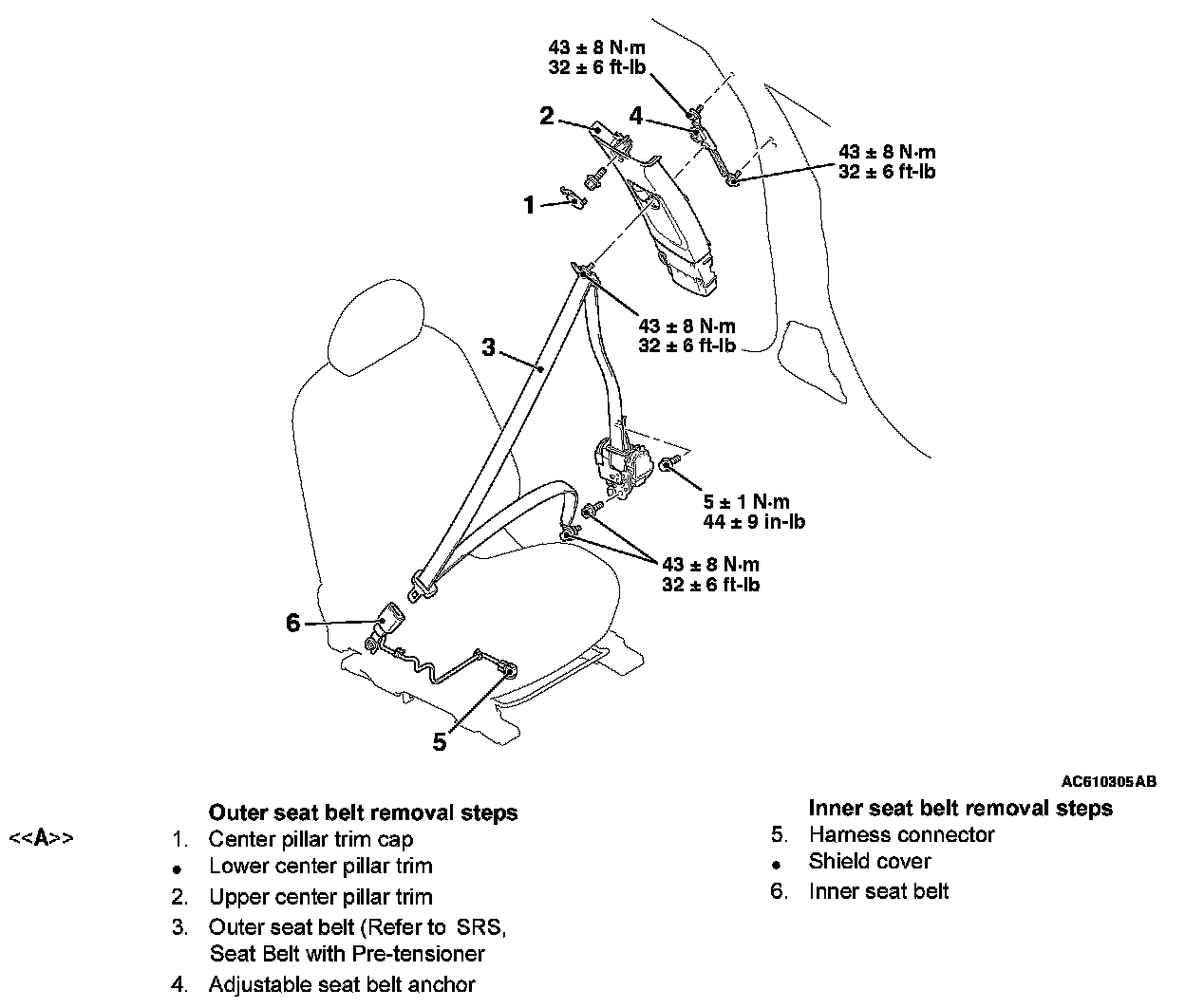

Removal Steps 1-6:

Required Special Tool:
- MB990784: Ornament Remover

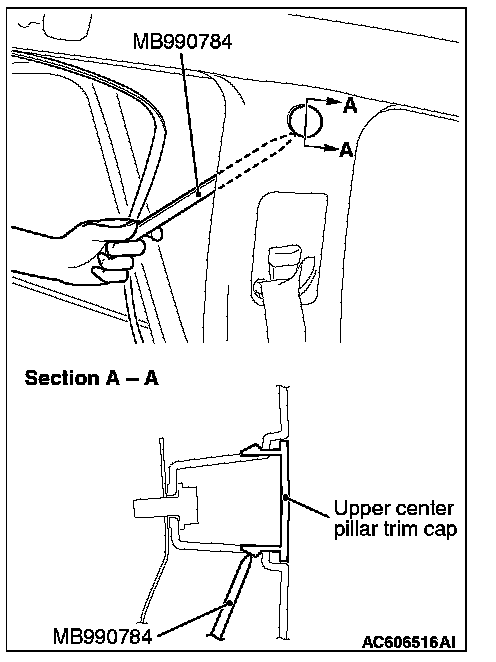

[[A]] UPPER CENTER PILLAR TRIM CAP REMOVAL







Remove the opening trim. Remove the upper center pillar trim cap by inserting the special tool MB990784 between the upper center pillar trim and body as shown in the illustration.
