Spark Plug Gap Check

SPARK PLUG GAP CHECK

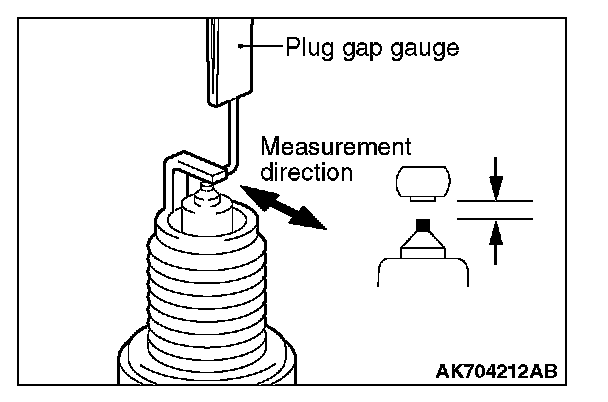

[Non-turbo]







Check the plug gap with the wire type plug gauge. Replace it if the limit is exceeded.

Standard value: 0.7 - 0.8 mm (0.028 - 0.031 inch)
Limit: 1.2mm (0.047 inch)

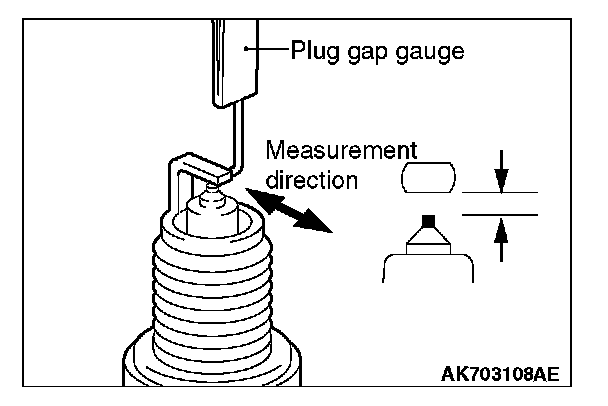

[Turbo]







Check the plug gap with the wire type plug gauge. Replace it if the limit is exceeded.

Standard value: 0.5 - 0.6 mm (0.020 - 0.023 inch)
Limit: 0.75mm (0.029 inch)
