Powertrain Management: Locations
ON-VEHICLE SERVICE
COMPONENT LOCATION

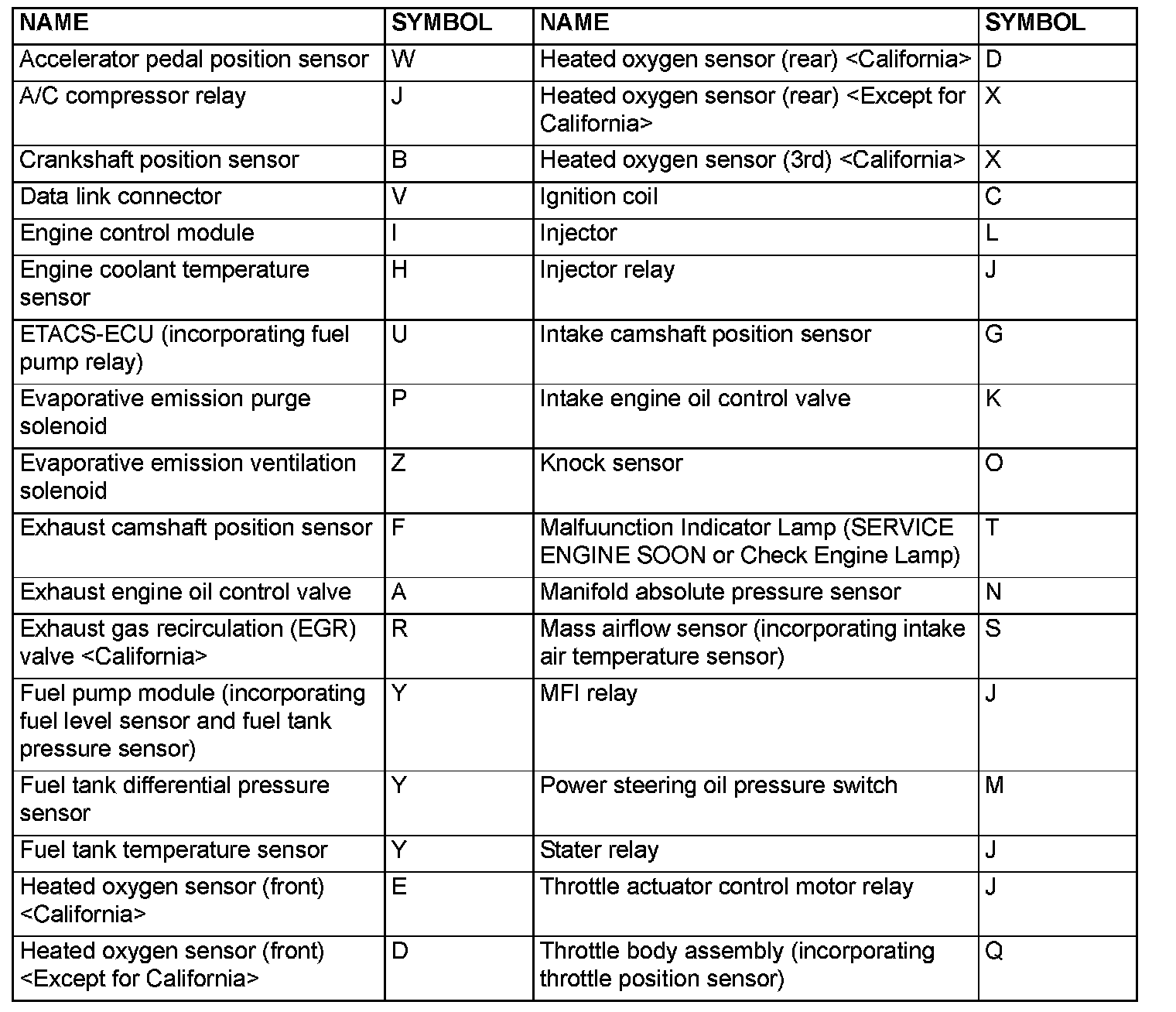

Component Location:

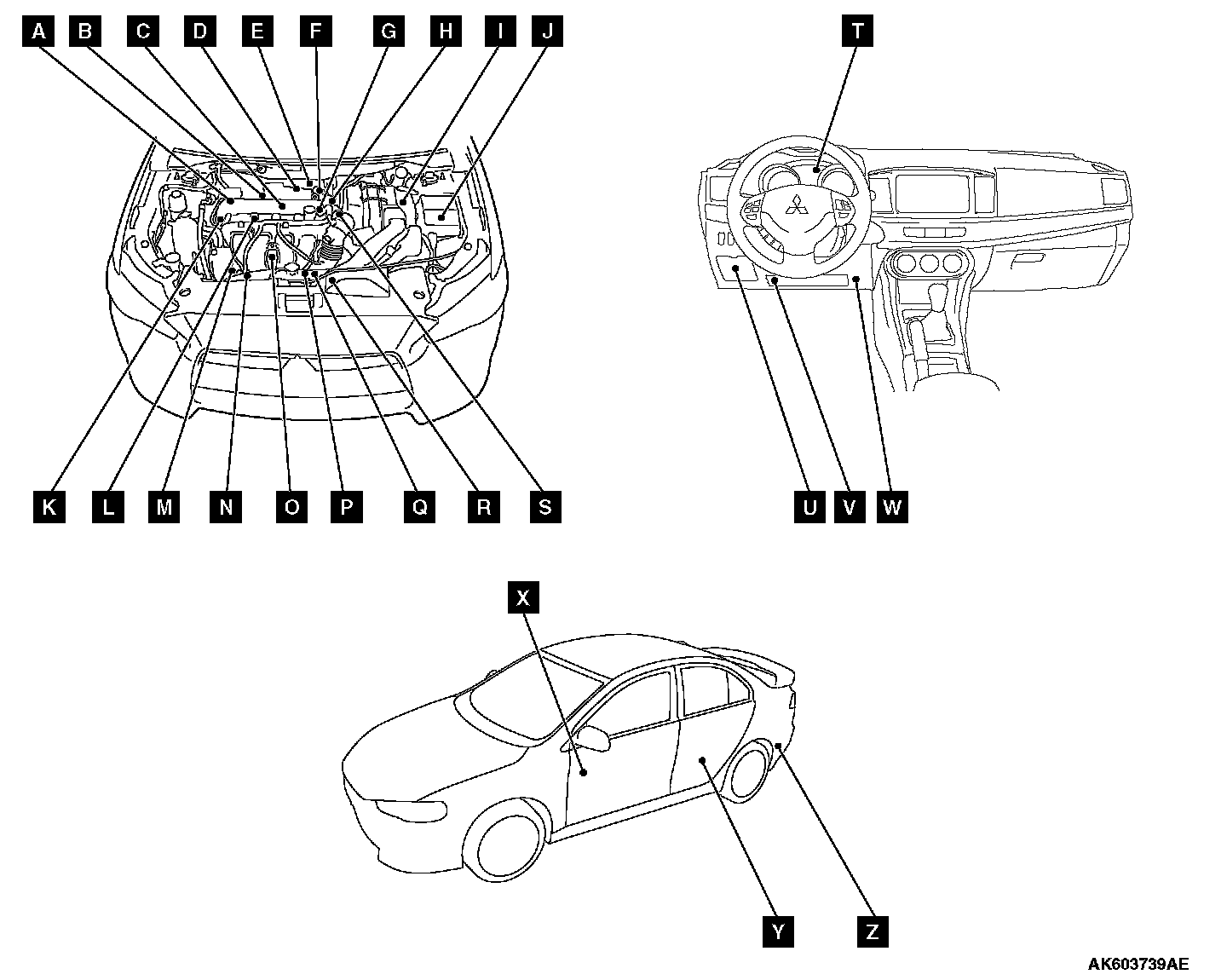

Overall View:

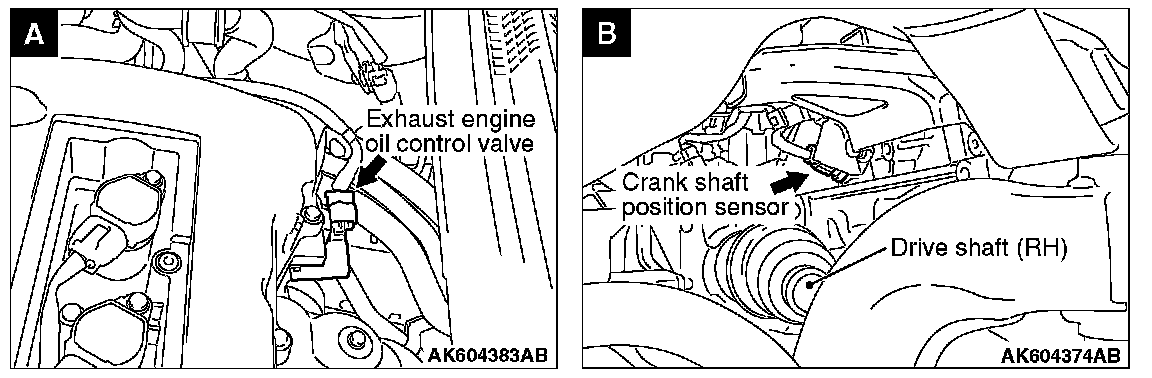

View A-B:

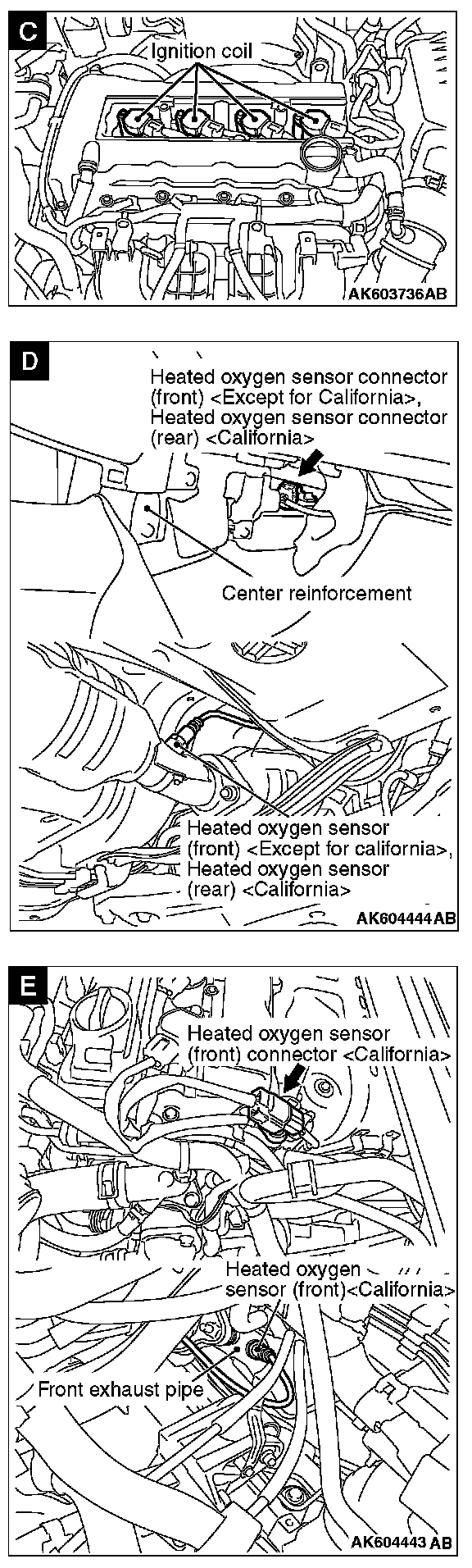

View C-E:

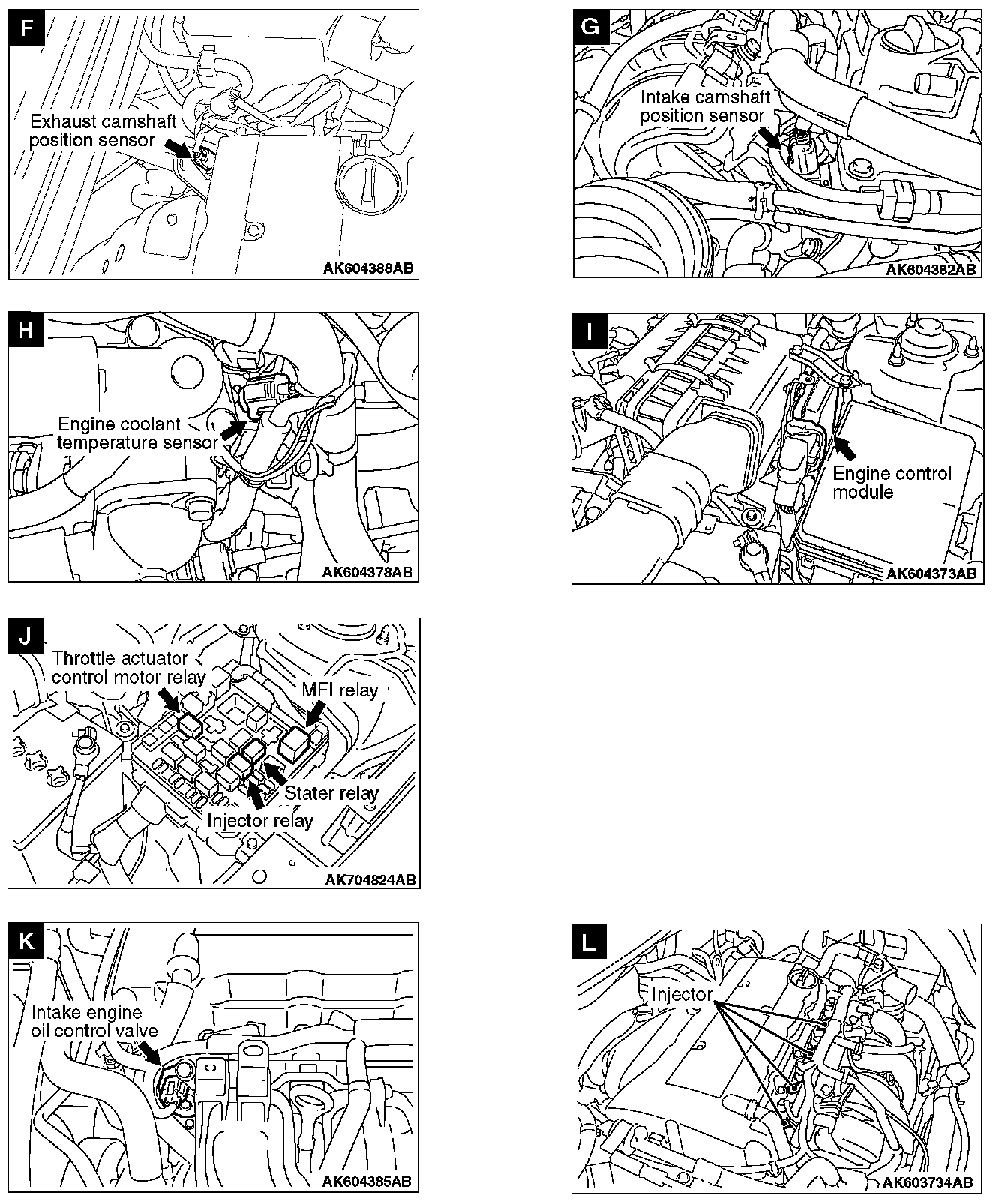

View F-L:

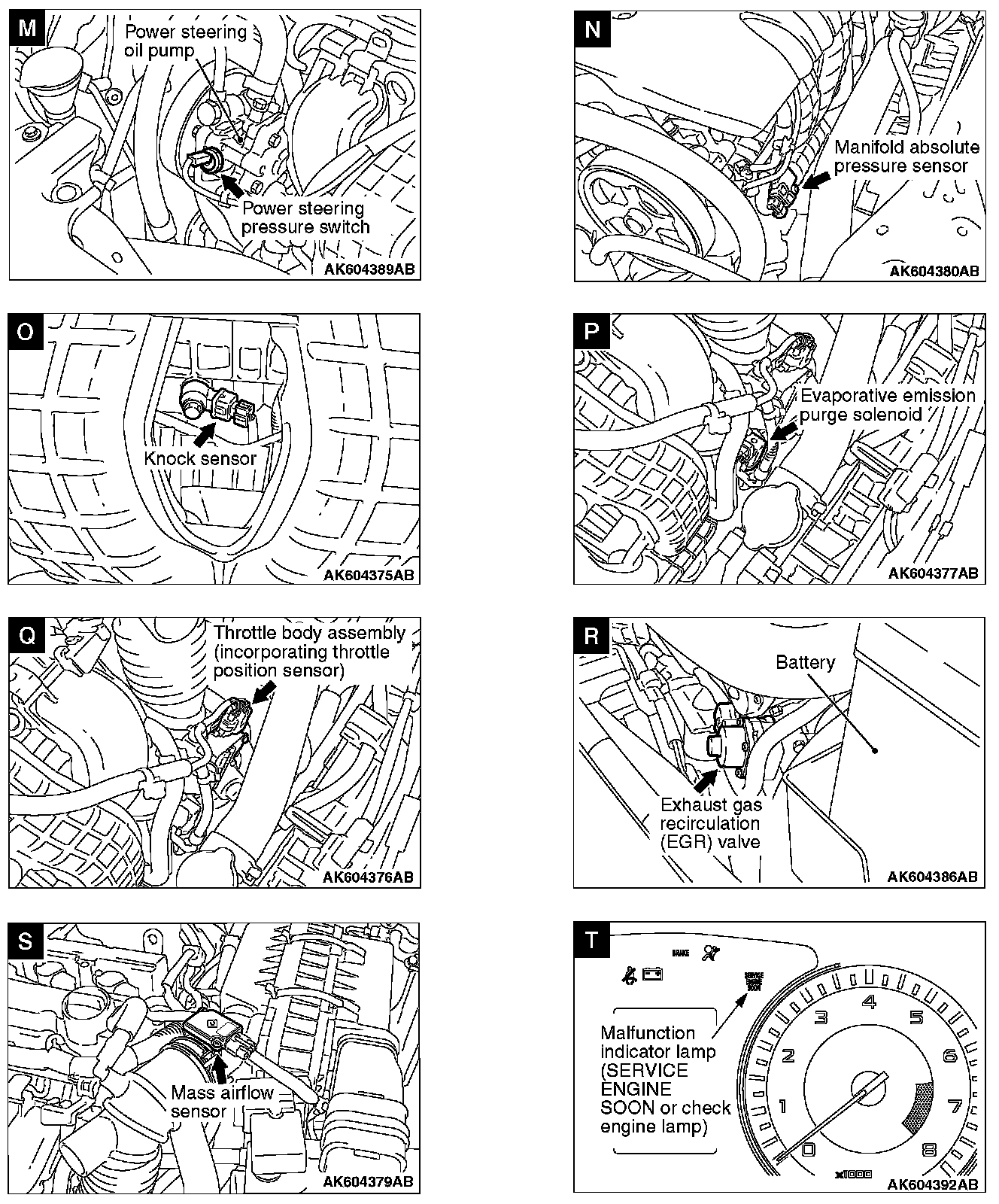

View M-T:
View U-Z:
