Symptom Related Diagnostic Procedures

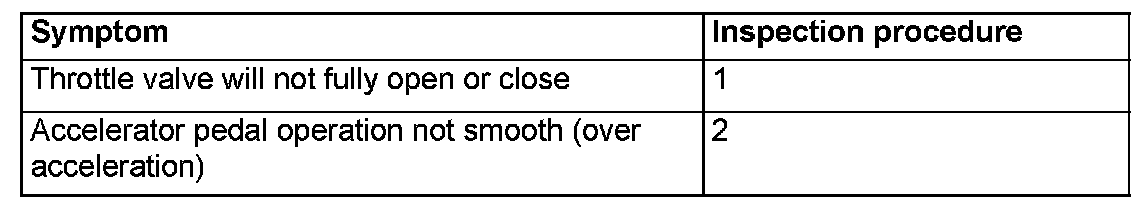

SYMPTOM CHARTSymptom Chart:
SYMPTOM PROCEDURES
Inspection Procedure 1: Throttle Valve will not Fully Open or Close
COMMENT
The throttle body or accelerator pedal position sensor (APS) is suspected.
TROUBLESHOOTING HINTS (THE MOST LIKELY CAUSES FOR THIS CASE:)
- Malfunction of the throttle body.
- Malfunction of the APS.
- Malfunction of the engine control module (ECM.)
DIAGNOSIS
Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A
STEP 1. Using scan tool MB991958, check the MFI system diagnostic trouble code (DTC.)
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
1. Ensure that the ignition switch is at the "LOCK" (OFF) position.
2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824 and the personal computer.
4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON" position.
NOTE: When special tool MB991824 is energized, special tool MB991824 indicator light will be illuminated in a green color.
7. Start the M.U.T.-III system on the personal computer.
8. Turn the ignition switch to the "ON" position.
9. Check for MFI system DTC. (Refer to MFI Diagnosis - Diagnostic Function) [2.0L ENGINE Non-turbo], Diagnostic Function (Refer to MFI Diagnosis - Diagnostic Function) [2.0L ENGINE Turbo] Diagnostic Function or Refer to MFI Diagnosis - Diagnostic Function) [2.4L ENGINE]. Diagnostic Function
10. Turn the ignition switch to the "LOCK" (OFF) position, and then remove scan tool MB991958 in the reverse order of installation.
Q: Is any DTC set?
YES : Diagnose the MFI system. (Refer to Diagnosis - Diagnostic Trouble Code Chart) [2.0L ENGINE Non-turbo], Diagnostic Trouble Code Descriptions (Refer to Diagnosis - Diagnostic Trouble Code Chart) [2.0L ENGINE Turbo] Diagnostic Trouble Code Descriptions or (Refer to Diagnosis - Diagnostic Trouble Code Chart) [2.4L ENGINE]. Diagnostic Trouble Code Descriptions Then go to Step 3.
NO : Go to Step 2.
STEP 2. Retest the system.
Q: Does the throttle valve work with the accelerator pedal operation?
YES : It can be assumed that this malfunction is intermittent.
NO : Return to Step 1.
STEP 3. Retest the system.
Q: Does the throttle valve work with the accelerator pedal operation?
YES : The procedure is complete.
NO : Return to Step 1.
Inspection Procedure 2: Accelerator Pedal Operation not Smooth (Over Acceleration)
COMMENT
The accelerator pedal, its installation condition or the accelerator pedal position sensor (APS) is suspected.
TROUBLESHOOTING HINTS (THE MOST LIKELY CAUSES FOR THIS CASE:)
- Malfunction of the accelerator pedal.
- Incorrectly installed accelerator pedal.
- Malfunction of the APS.
DIAGNOSIS
Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A
STEP 1. Check if the accelerator pedal is installed correctly.
Q: Is the accelerator pedal installed correctly?
YES : Go to Step 2.
NO : Remove and reinstall the accelerator pedal. Then go to Step 4.
STEP 2. Using scan tool MB991958, check the MFI system DTC.
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
1. Ensure that the ignition switch is at the "LOCK" (OFF) position.
2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824 and the personal computer.
4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON" position.
NOTE: When special tool MB991824 is energized, special tool MB991824 indicator light will be illuminated in a green color.
7. Start the M.U.T.-III system on the personal computer.
8. Turn the ignition switch to the "ON" position.
9. Check for MFI system DTC. (Refer to MFI Diagnosis - Diagnostic Function) [2.0L ENGINE Non-turbo], Diagnostic Function (Refer to MFI Diagnosis - Diagnostic Function) [2.0L ENGINE Turbo] Diagnostic Function or Refer to MFI Diagnosis - Diagnostic Function) [2.4L ENGINE]. Diagnostic Function
10. Turn the ignition switch to the "LOCK" (OFF) position, and then remove scan tool MB991958 in the reverse order of installation.
Q: Is any DTC set?
YES : Diagnose the MFI system. (Refer to Diagnosis - Diagnostic Trouble Code Chart) [2.0L ENGINE Non-turbo], Diagnostic Trouble Code Descriptions (Refer to Diagnosis - Diagnostic Trouble Code Chart) [2.0L ENGINE Turbo] Diagnostic Trouble Code Descriptions or (Refer to Diagnosis - Diagnostic Trouble Code Chart) [2.4L ENGINE]. Diagnostic Trouble Code Descriptions Then go to Step 4.
NO : Go to Step 3.
STEP 3. Retest the system.
Q: Does the accelerator pedal work normally?
YES : It can be assumed that this malfunction is intermittent.
NO : Return to Step 1.
STEP 4. Retest the system.
Q: Does the accelerator pedal work normally?
YES : The procedure is complete.
NO : Return to Step 1.
