Evaporative Emissions System: Locations
Component Location

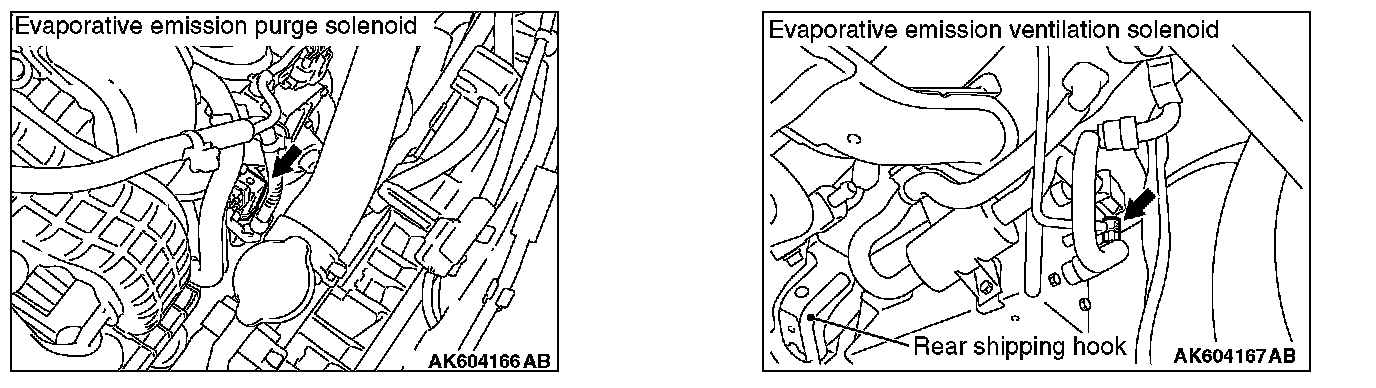

[Non-turbo]
Component Location:

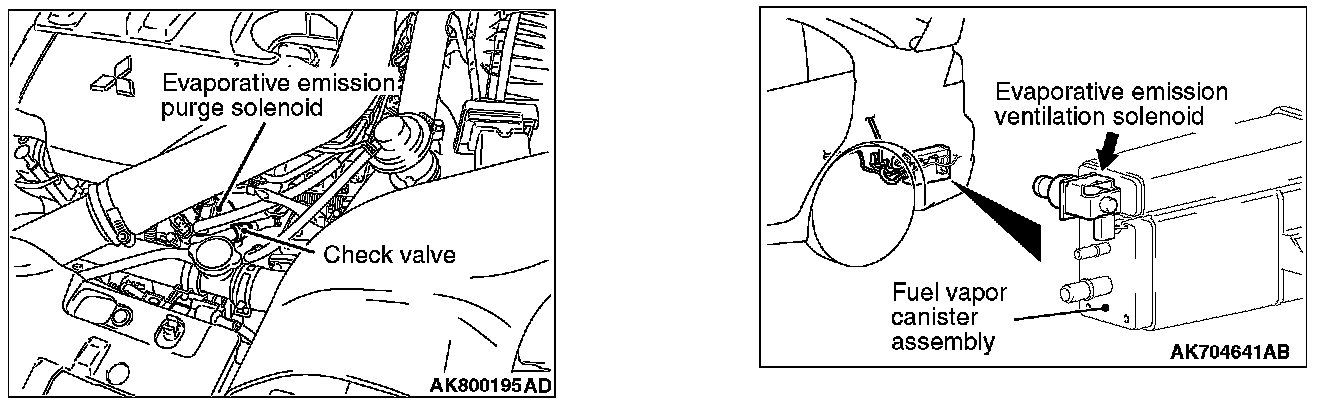

[Turbo]
Component Location:
