Vacuum Circuit Diagram
VACUUM CIRCUIT DIAGRAM

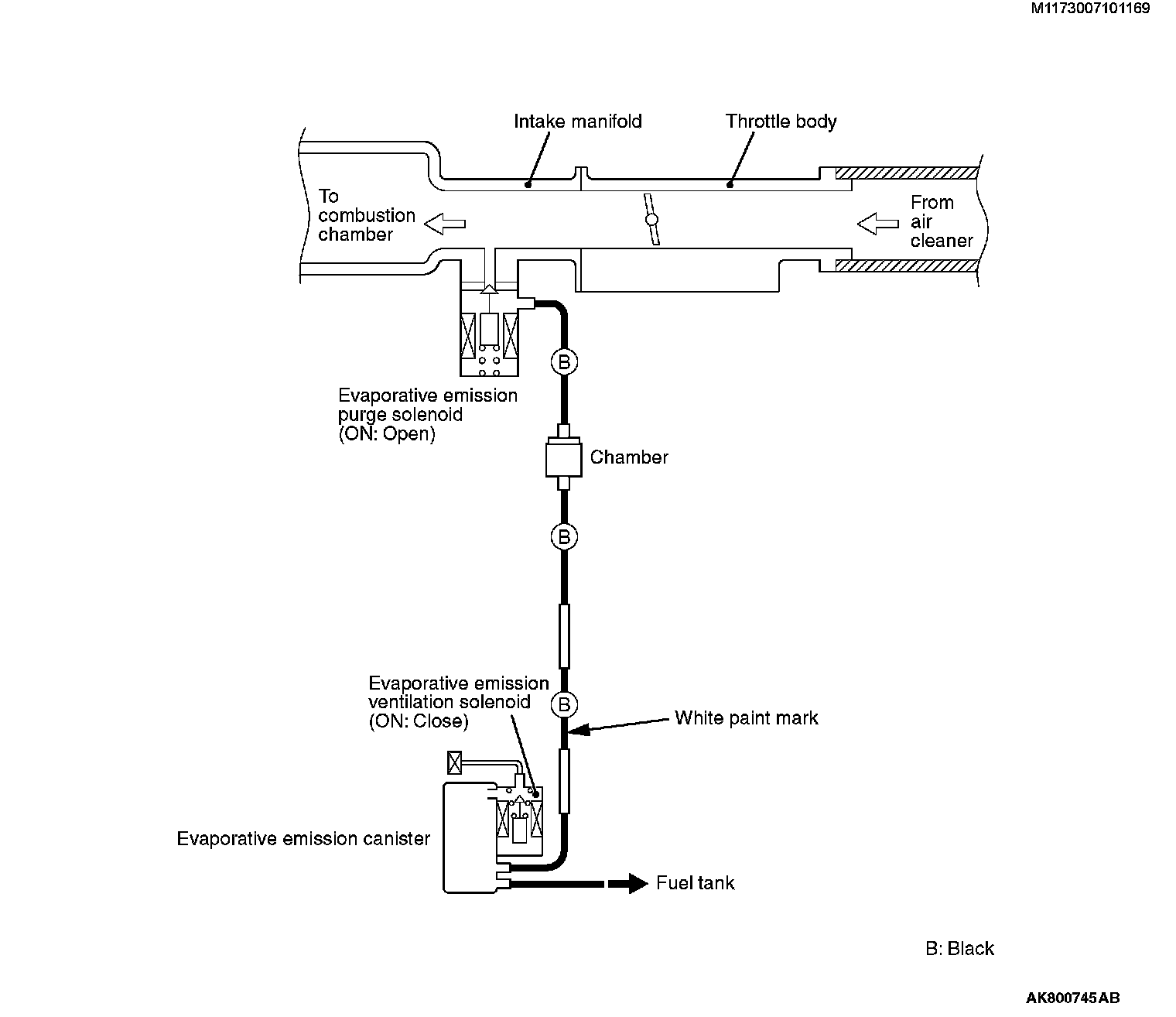

[Non-turbo]
Vacuum Circuit Diagram:

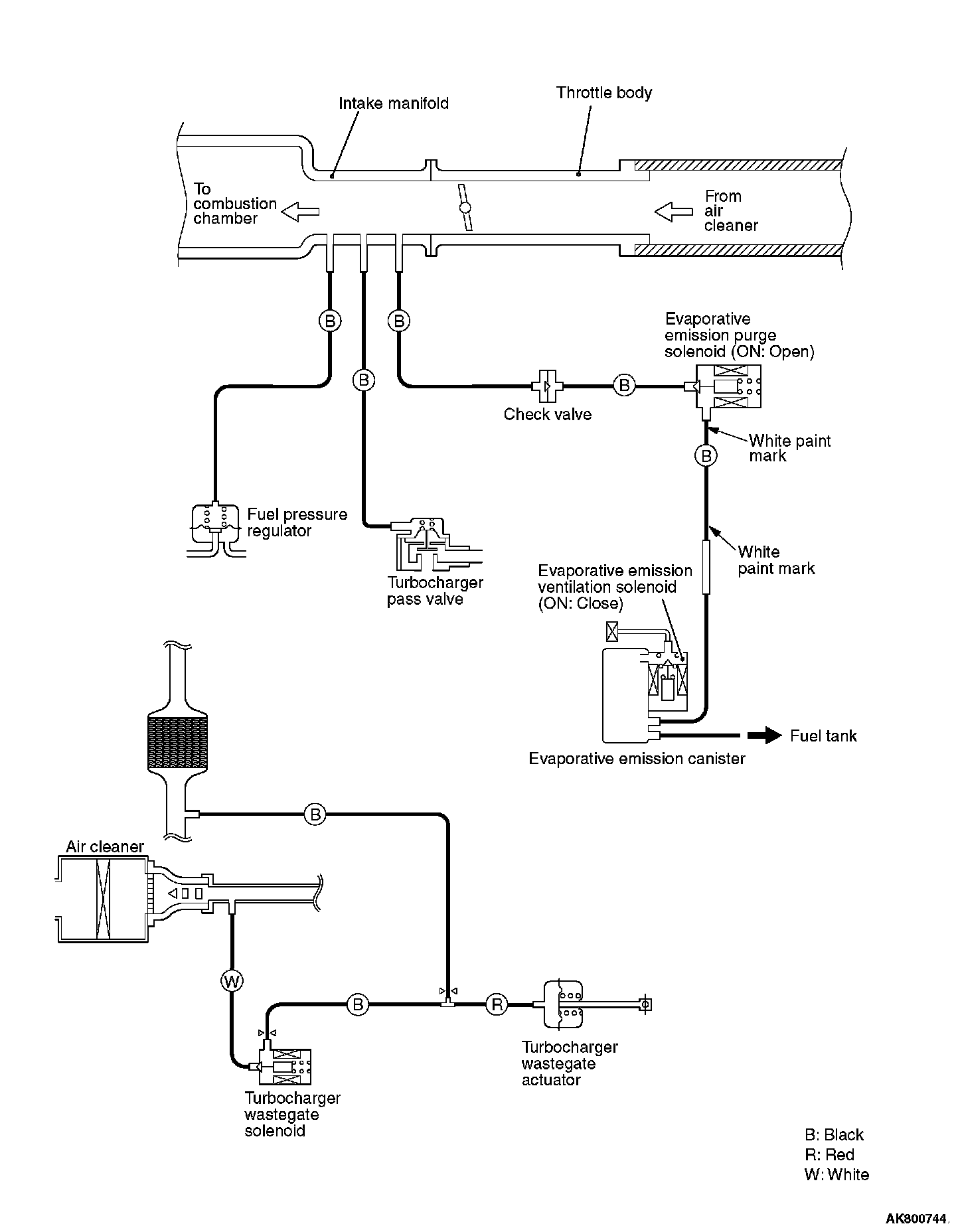

[Turbo]
Vacuum Circuit Diagram:
