Fail-Safe Function Reference Table
FAIL-SAFE FUNCTION REFERENCE TABLEWhen the main sensor malfunctions are detected by the diagnostic test mode, the vehicle is controlled by means of the following defaults.

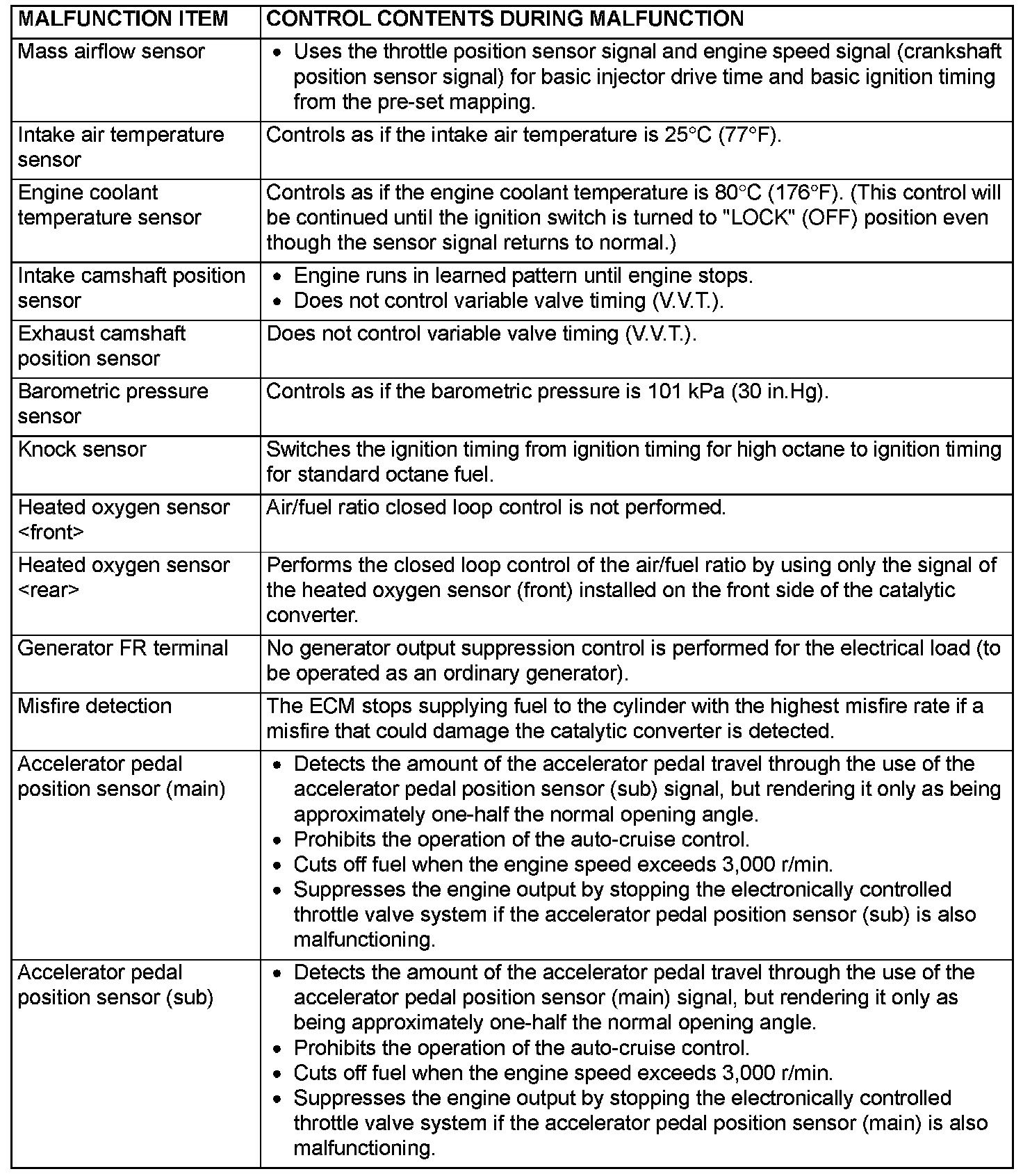

Fail-Safe Function Reference Table (Part 1):

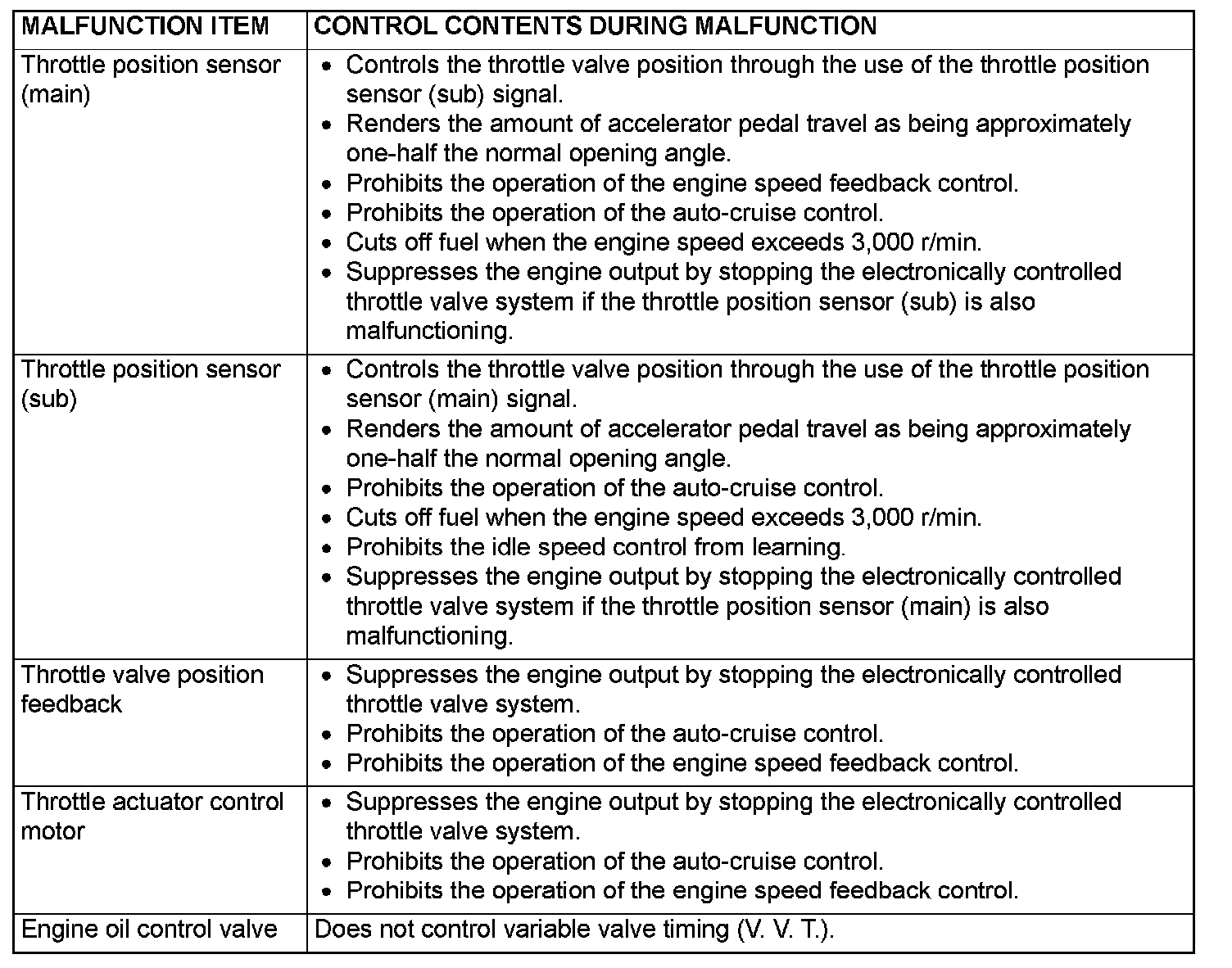

Fail-Safe Function Reference Table (Part 2):
