Diagnostic Item 10

DIAGNOSTIC ITEM 10: Diagnose when the scan tool cannot receive the data sent by TCM. [CVT]

CAUTION: When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.

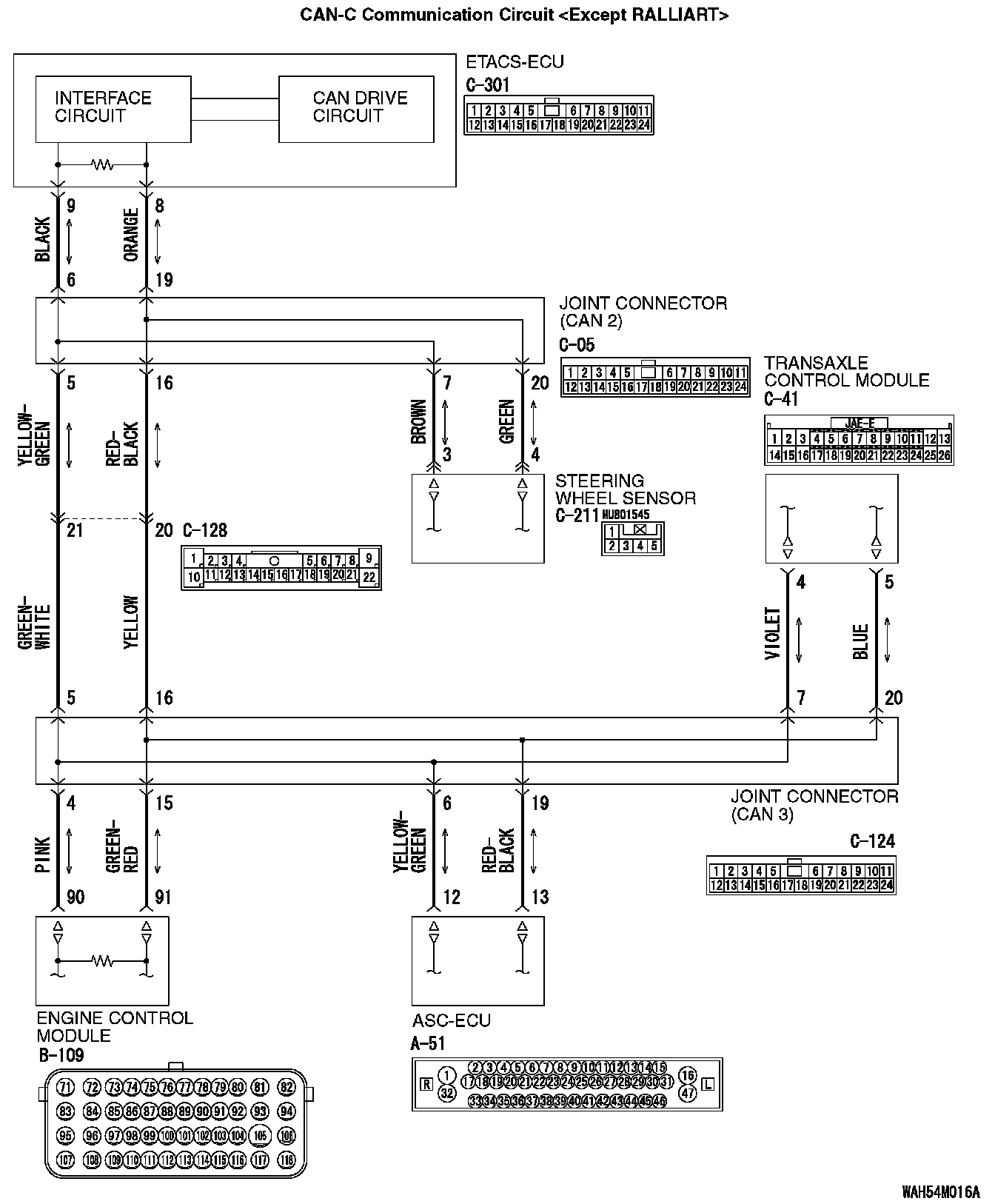

CAN-C Communication Circuit [Except Ralliart] (Part 1):

CAN-C Communication Circuit [Except Ralliart] (Part 2):

FUNCTION
If the scan tool MB991958 cannot communicate with the TCM, this diagnosis result will be set.

TROUBLE JUDGEMENT CONDITIONS
If a communication flag is not set for the TCM, the ETACS-ECU determines that there is a failure.

TROUBLE JUDGEMENT CONDITIONS If a communication flag is not set for the TCM, the ETACS-ECU determines that there is a failure.
- Malfunction of the connector [joint connector (CAN3) or TCM connector improperly connected]
- Malfunction of the wiring harness [open circuit between the TCM connector and the joint connector (CAN3), power supply circuit to the TCM]
- Malfunction of the TCM

DIAGNOSIS

Required Special Tools:
- MB991223: Harness Set
- MB992006: Extra Fine Probe

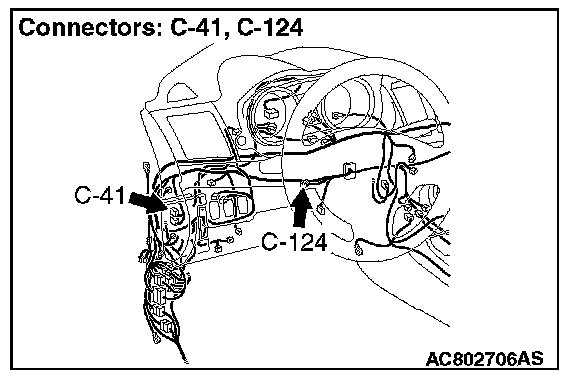

STEP 1. Check joint connector (CAN3) C-124 and TCM connector C-41 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

CAUTION: The strand end of the twisted wire should be within 10 cm (4 inches) from the connector.

Q: Are joint connector (CAN3) C-124 and TCM connector C-41 in good condition?

YES: Go to Step 2.

NO: Repair the damaged parts.

STEP 2. Check the wiring harness between joint connector (CAN3) C-124 and TCM connector C-41.

CAUTION: Strictly observe the specified wiring harness repair procedure.







1. Disconnect joint connector (CAN3) C-124 and TCM connector C-41, and check the wiring harness.

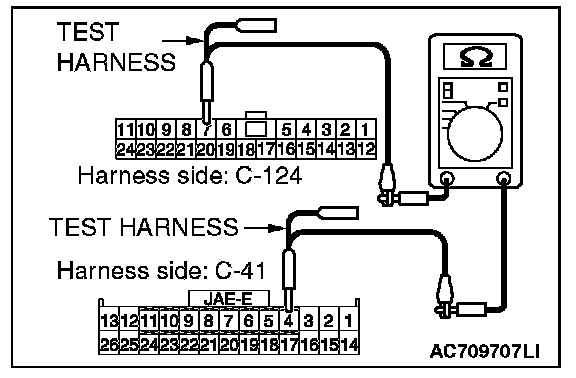

2. Check the wiring harness between joint connector (CAN3) C-124 (terminal 7) and TCM connector C-41 (terminal 4)

OK: Continuity exists (2 Ohms or less)

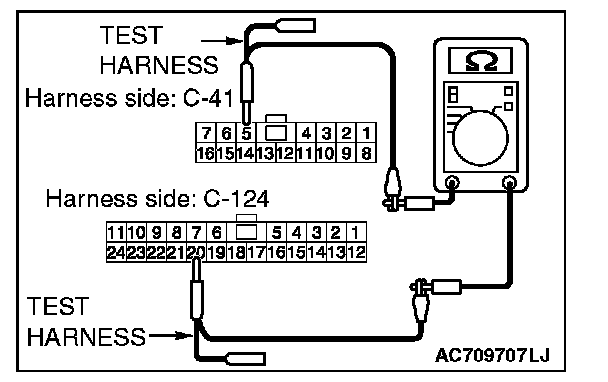

3. Check the wiring harness between joint connector (CAN3) C-124 (terminal 20) and TCM connector C-41 (terminal 5)

OK: Continuity exists (2 Ohms or less)

Q: Is the wiring harness between joint connector (CAN3) C-124 and TCM connector C-41 in good condition?

YES: Check the power supply circuit of the TCM. Refer to Troubleshooting Diagnostic Trouble Code Descriptions.

NO: Repair the wiring harness between joint connector (CAN3) C-124 and TCM connector C-41.
