Front Axle

WHEEL BEARING END PLAY CHECK
1. Remove the caliper assembly and brake disc, and retain the caliper assembly with a wire and the like to prevent from falling.

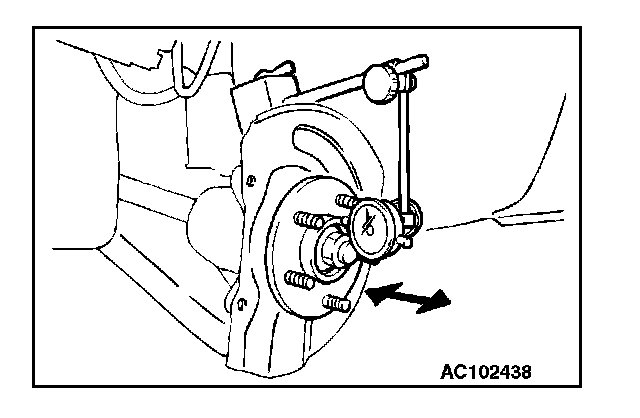

2. Set a dial gauge as shown in the figure. Move the hub in the axial direction and measure the end play.
Limit: 0.05 mm (0.002 inch)
3. If the play exceeds the limit, disassemble hub knuckle assembly to check each component. If the wheel bearing is faulty, replace it.
4. After checking, install the brake disc and the caliper assembly.
