Wiper/Washer Switch Continuity Check

COLUMN SWITCH

INSPECTION

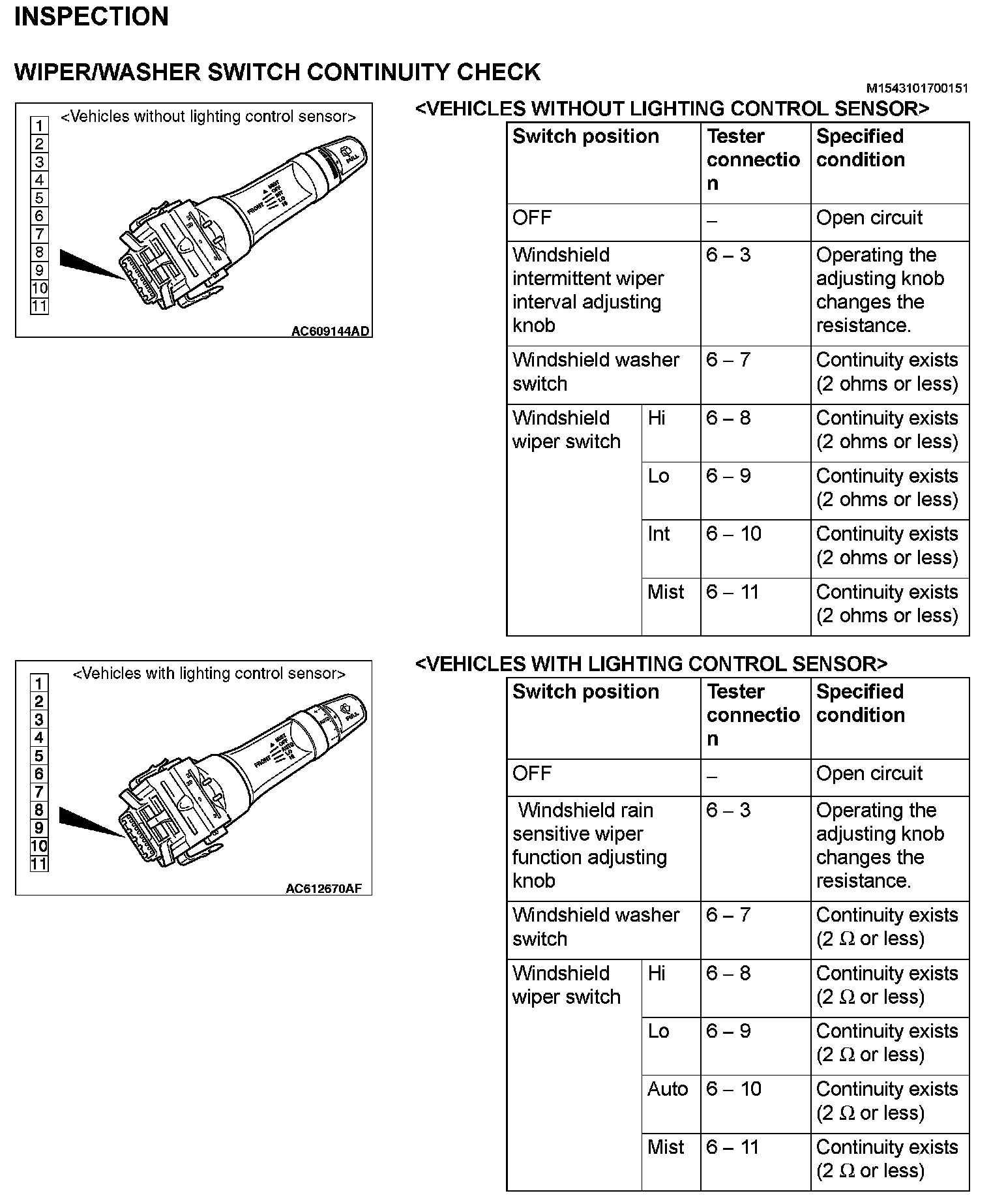

WIPER/WASHER SWITCH CONTINUITY CHECK


Wiper/Washer Switch Continuity Check:
