Combination Switch: Service and Repair
COLUMN SWITCHREMOVAL AND INSTALLATION
CAUTION:
- To remove the driver airbag module, refer to Service Precautions and Driver's Air Bag Module and Clock Spring.
- When the steering wheel sensor is replaced, always carry out calibration to make ASC-ECU learn the neutral point. (Refer to On-vehicle Service-Steering Wheel Sensor Calibration)

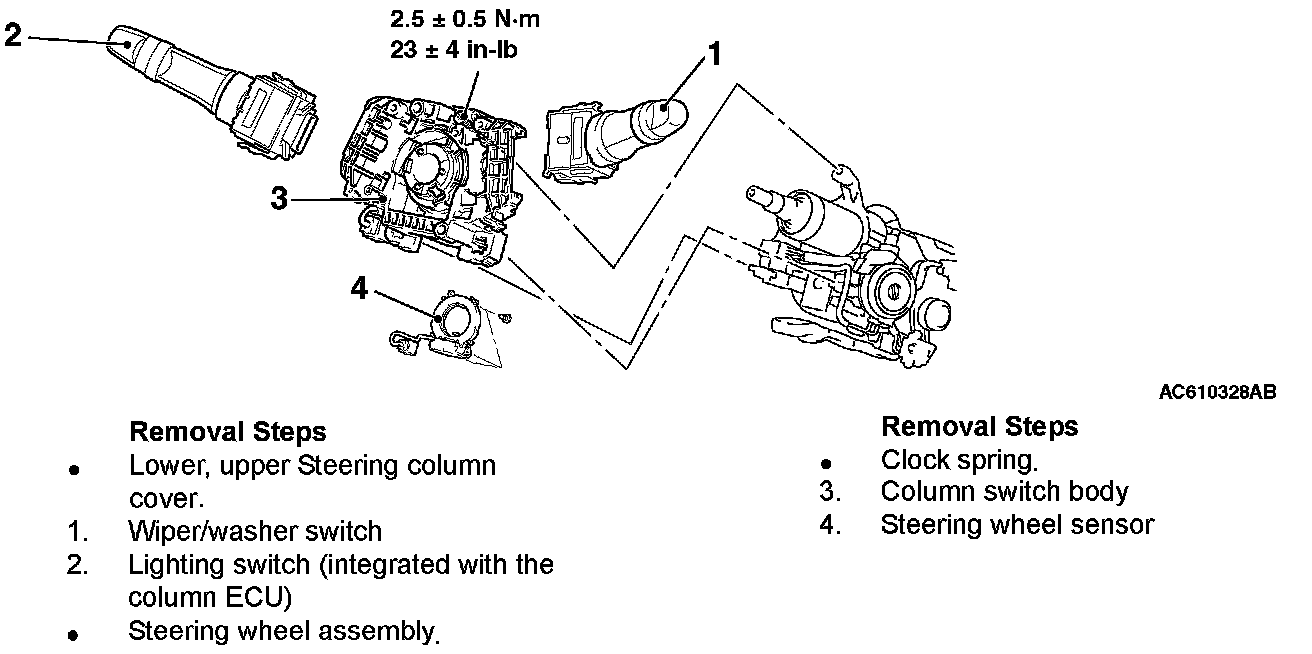

Removal Steps 1-4:
