FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2010
>>
Lancer L4-2.0L (4B11)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
Scan Tool Testing and Procedures
LIN [LIGHTING CONTROL SENSOR (LIGHT SENSOR)]

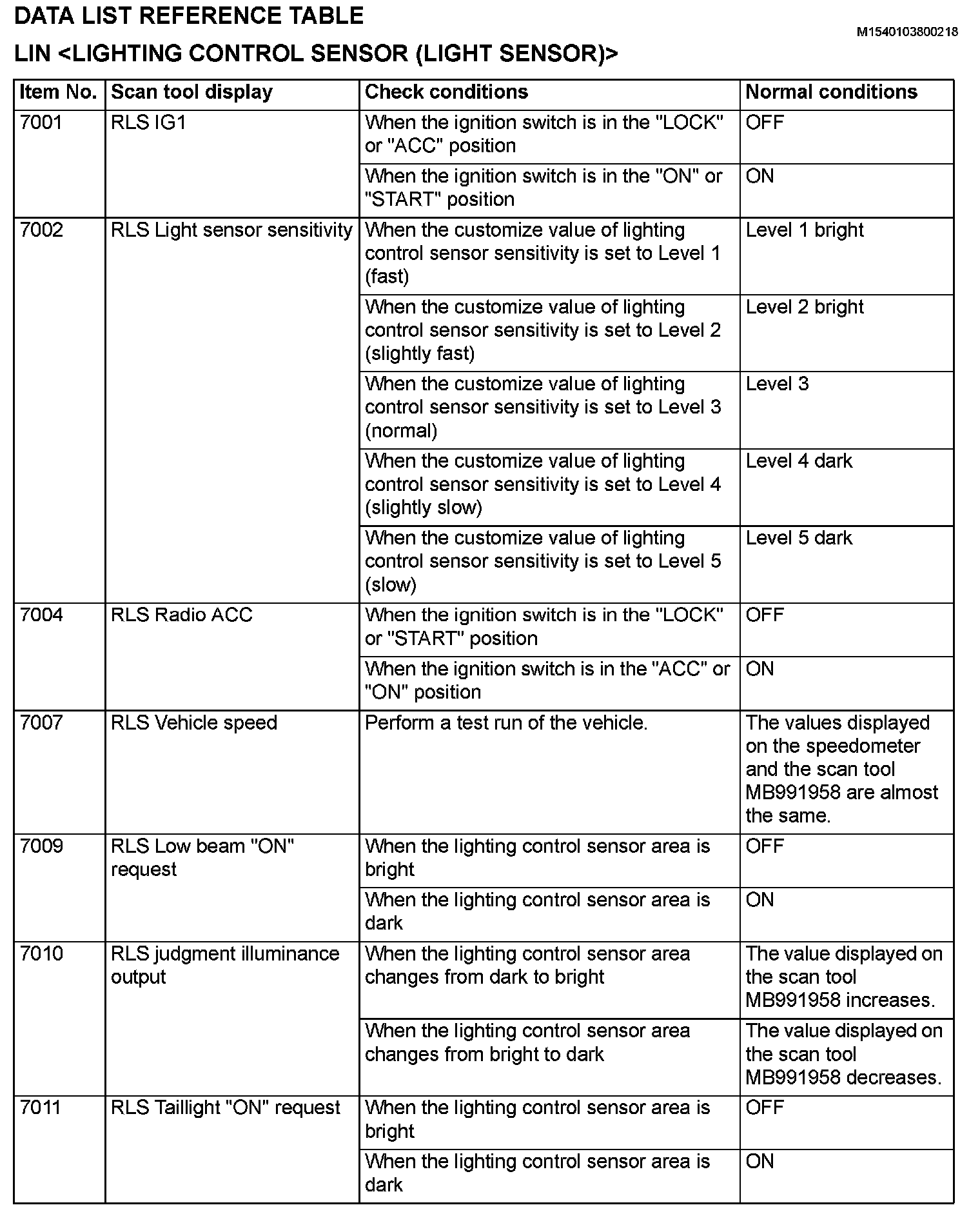

Data List Reference Table (Part 1):

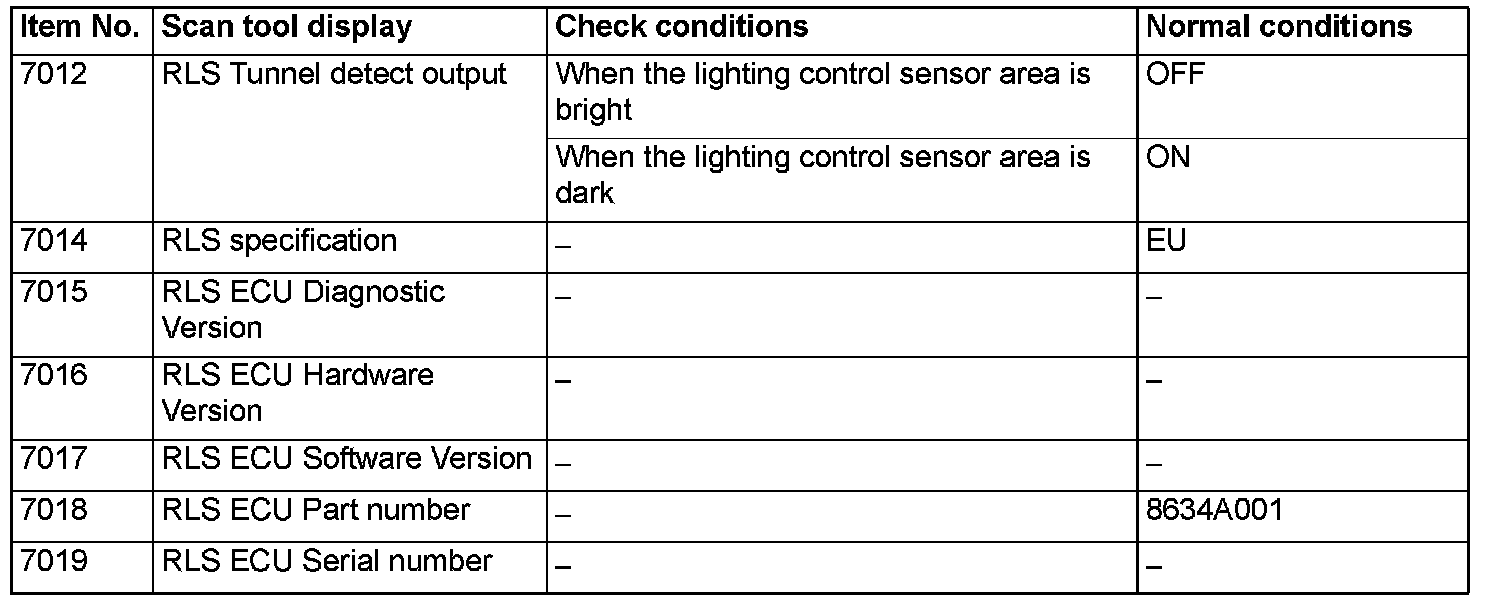

Data List Reference Table (Part 2):
