Pinout Values and Diagnostic Parameters
COMBINATION METER
CHECK AT ECU TERMINALS

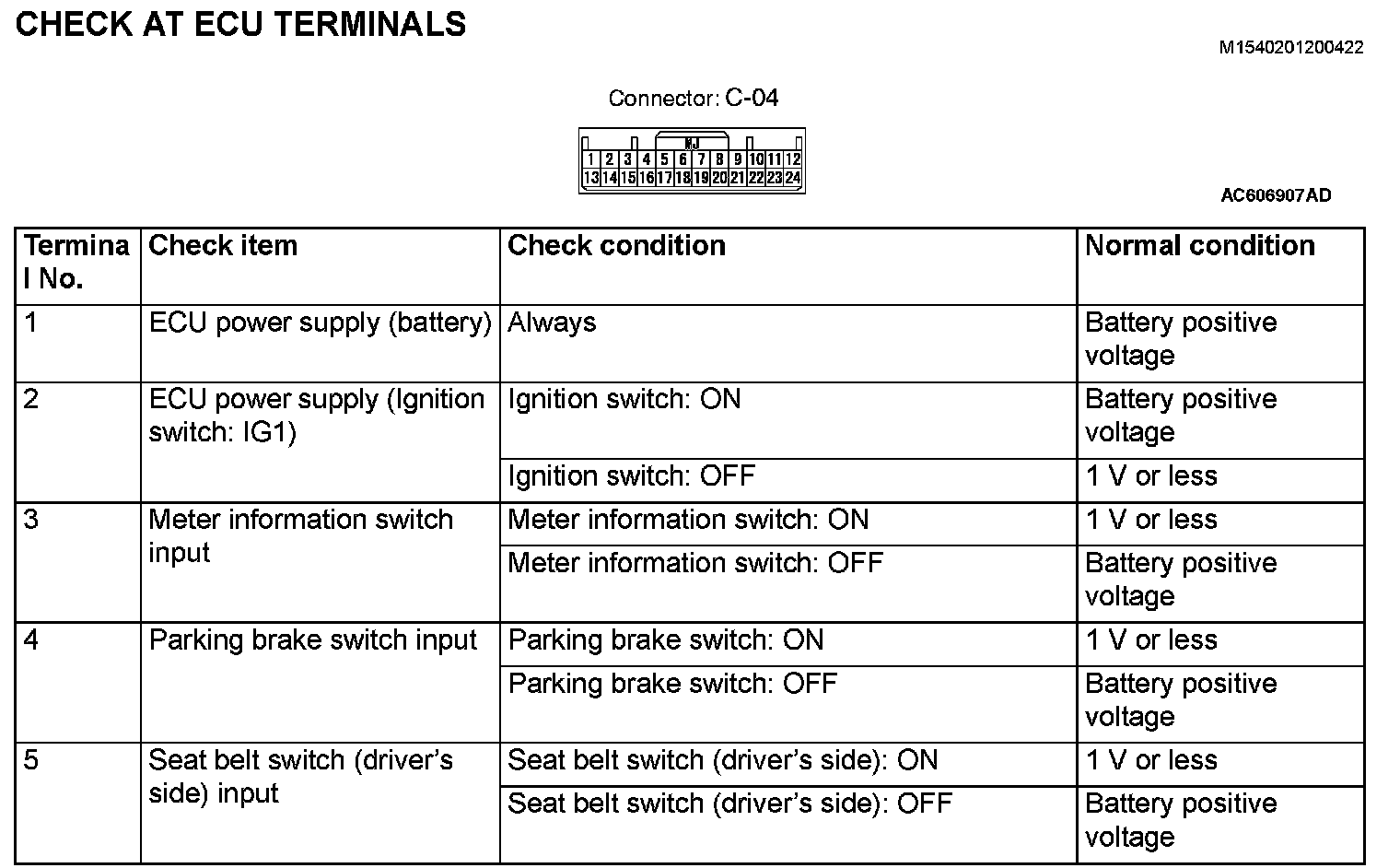

Check At ECU Terminals (Part 1):

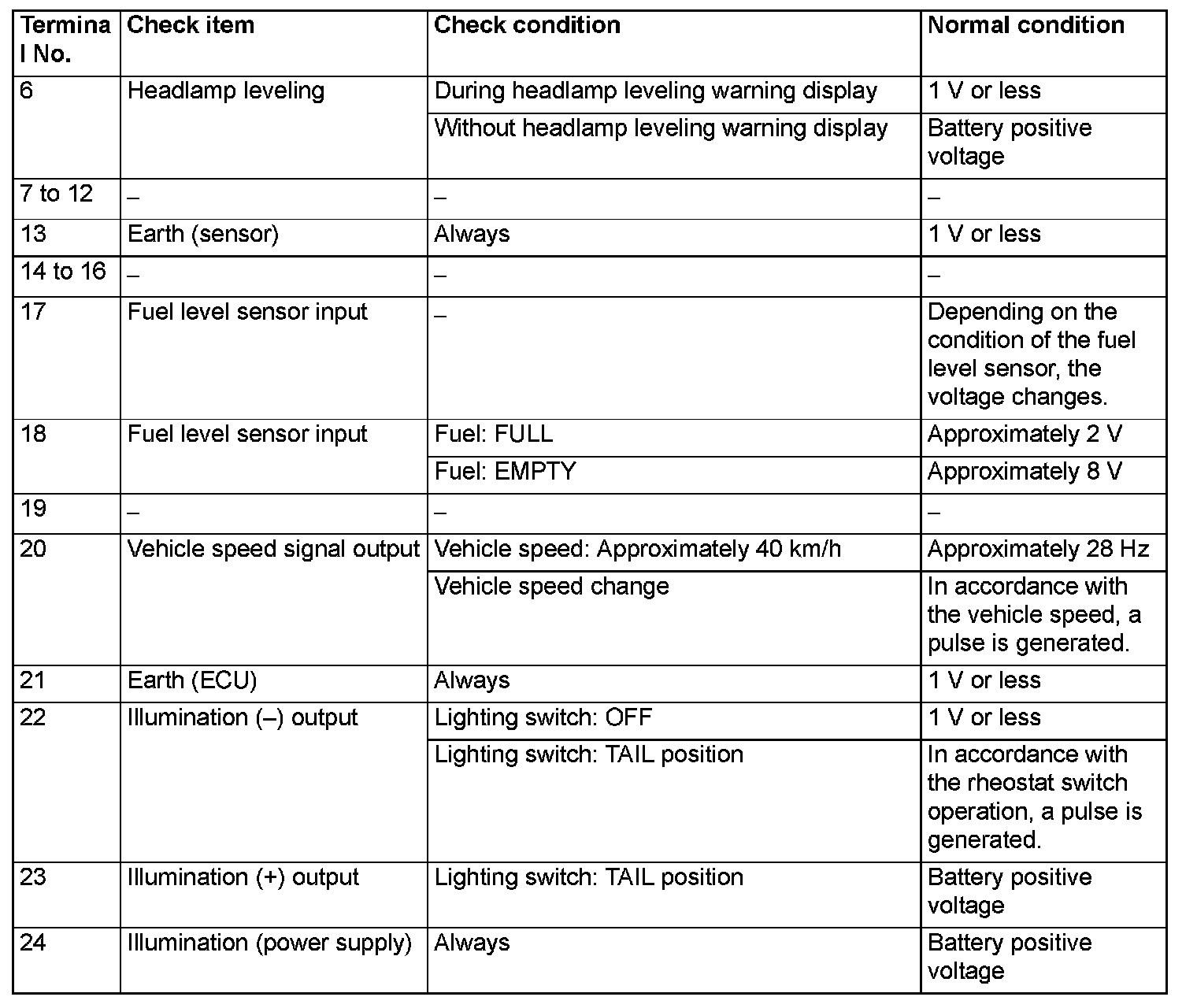

Check At ECU Terminals (Part 2):
