Tachometer Check

COMBINATION METER

TACHOMETER CHECK

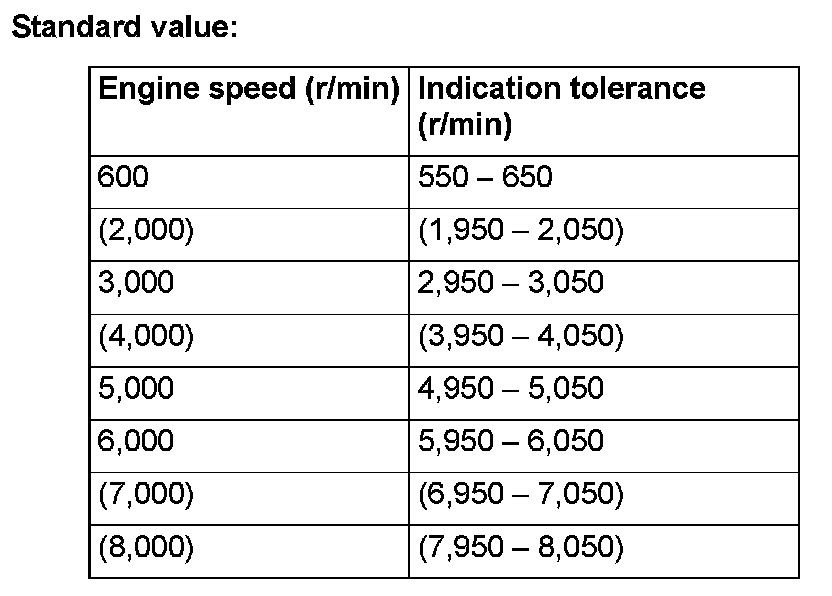

When the actuator tests (item No.2) are performed using scan tool MB991958, check that the tachometer indication tolerance is within the standard value.

NOTE: Values in () indicates the reference value.
