Fuel Level Sensor Float Height

COMBINATION METER

FUEL LEVEL SENSOR FLOAT HEIGHT

1. Remove the fuel pump module.

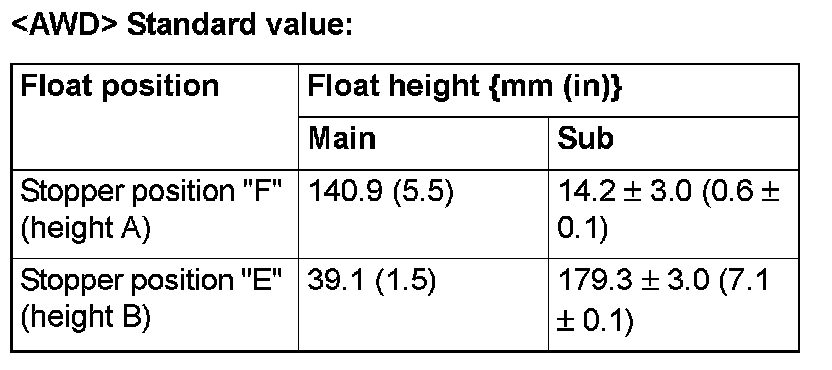

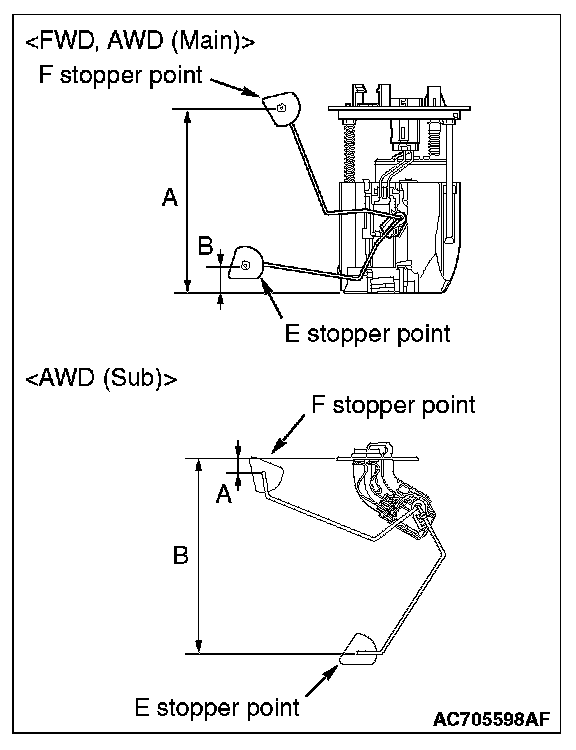

2. When float is moved to contact the float arm on the stopper, ensure that stopper positions "F" (height A) and "E" (height B) are within the standard value.
