Fuel Level Sensor Check
COMBINATION METERFUEL LEVEL SENSOR CHECK
NOMINAL RESISTANCE OF THE FUEL LEVEL SENSOR
1. Remove the fuel pump module.

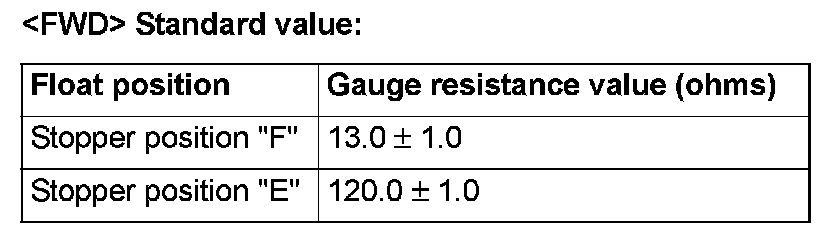

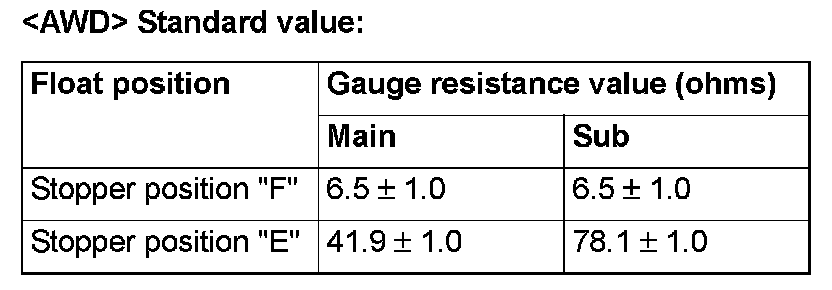

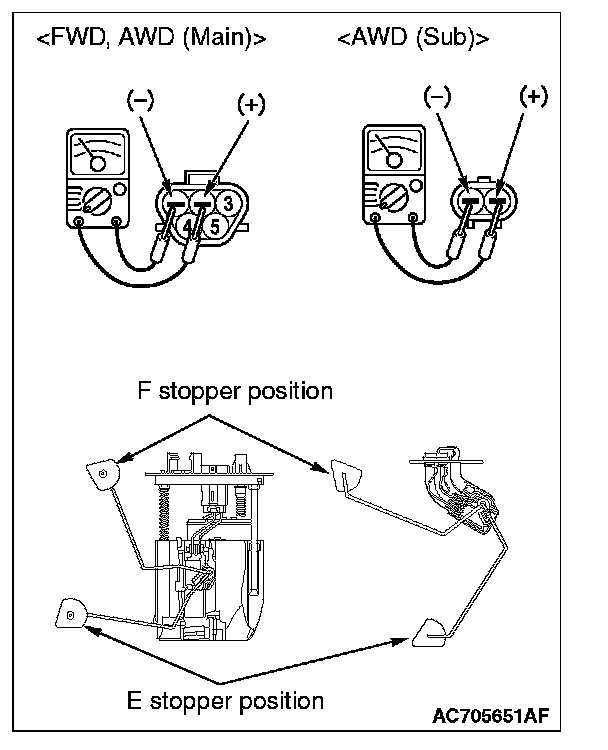

2. When float of the fuel level sensor is in stopper positions F and E, ensure that resistance between the fuel level sensor terminal and ground terminal is within the standard value.
3. When the float is moved slowly between stopper positions "F" and "E", ensure that the resistance is smoothly changing.
