Manual A/C Diagnosis

MANUAL A/C DIAGNOSIS

CHECK AT A/C-ECU TERMINAL

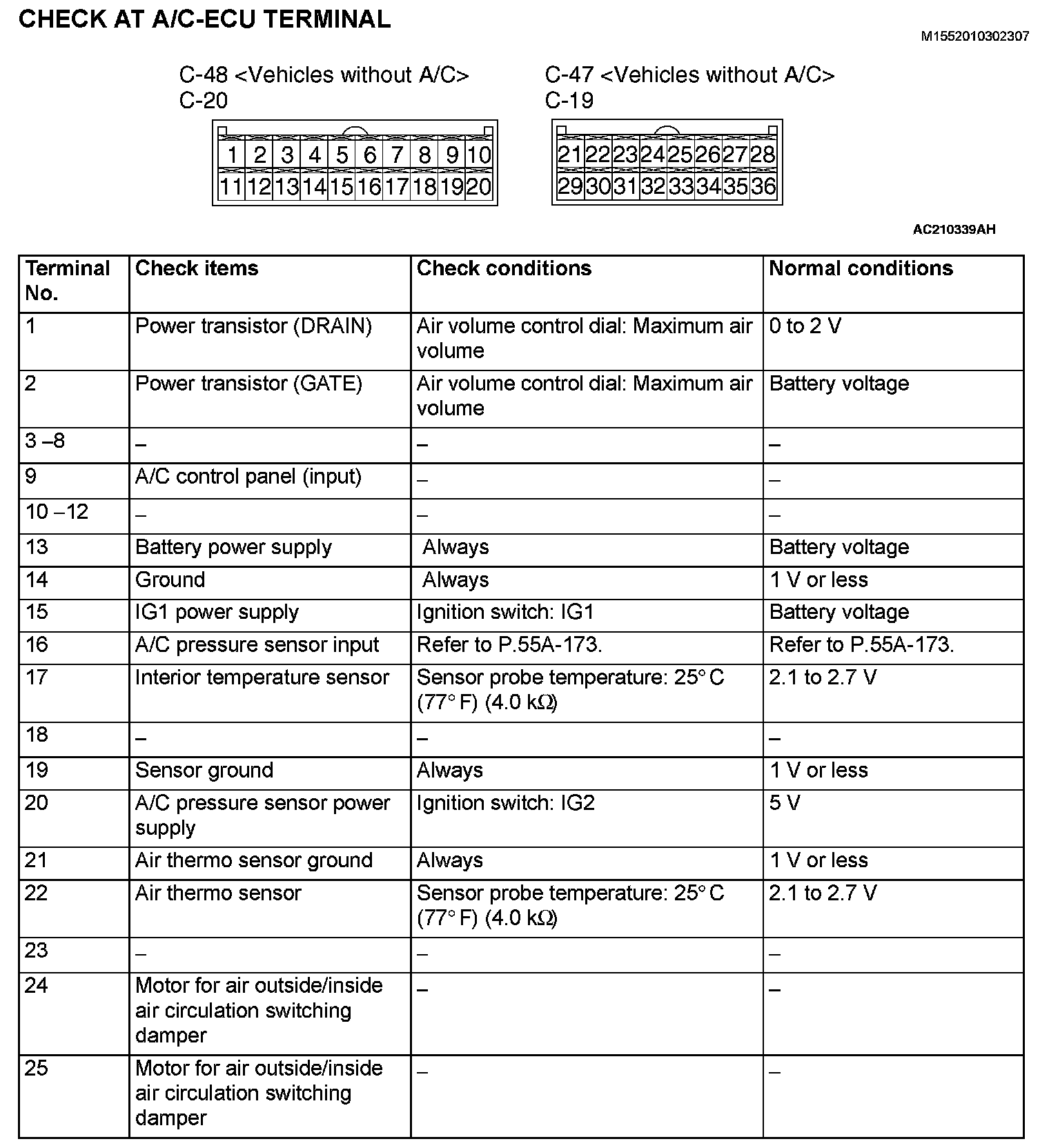

Check AT A/C-ECU Terminal (Part 1):

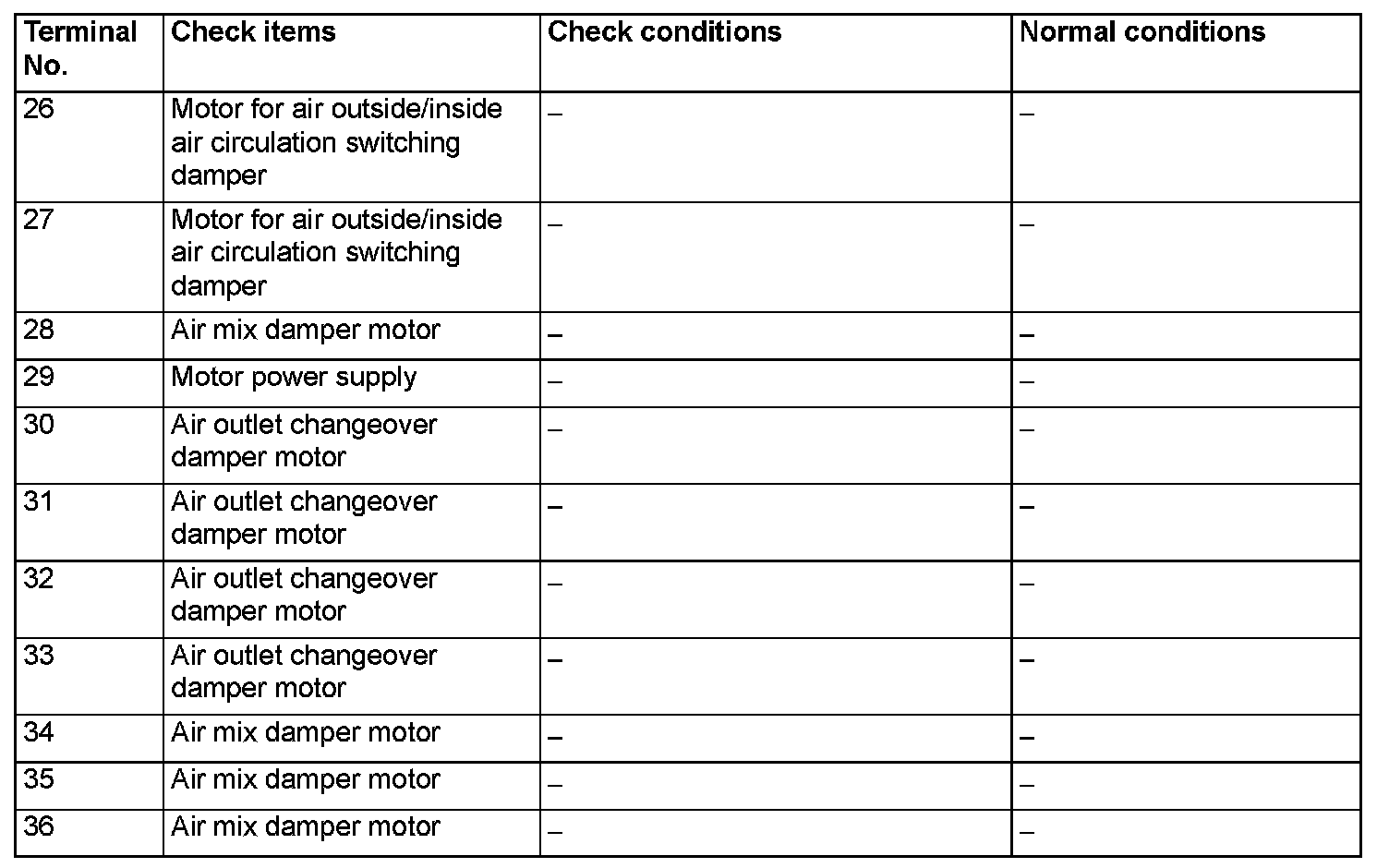

Check AT A/C-ECU Terminal (Part 2):
