Automatic Air Conditioning

AUTOMATIC AIR CONDITIONING

CHECK AT A/C-ECU TERMINAL

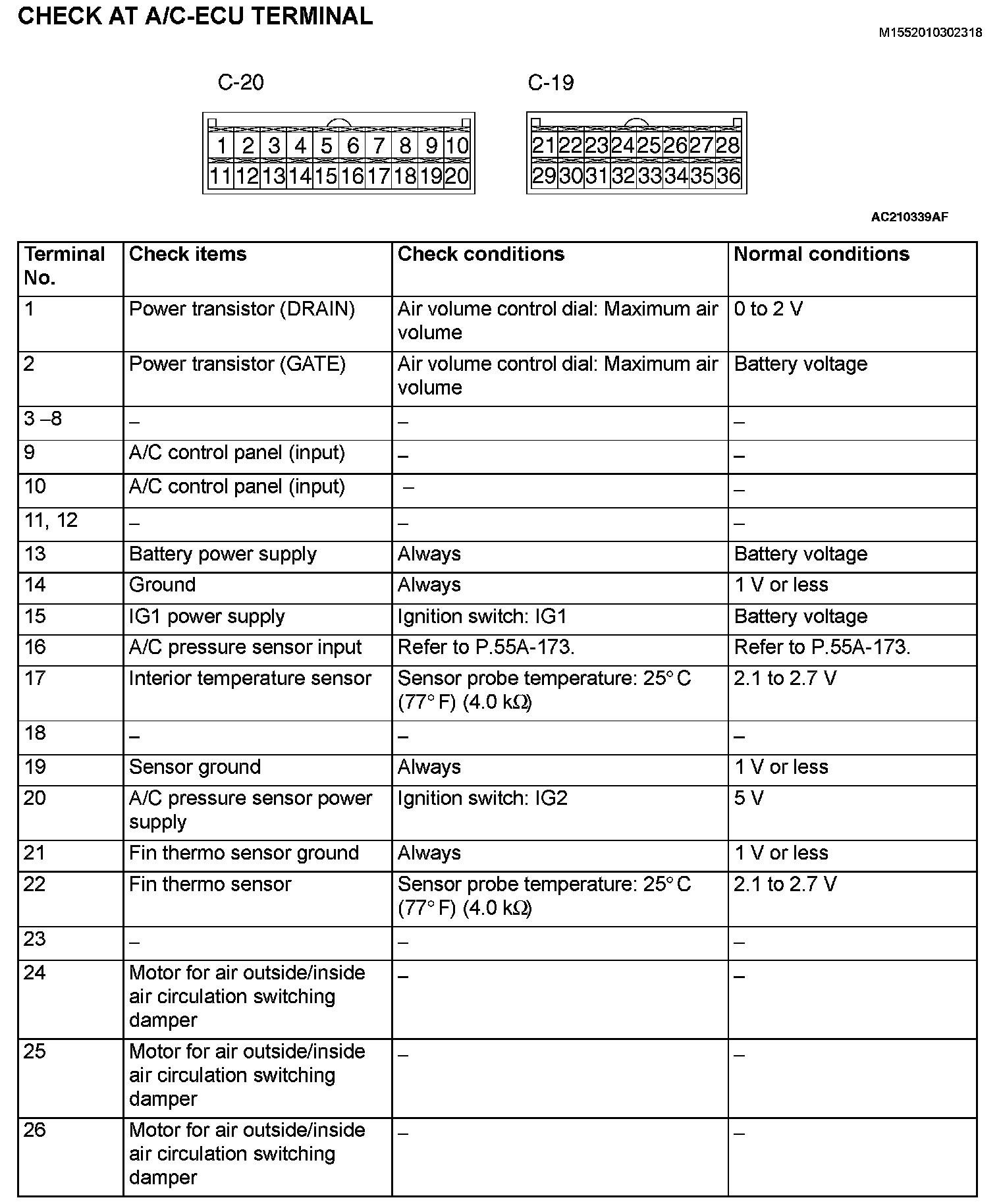

Check AT A/C-ECU Terminal (Part 1):




Check AT A/C-ECU Terminal (Part 2):
